Tane MTL BI-DIRTRACKMT, HIGHSECURITY TANE-96 BI LG HS
Product Details

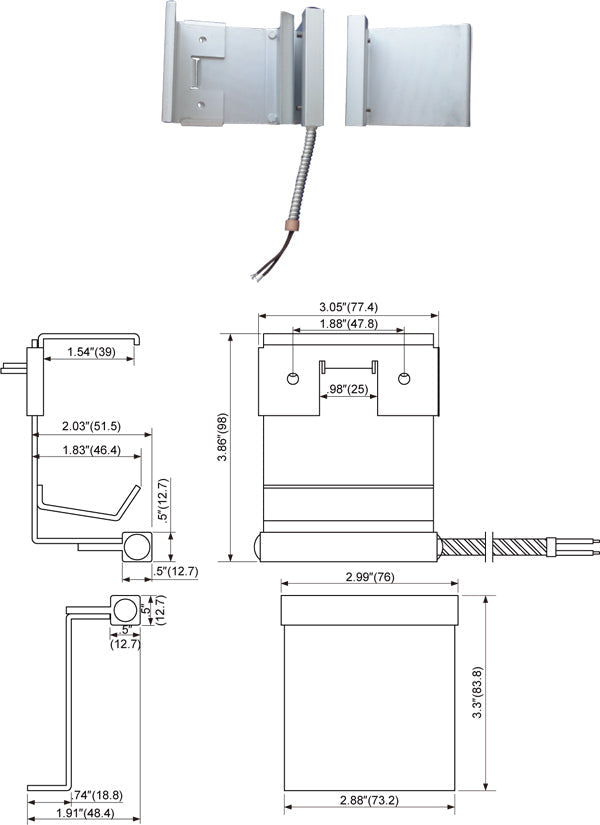

Bi-Directional Overhead Door-Track Mount Type For 2 1/2″ Residential or 3 1/2″ Commercial Rails
- Contact Size: 3.21″L×3.05″W×1.84″H
(81.6mm×77.4mm×46.75mm) - Standard Magnet Size: 3.5″L×3.96″W×1.65″H
(88.8mm×100.5mm×41.95mm) - Standard Gap: 2.5″(64mm)
- Colors: Aluminum Case
- 18″(458mm) Armored Leads Standard
- 36″(915mm) Armored Leads Available
Specifications
Part Number: TANE-96BI LG HS
Gap Inch: .39″~2.17″ (10~55)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 3
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): 30
Max. Switching Current (A): 0.2
