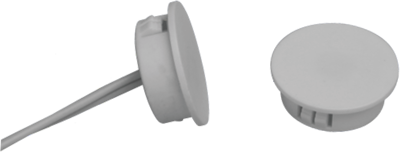

Tane Mini Disc Tight Fit Contact .59" X .25" MINI - DISC
Product Details
.59″(15mm) × .25″(6.3mm) Recessed Type
- Contact Size: .59″×.25″(18mm×6.3mm)
- Standard Magnet Size: .59″×.25″(18mm×6.3mm)
- Standard Gap: .31″(8mm)
- Colors: White, Brown
- 12″(305mm) 22 AWG Leads Standard
- Longer leads available.
Specifications
Part Number: MINI DISC
Gap Inch (mm): .31″(8)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 1
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC24/DC24
Max. Switching Current (A): 0.1
