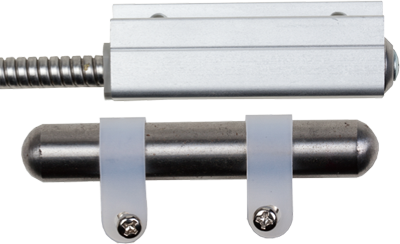

Tane Curtain Door Contact MET - CDS
Product Details
Bi – Directional Curtain Door Switch W/Reversible Mounting Assembly
- Contact Size: 2.68″L×.95″W×.54″H
(68mm×24.2mm×13.8mm) - Standard Magnet Size: 2.93″L×.5″W×.5″H
(74.5mm×12.6mm×12.6mm) - Standard Gap: 3.15″(80mm)
- Colors: NA
- 36″(915mm) Armor Cable Available
Specifications
Part Number: MET-CDS
Gap Inch (mm): 3.15″(80)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
