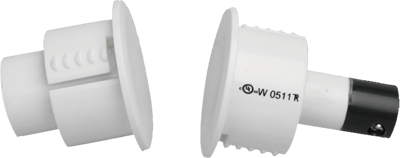

Tane Black, 3/4” Terminal Connect Recess Steel Door Recess 1.25” Gap TANE - 3/4 TC BK
Tane Black, 3/4” Terminal Connect Recess Steel Door Recess 1.25” Gap TANE - 3/4 TC BK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Tane Black, 3/4” Terminal Connect Recess Steel Door Recess 1.25” Gap TANE - 3/4 TC BK
Product Details
.76″(19.3mm) Recessed Type W/Terminal Quick-Connect
- Contact Size: .76″×1.18″(19.3mm×30mm)
- Standard Magnet Size: .76″×.85″(19.3mm×21.5mm)
- Standard Gap: 1.1″(28mm)
- Colors: White, Brown, Black
Specifications
Part Number: TANE-3/4 TC
Gap Inch (mm): 1.1″(28)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
