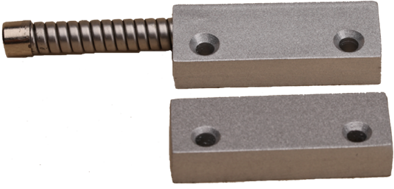

Tane Aluminum 2” surface mount with armored cable MET - 200 AR
Product Details
MET-202C AR-WP18 (Water Resistant – SPDT)
2″L×.74″W×.37″H Surface Mount Armored Commercial Type W/Wire Leads or Armored Cable
- Contact Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm) - Standard Magnet Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm) - Standard Gap: 1.25″(32mm)
- Colors: Aluminum Case
- 18″(458mm) Armor Cable Standard (MET-200AR)
- 36″(915mm) Armor Cable Available (MET-200AR 36”)
- 12″(305mm) 22AWG Leads Standard (MET-200)
Specifications
Part Number: MET-200 AR
Gap Inch (mm): 1.25″(32)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
