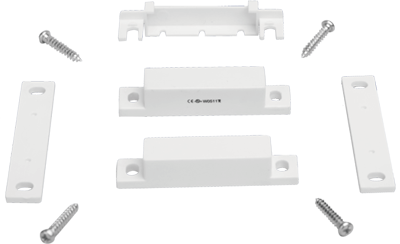

Tane (39 style) w/ 2 spacers, cover, 4 screws SM - 35
Product Details
2.48″L×.48″W×.51″H Surface Mount Quick Connect-W/Spacers Screws Covers
- Contact Size: 2.48″L×.48″W×.51″H
(63mm×12.2mm×13mm) - Standard Magnet Size: 2.48″L×.48″W×.51″H
(63mm×12.2mm×13mm) - Standard Gap: .91″(23mm)
- Colors: White, Brown, Gray
- Resistors Available: Add “R” to part # and Value
Specifications
Part Number: SM-35
Gap Inch (mm): .91″(23)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
