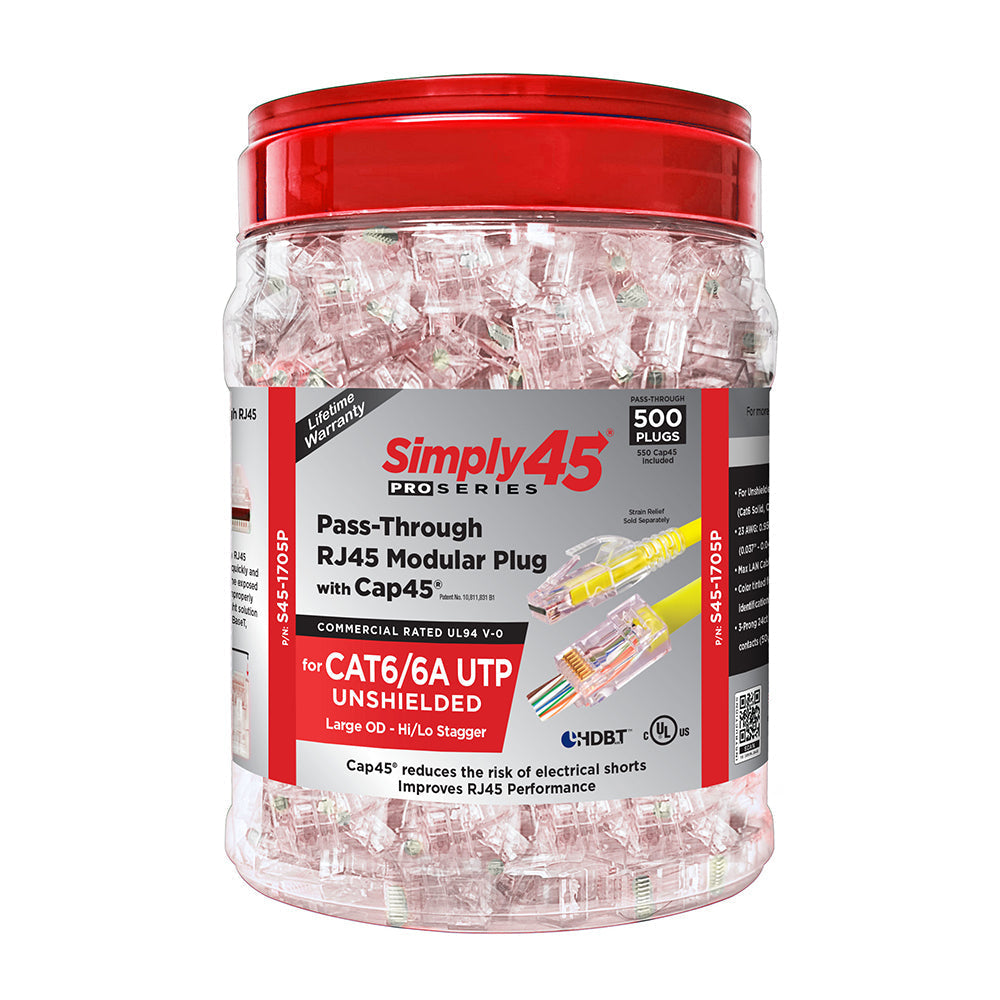

Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 500 pc/Jar
Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 500 pc/Jar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 M...
Highlight title
Text to highlight a key feature of your product
Description
Description
Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 500 pc/Jar
Product Details

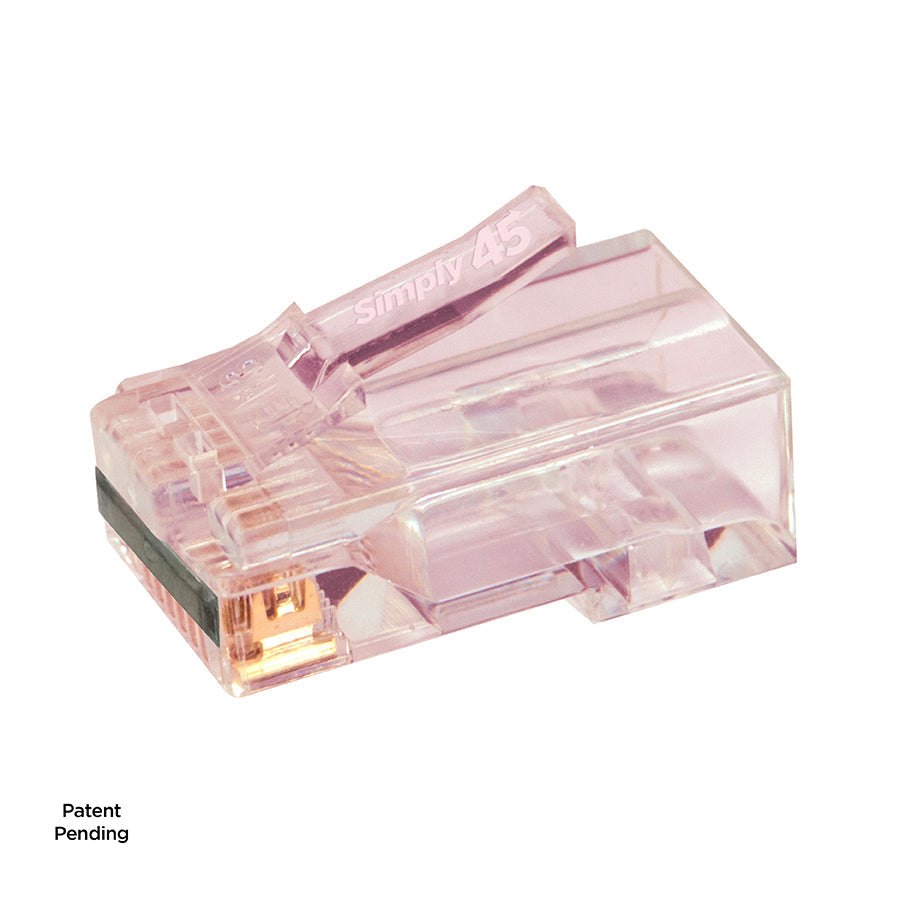

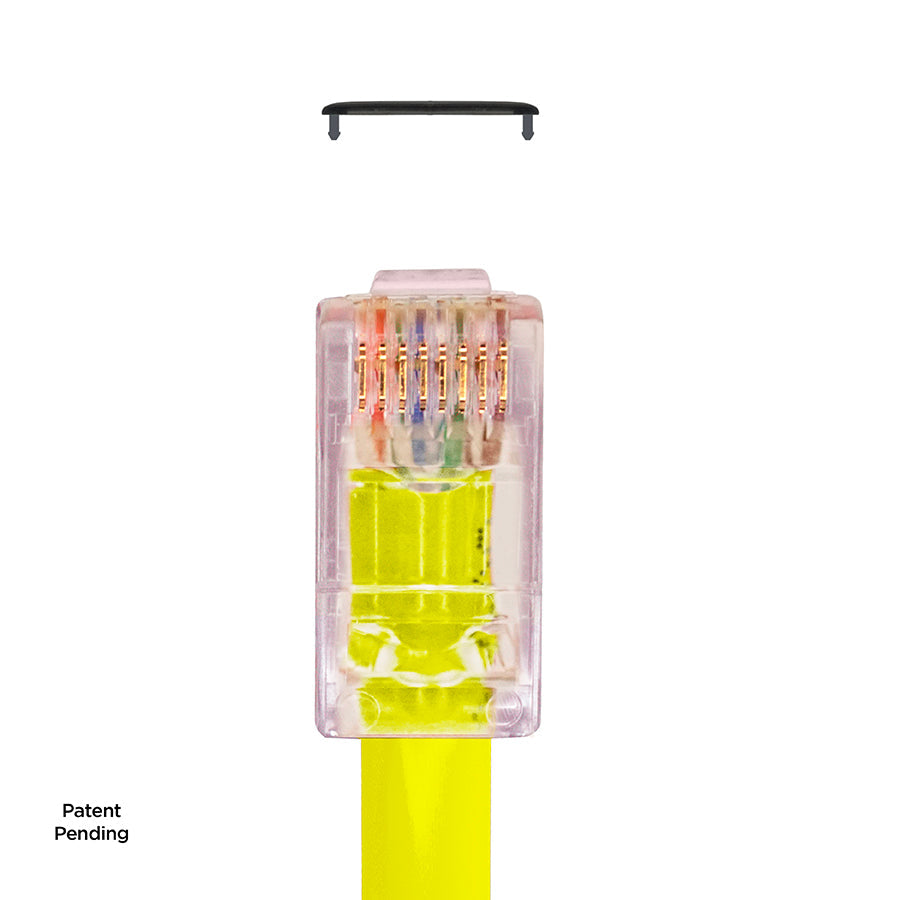

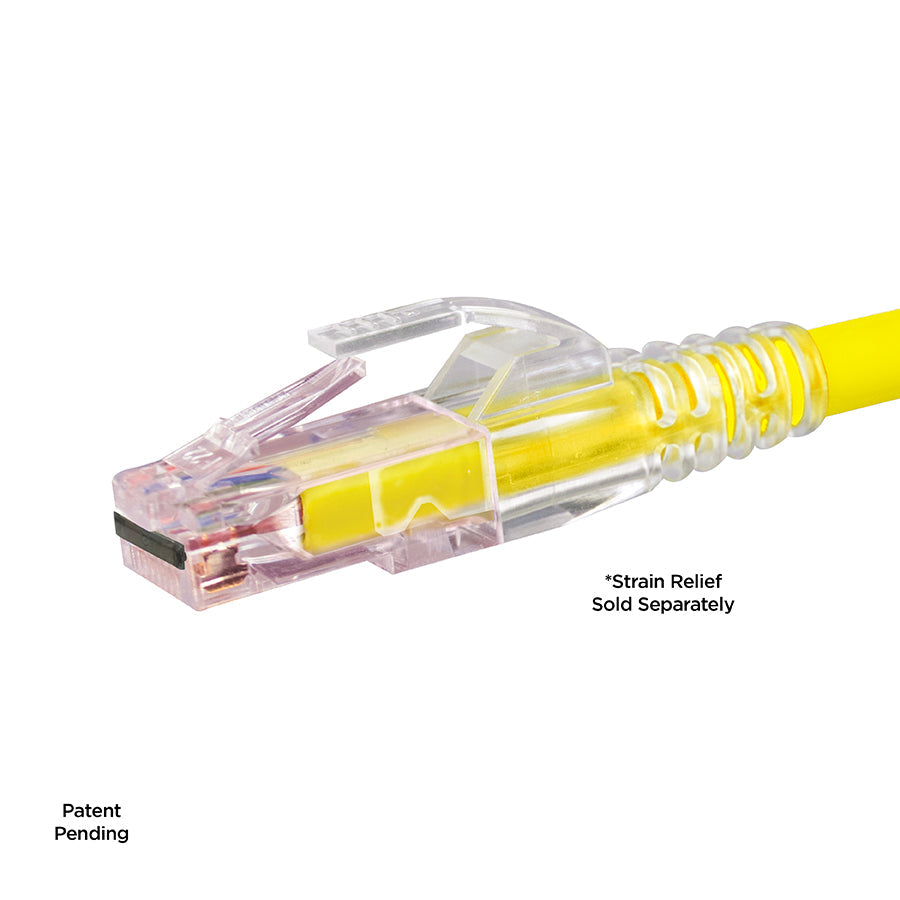

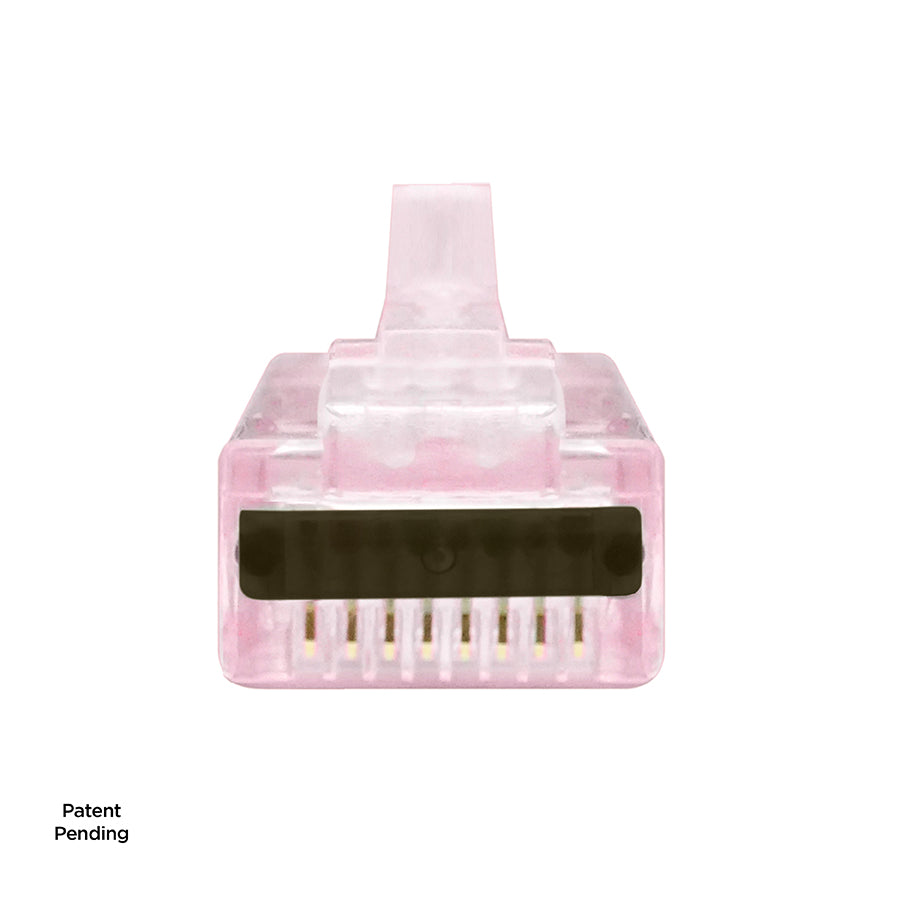

Simply45® ProSeries hybrid connectors feature patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.
Specifications
| Category Type | Cat6/6a |
| Connector Style | Pass-Through with Cap45 |
| Wire Alignment | Hi/Lo Stagger |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 1.05mm - 1.20mm (0.041″-0.047") |
| Max Cable OD | 7.4mm (0.291″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Red Tint |
| Patent Number | 10,811,831 B1, 9,543,729; 10,116,082; 10,573,990; 11,146,014 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 500 pieces |
| Cap45 Quantity | 550 pieces |
Features
- Single Piece Plug
- High/Low Staggered Wire Insert

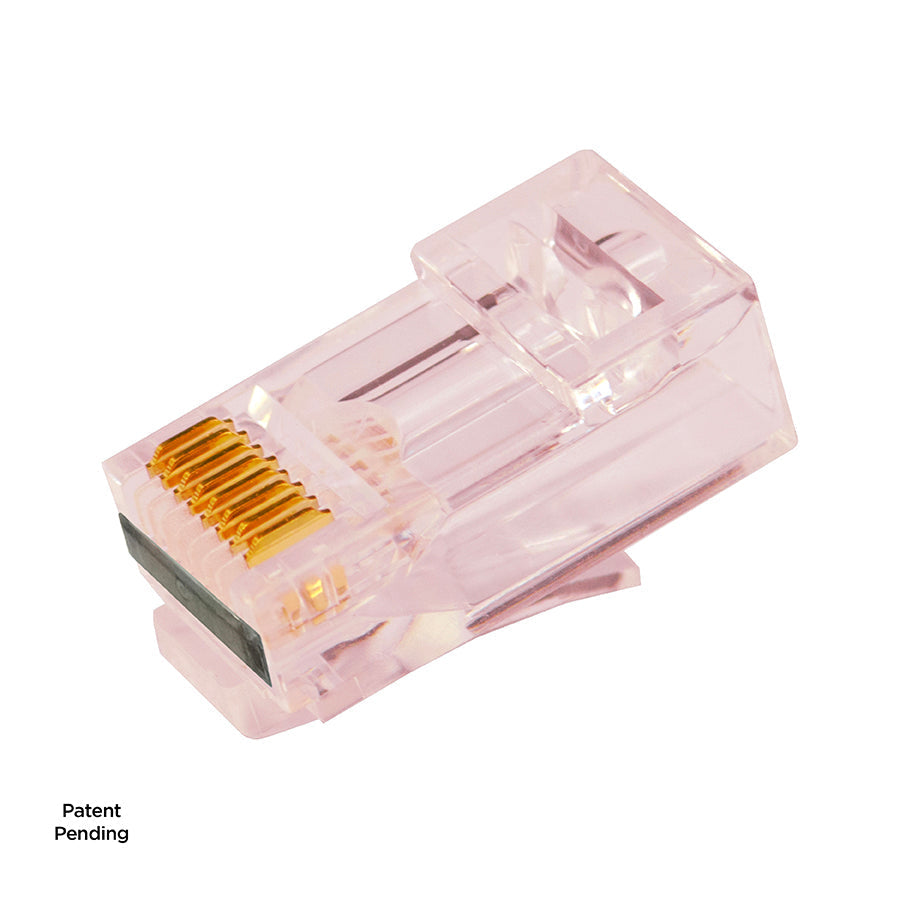

- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Improved Crosstalk Performance
- Commercial Rated
- Color-Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
