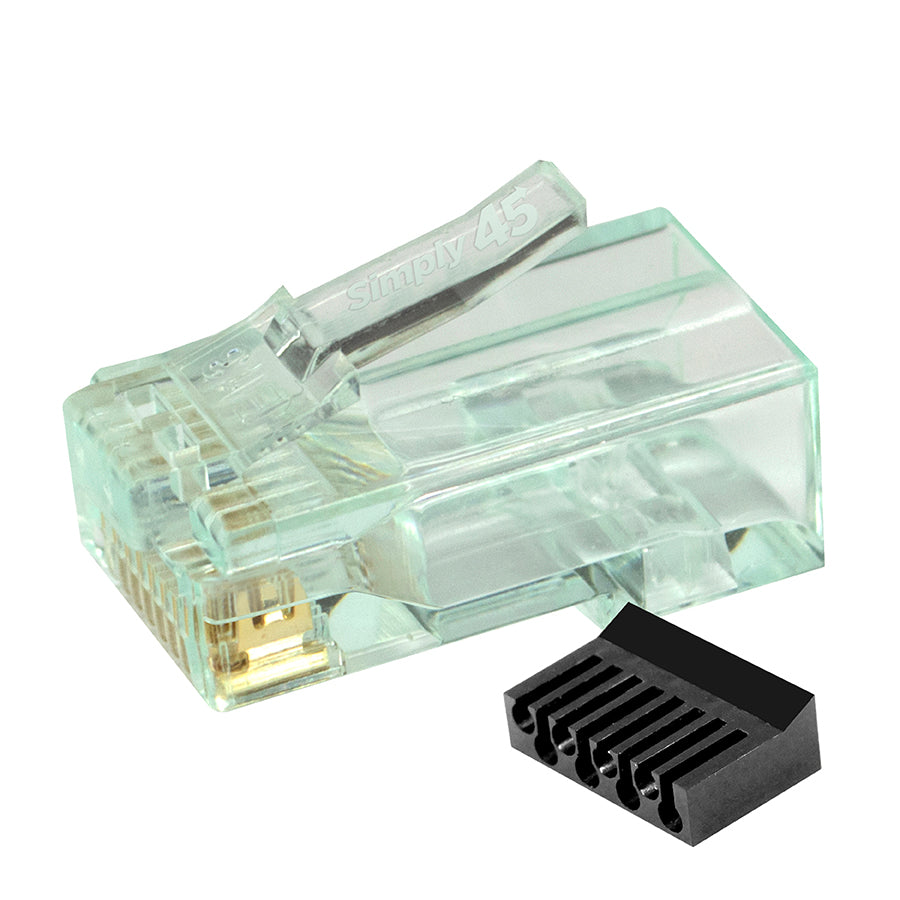

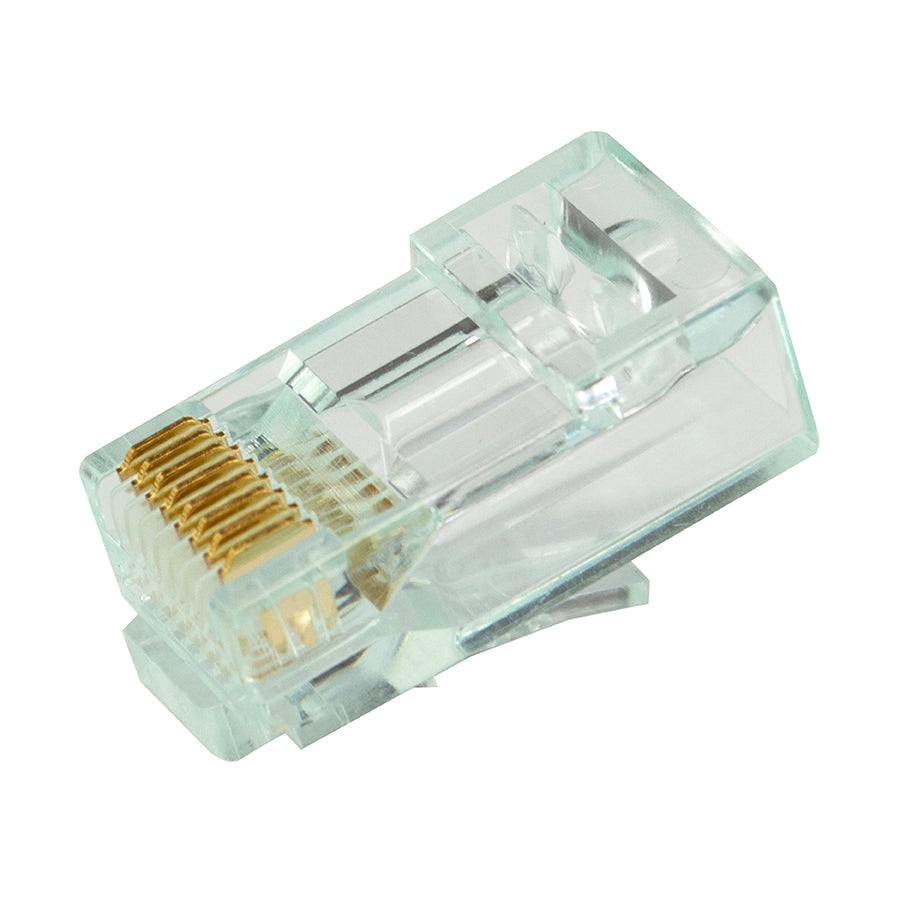

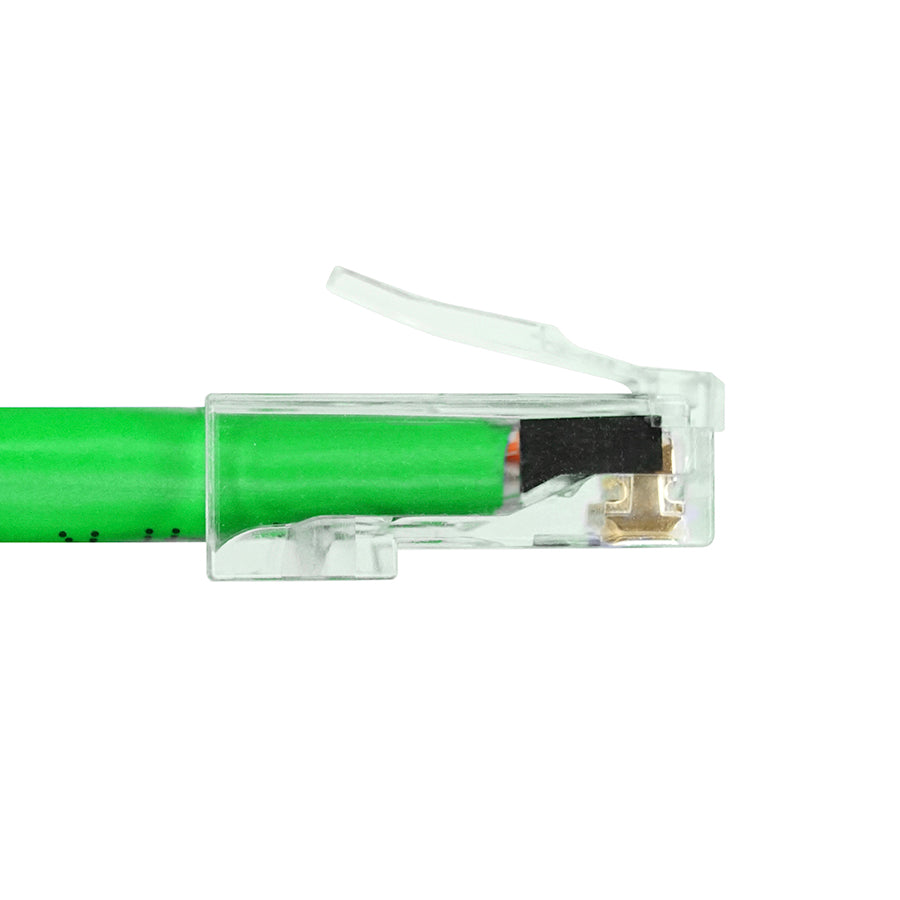

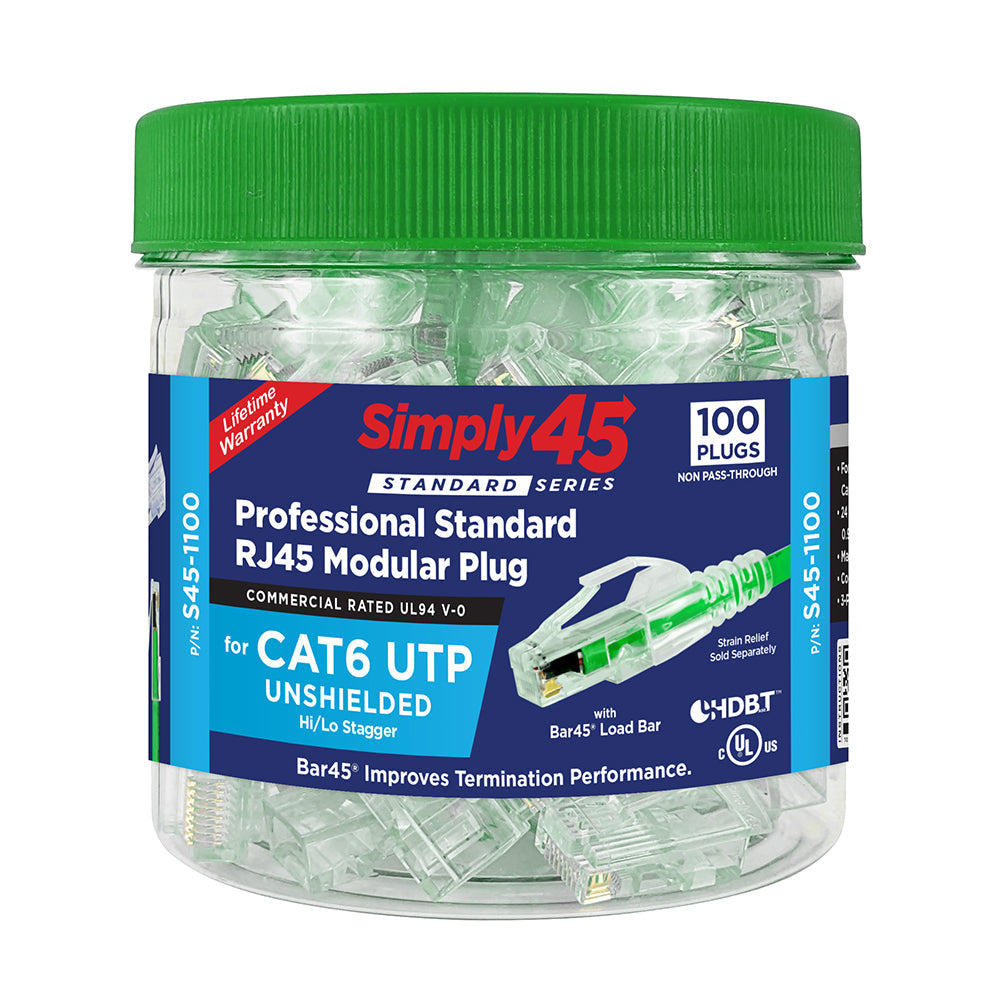

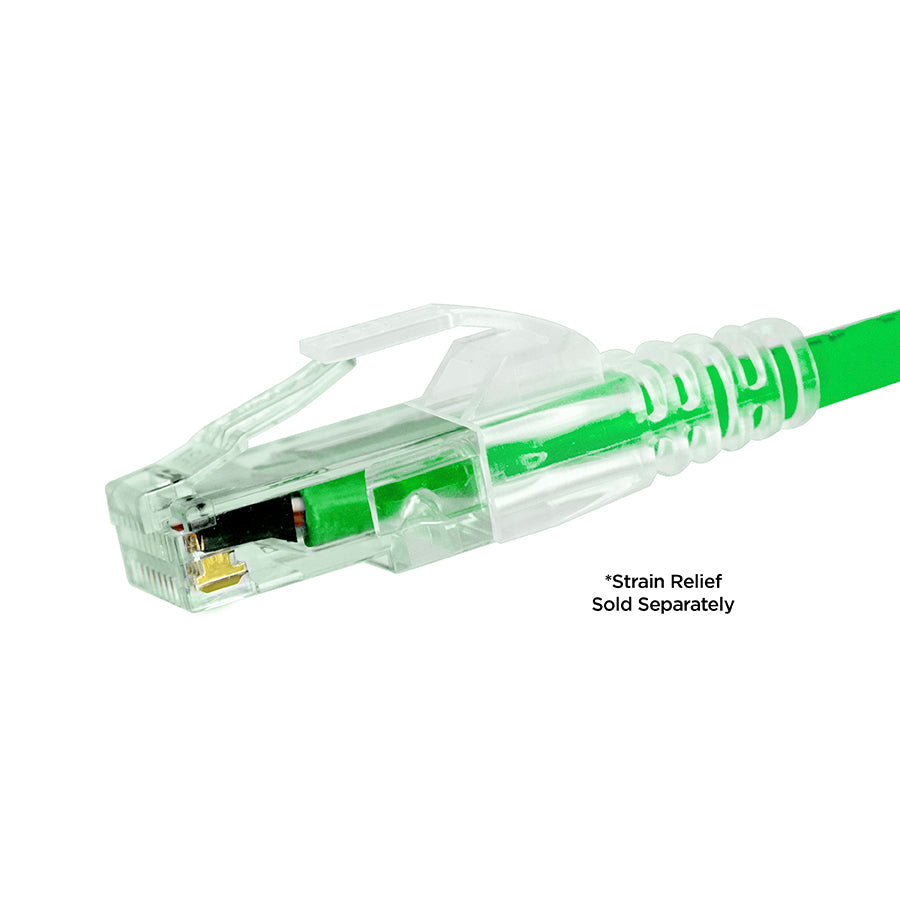

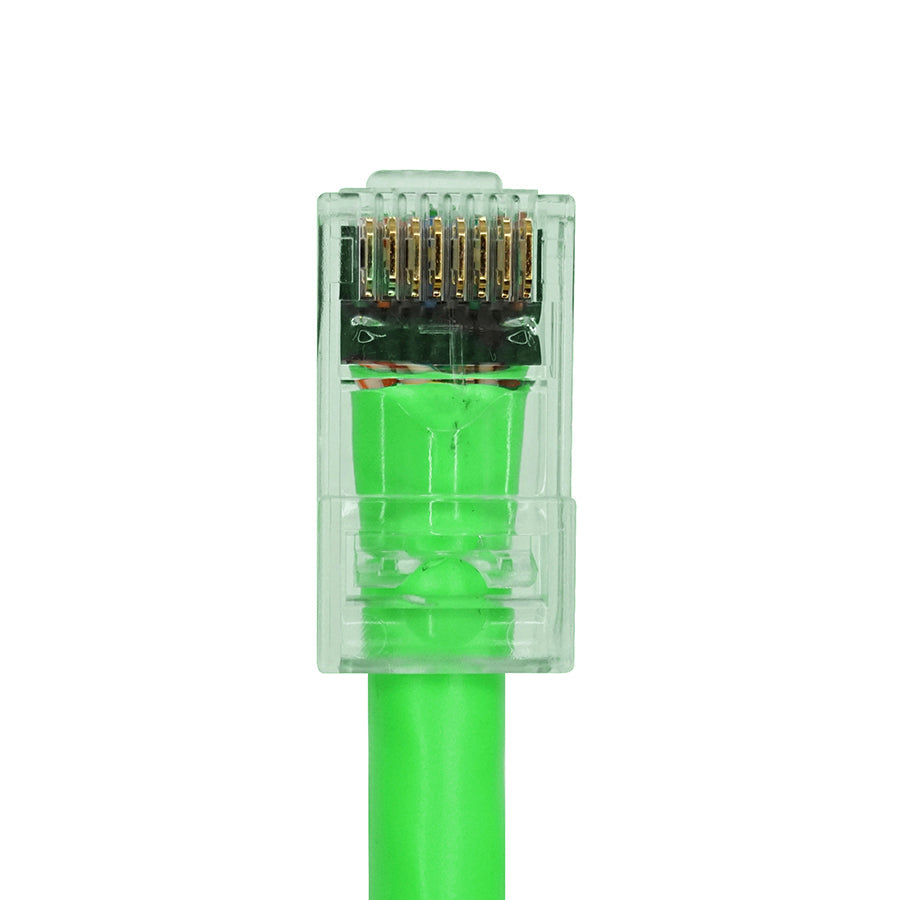

Simply45 S45-1100 Standard Cat6/6a UTP RJ45 Modular Plugs with Bar45™ Hi/Lo Stagger, Green Tint - 100pcs/Jar
Product Details
Simply45 Standard Series connectors feature our reengineered connector designed for the technology used today. Simply45 only uses the highest quality materials to ensure reliable results that greatly reduce truck roll backs. Our connectors are commercial rated and feature a 3 prong style contact designed for all PoE application making Simply45 the most reliable RJ45 termination on the market today.
Specifications
| Category Type | Cat6 |
| Connector Style | Standard Mod Plug |
| Wire Alignment | Straight Insert, Under the Contact Load Bar |
| Cable Type | UTP |
| AWG | 23AWG Solid, 26-24AWG Stranded |
| Conductor Range | 1.05-1.17mm (0.041″-0.046″) |
| Max Cable OD | 7.4mm (0.291″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Green Tint |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 100 pieces |
Features
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
