Simplified TXIWKT HDMI 2.0b (18Gbps) In wall extender kit, with USB-C

Product Details

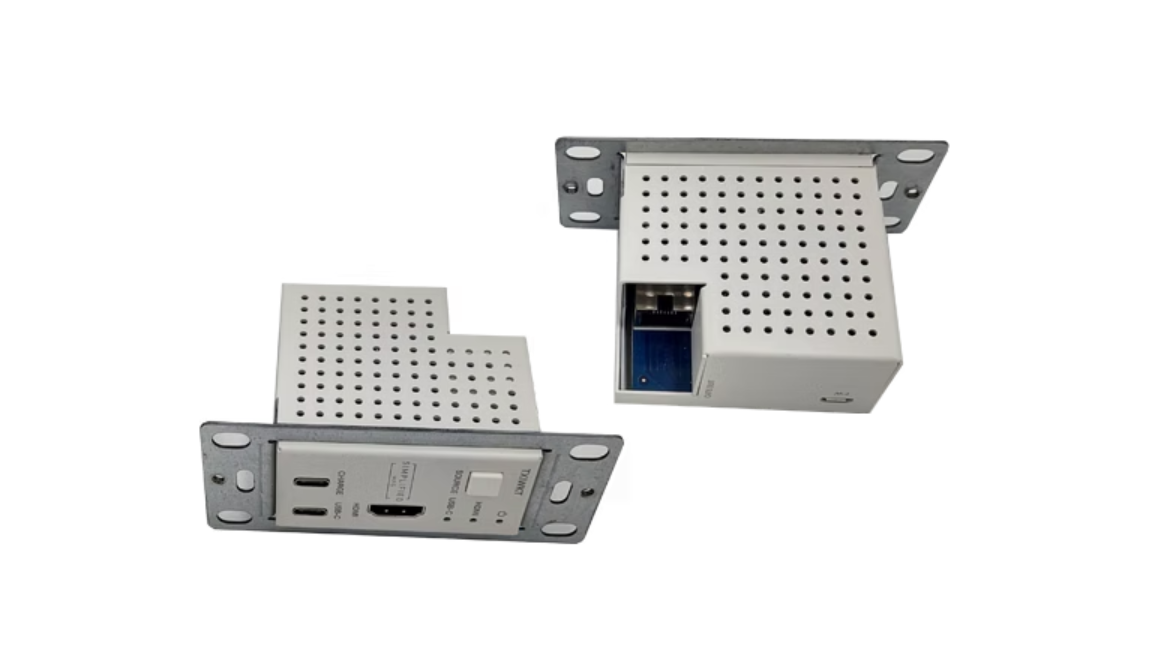

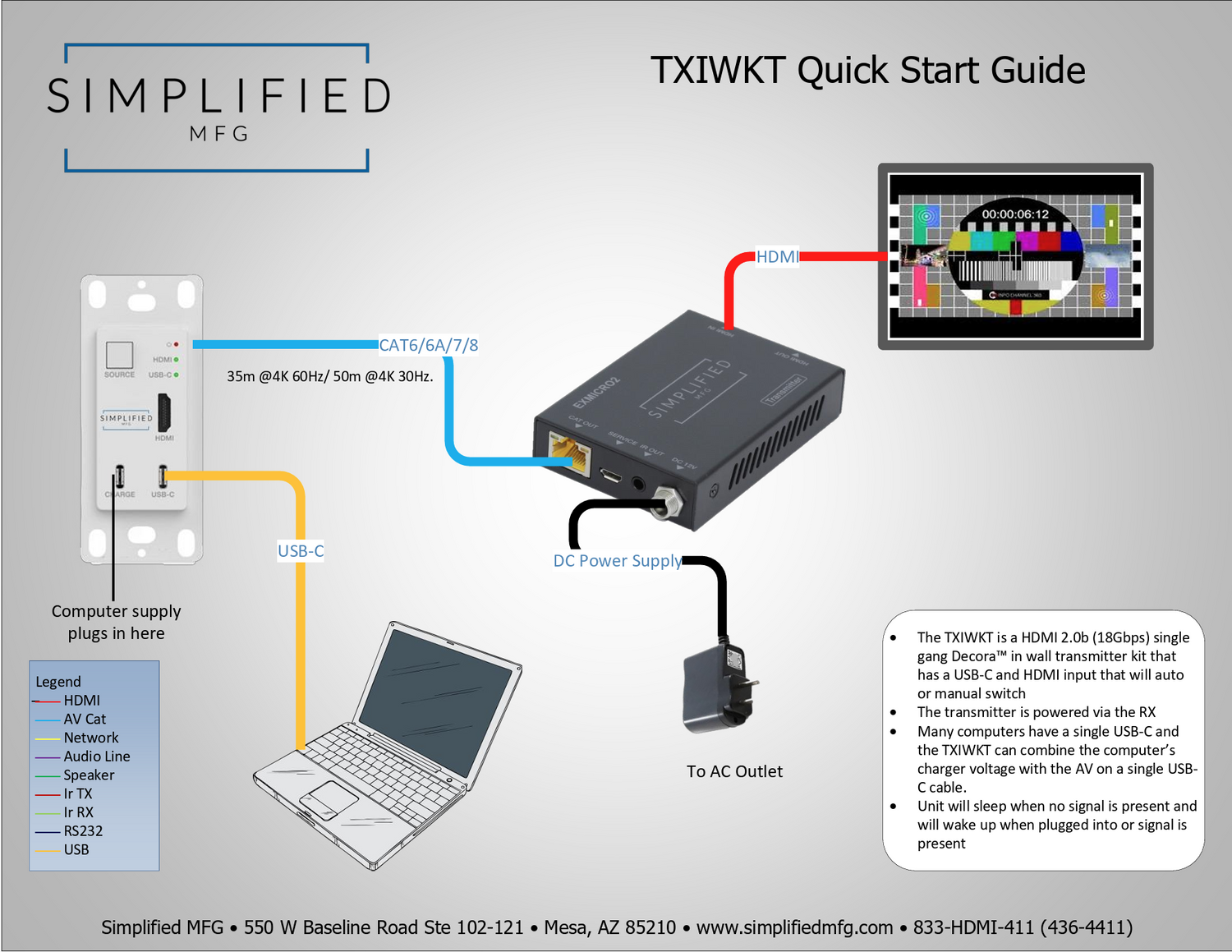

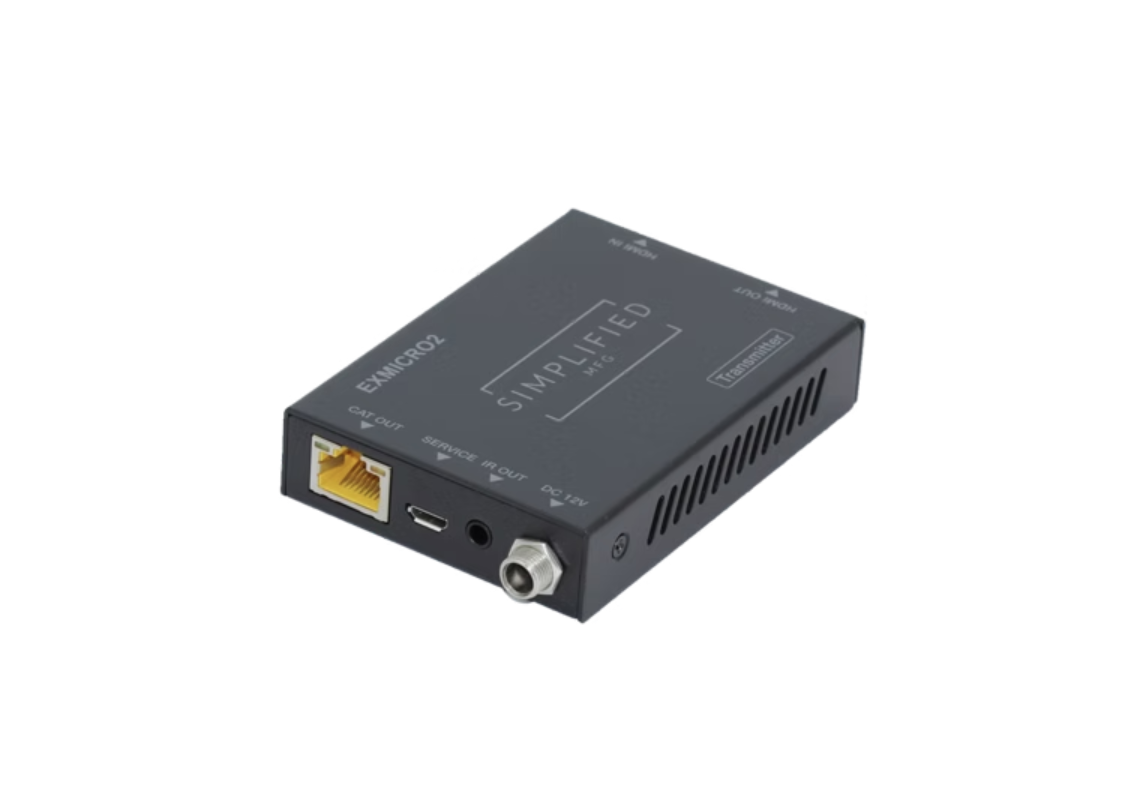

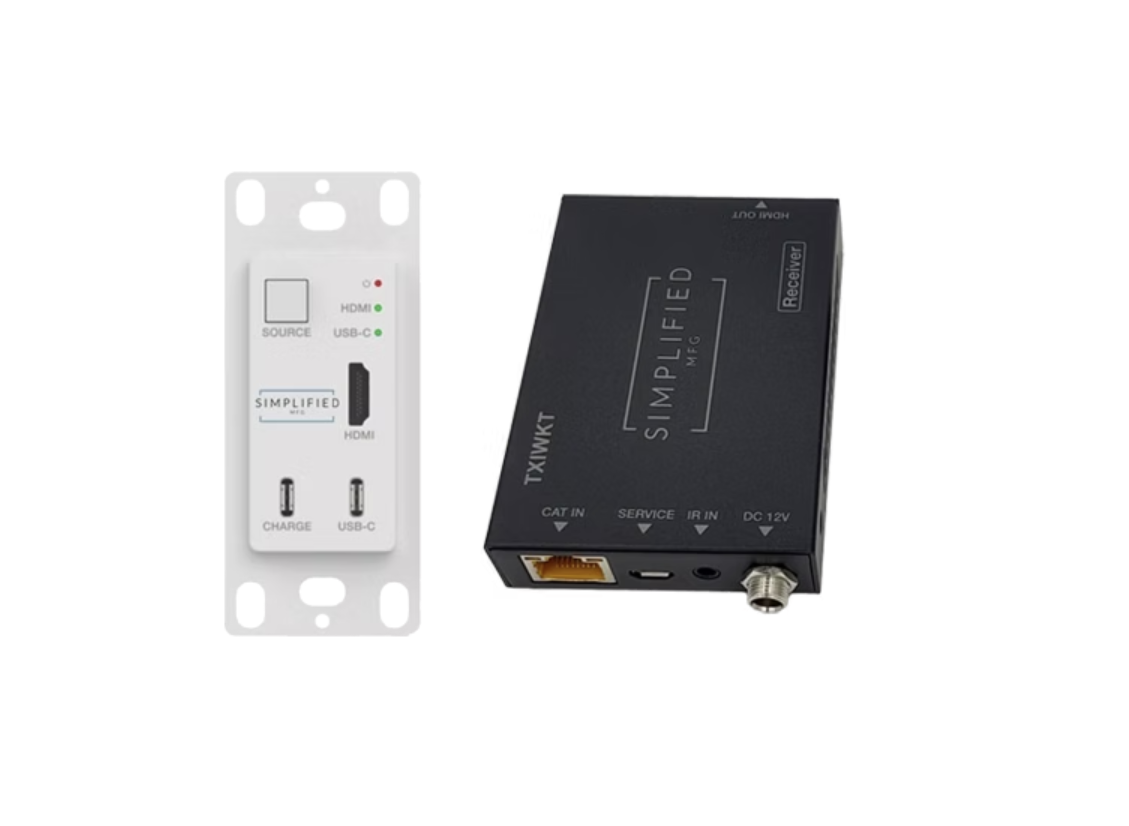

The TXIWKT is a kit consisting of a single-gang Decora wall plate with a small footprint RX. Technology used in the TXIWKT is about 3 times more efficient than the typical extender. This means less heat, less energy used, and greater reliability. The TXIWKT has an HDMI Type-A input as well as a USB-C input. There is also a USB-C charging port. You simply connect your laptop power supply to the USB-C charge port, and the power is then passed through the AV connection while presenting, back to your laptop or tablet. A button on the front of the TX allows the individual sources to be selected. The RX powers the TX device. HDMI 2.0b is supported at @60Hz for 35m/115ft. and at 30Hz, up to 50m/164ft.

Perfect for K-12, higher ed, board room, podiums, and other applications where an HDMI port needs to be accessed.

*Cat5e may be used, but some loss of distance may occur.

Features

• HDMI 2.0b (18Gbps)

• HDCP 2.2, HDCP 1.4 and DVI compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• HDR10+ Support

• No CEC pass thru for issue free integration

• In wall powers from credit card footprint sized RX

• HDMI and USB-C inputs

• Sources can be chosen with button on front plate.

• Single Gang Decora™ Stays cool as this kit uses very efficient technology to stop over heating issues.

• Supports all high-definition audio formats including Dolby+/Atmos.

• 3 Year Warranty
