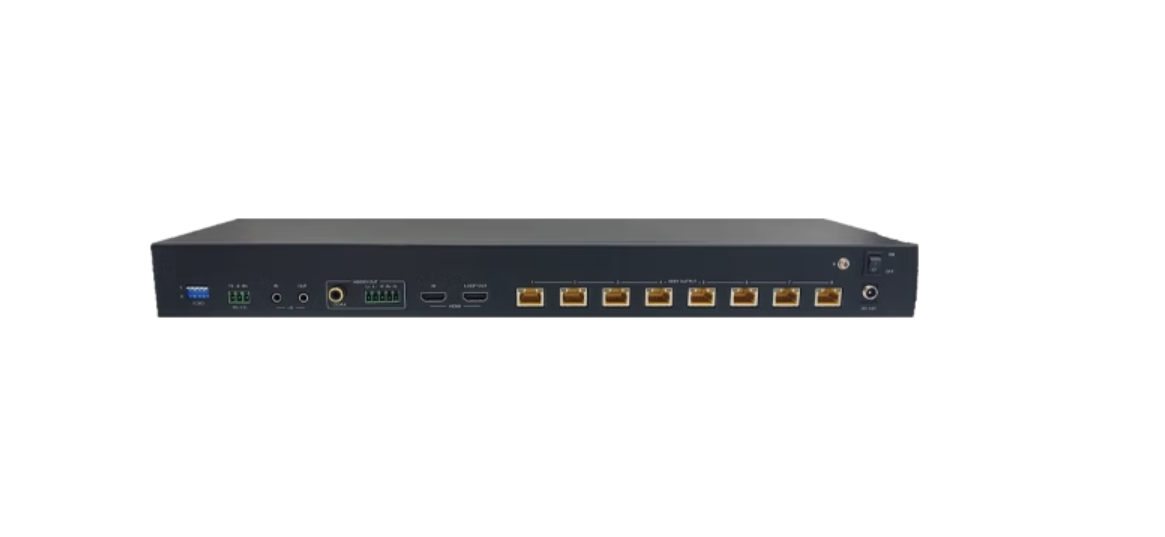

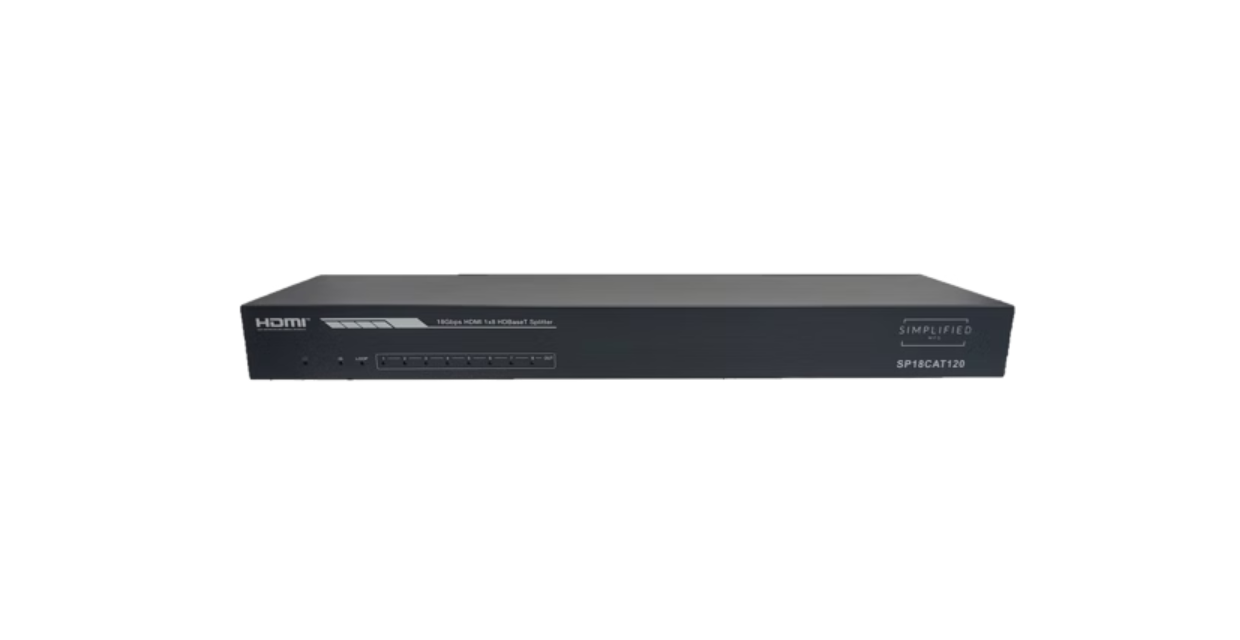

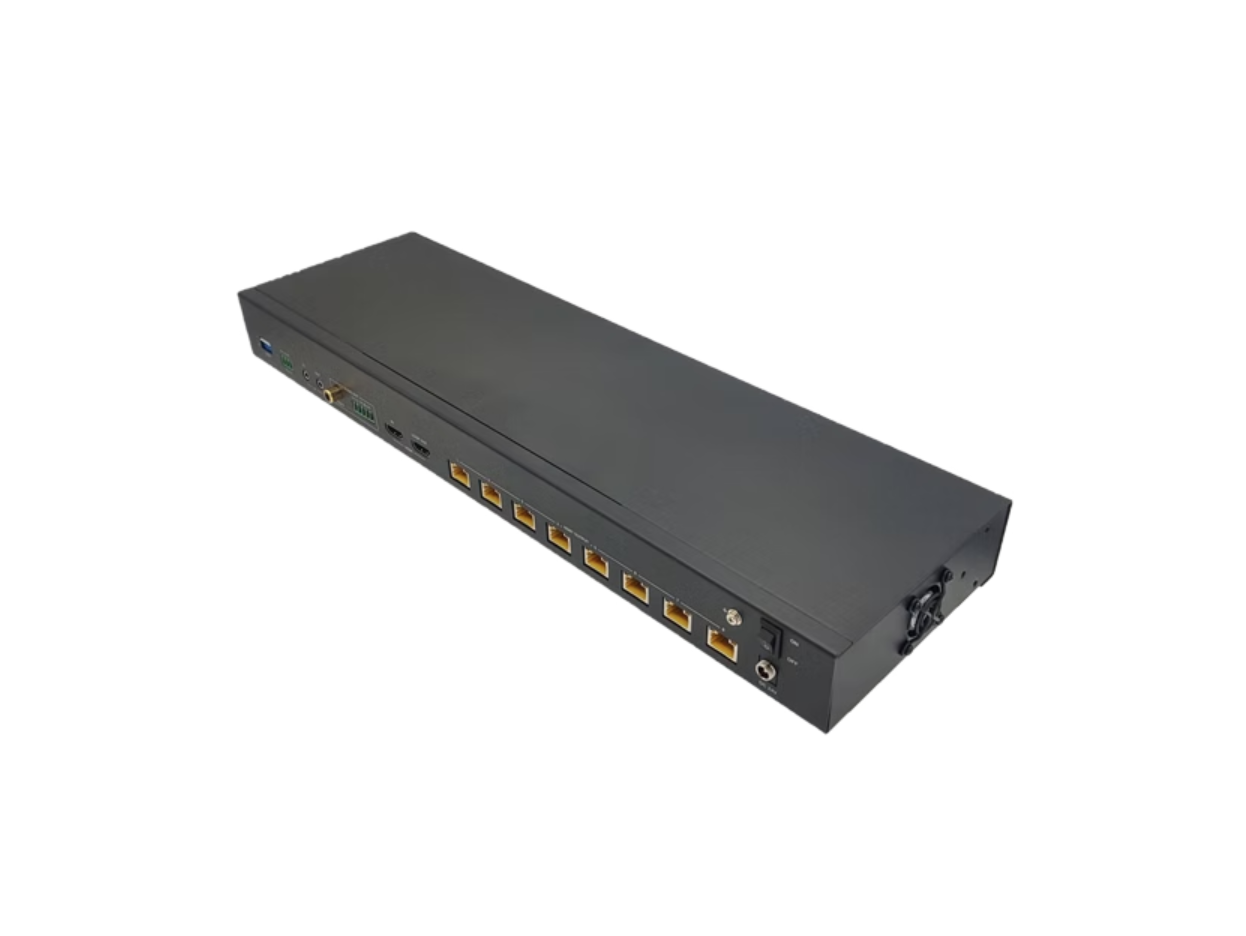

Simplified SP18CAT120T 120m HDMI 2.0b (18gbps) 1x8 HDMI Splitter over Cat6A/6* Cable

Product Details

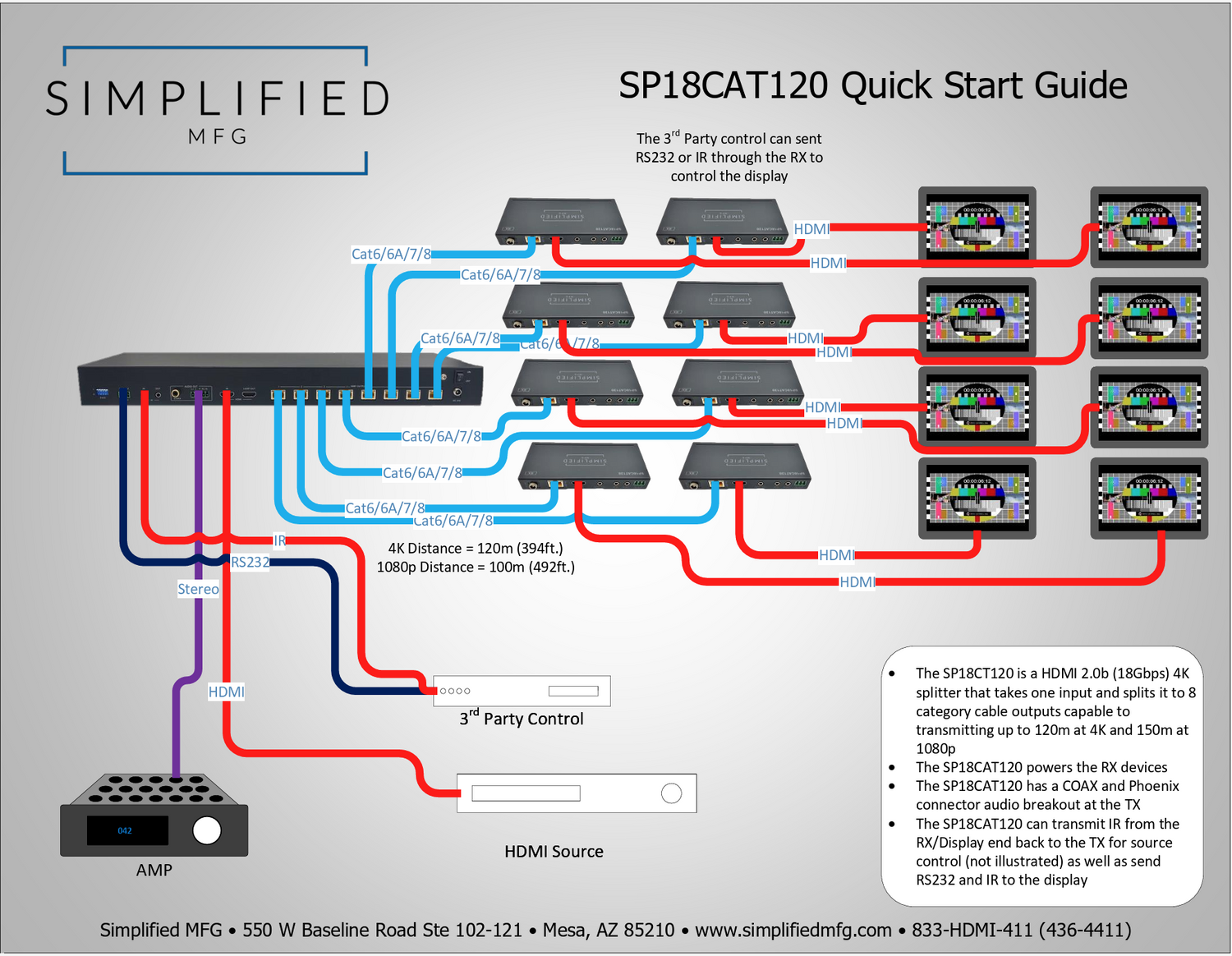

The SP18CAT120T is 1 by 8 HDMI 2.0b (18gbps) 4K/UHD Splitter over category cable with HDCP 2.2/1.4 The SP18CAT120T is a solution for splitting a single HDMI input to eight long distance outputs. This device is based on the EX1L and has the same long distance capabilities (120m/394ft. at 18Gbps 4K and 150m/492ft. at 1080p). The RX devices are sold seperately in packs of 4 or one (SLRX-4 and SLRX-1). EDID can be preset to copy or use one of the several preloaded EDID files. The long distance versus the cost makes this a unique solution and very cost effective over versus AV over IP solutions.

Primary Use: Digital signage, Hospitality, and Houses of worship.

*Cat5e may be used, but some loss of distance may occur.

*The RX units, SLRX-1 or SLRX-4, are sold separately.

Features

• HDMI 2.0b (18Gbps)

• HDCP 2.2, HDCP 1.4 and DVI compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• HDR10+ and DolbyVision™ Support

• Supports longer distances (120m/394ft. at 4K/UHD and 150m/492ft. at 1080p

• EDID management

• Can be controlled via RS-232

• Supports CEC Pass-thru

• HDMI loop out at TX

• Optional RX devices (SLRX-4/SLRX-1) are powered by the SP18CAT120T

• Audio breakout, Coax S/PDIF and 5 pin Phoenix on SP18CAT120T and optical S/PDIF and 3.5mm mini-jack on RX.

• One IR port on SP18CAT10T will sent to all connected RX devices

• One IR receive port on SP18CAT120T receives IR signals from all RX devices

• Transfer Bidirectional RS232 control signal together with the HDMI signal

• Supports all high-definition audio formats including Dolby+/Atmos.

• 3-Year warranty
