Simplified RM44C 4x4 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch
Simplified RM44C 4x4 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details

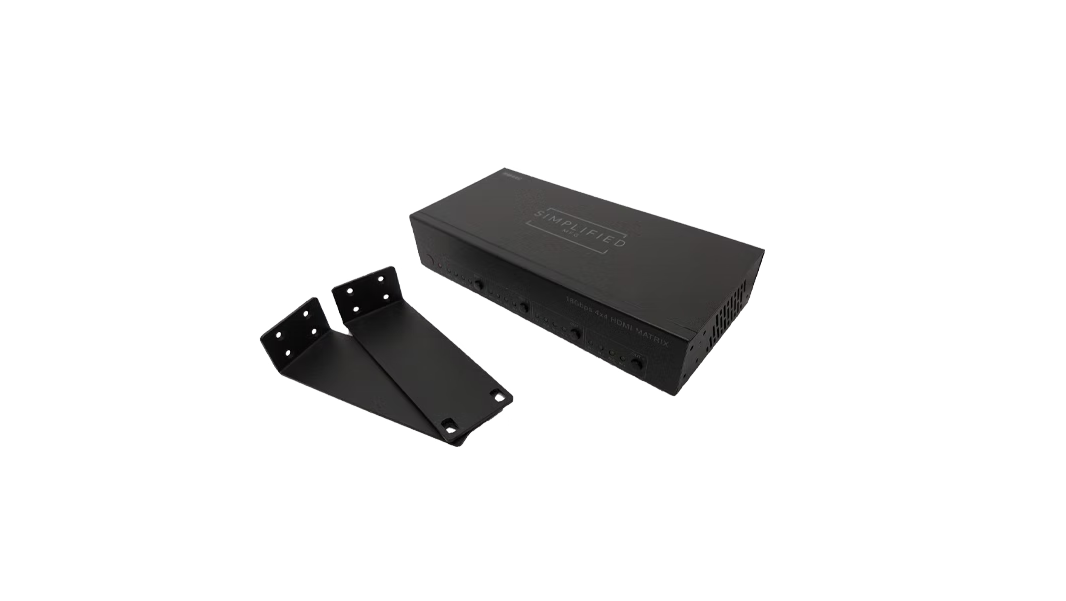

The RM44C is a sub 1 RU HDMI Matrix switch that features four HDMI inputs and four HDMI outputs. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM44C will also pass HDR High Dynamic Range information as well (8, 10, 10+, DolbyVision™). Each output has scaling options for easier integration of unlike displays. In addition, there is a CEC control feature allowing the matrix to turn on the displays. Features are adjustable in the Web GUI with both Admin and User login settings. 1 RU mounting kit is included.
Features
• HDMI2.0, HDCP2.2/HDCP1.4 compliant
• Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
• Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
• Innovative web GUI
• ARC can be routed to S/PDIF outputs
• Scaling outputs makes integrating 1080p and 4K displays easy
• Supports HDR10+/DolbyVision™
• Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
• Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output
• Smart EDID management
• Control of the RM44C can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)
• 3 Year Warranty
