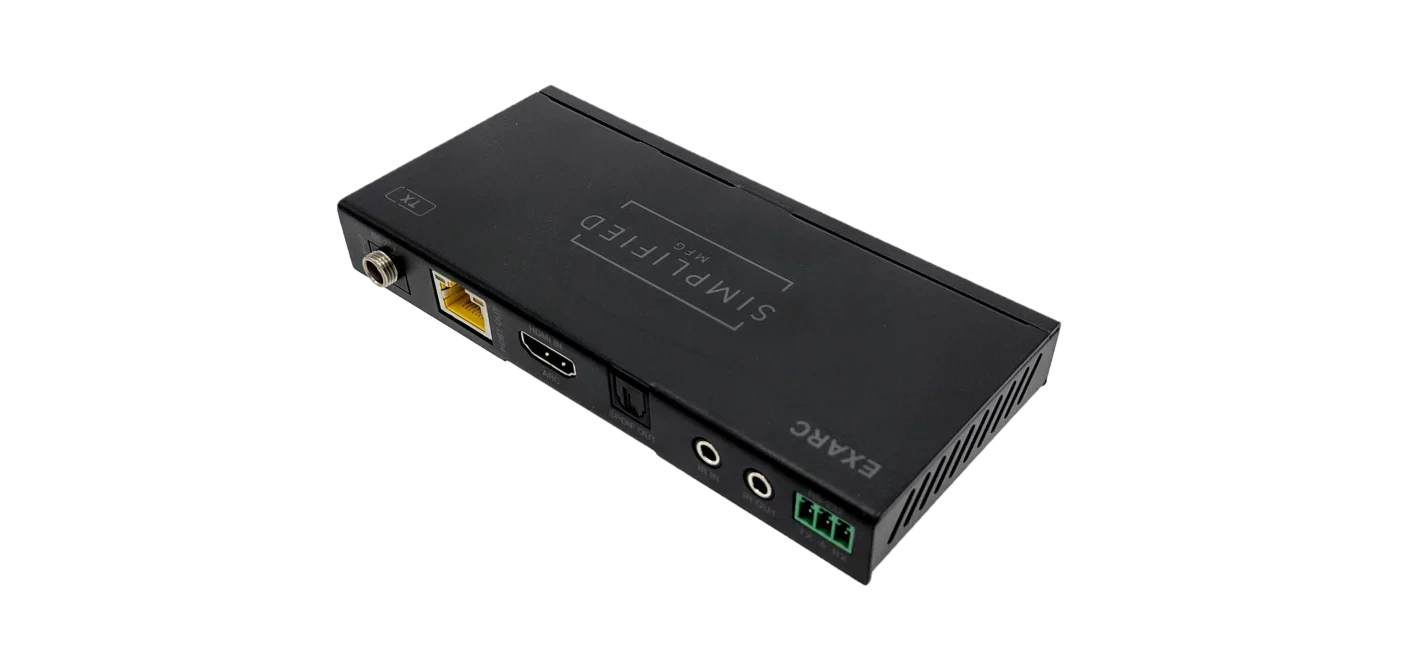

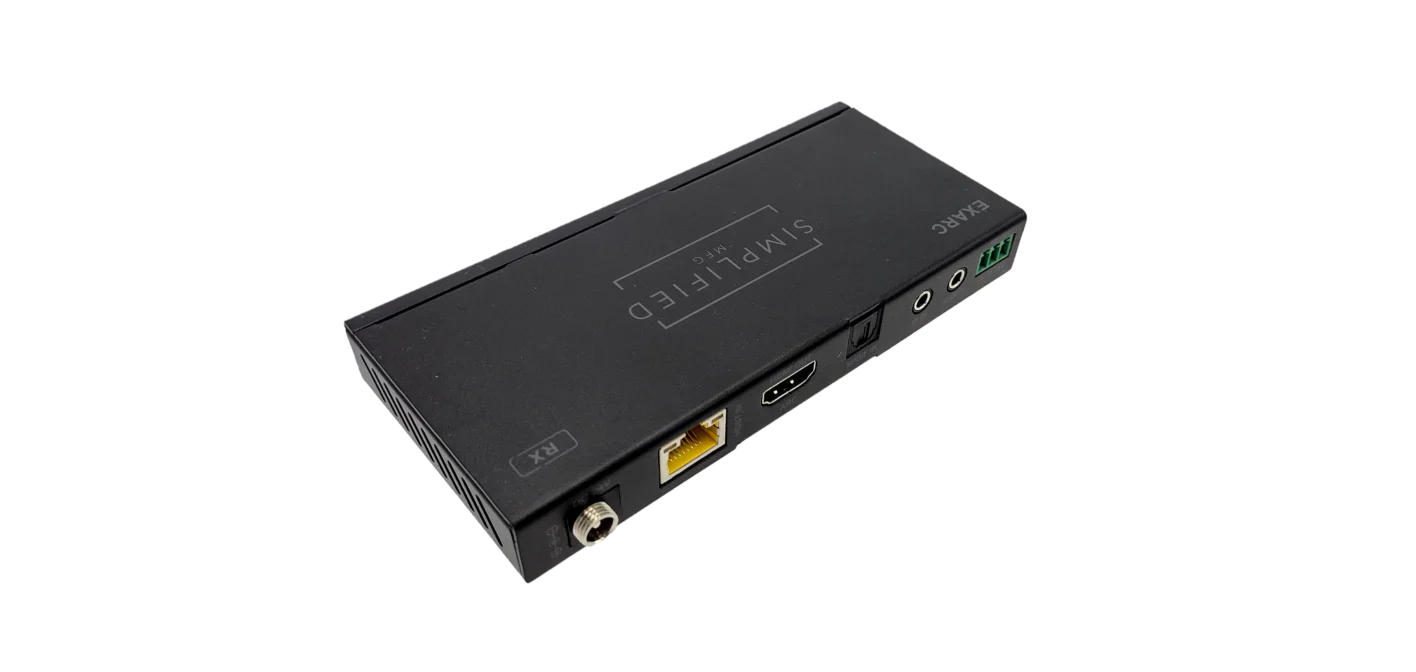

Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender
Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

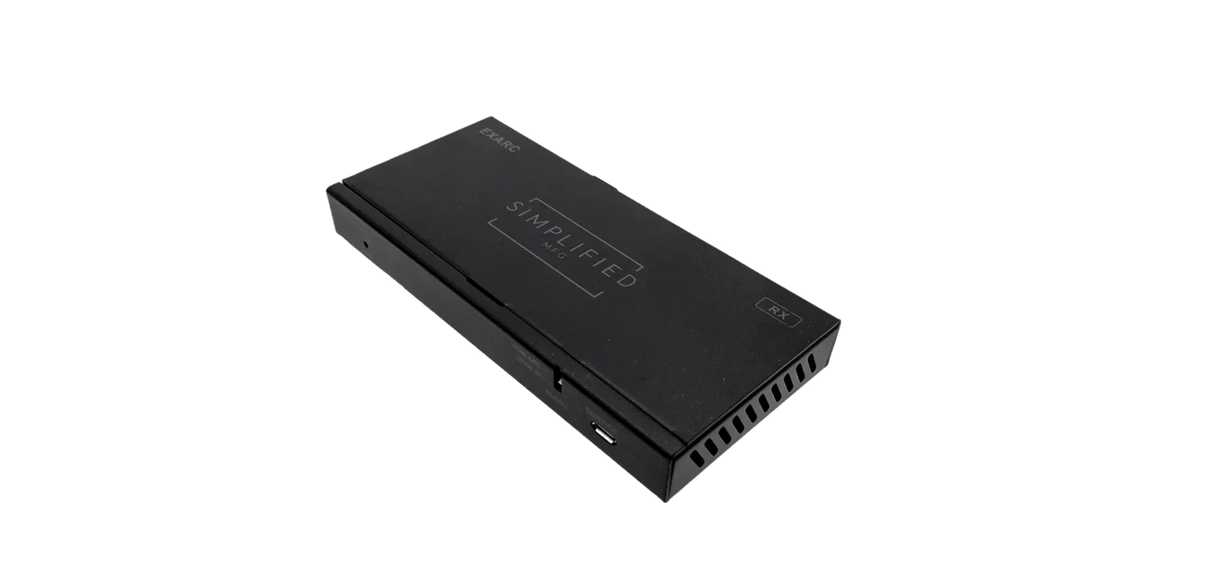

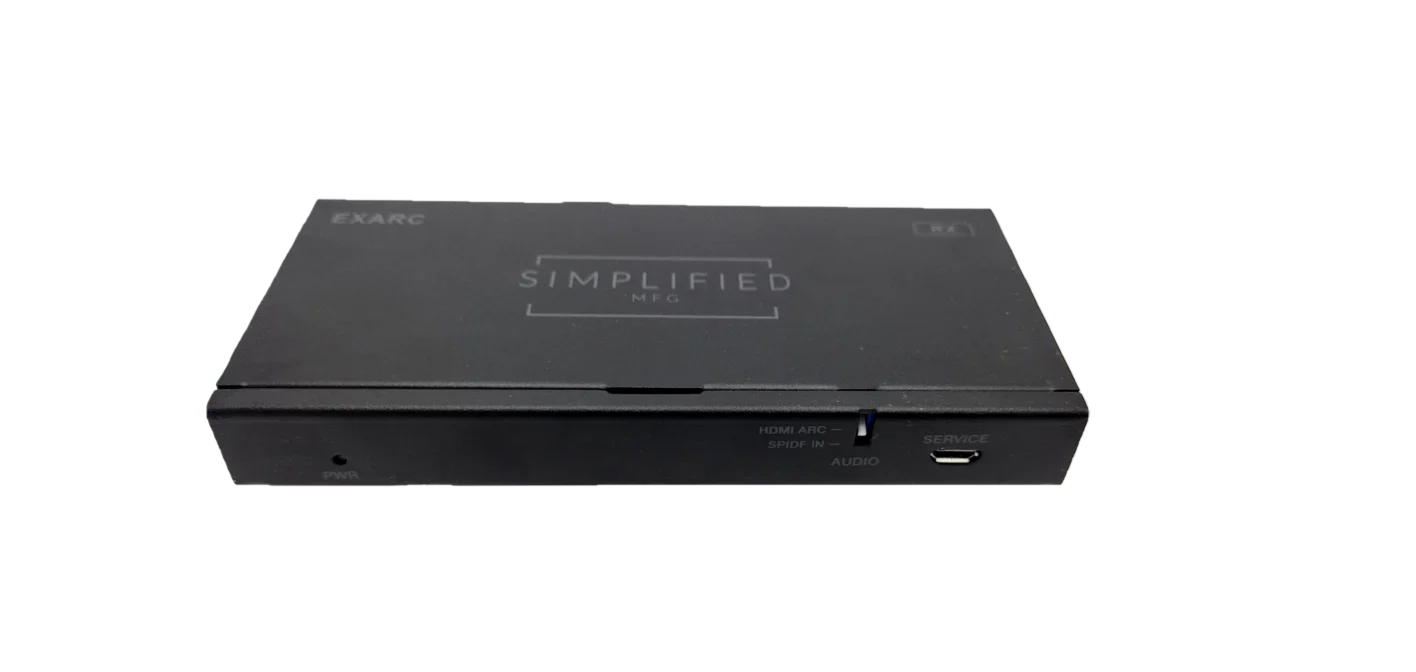

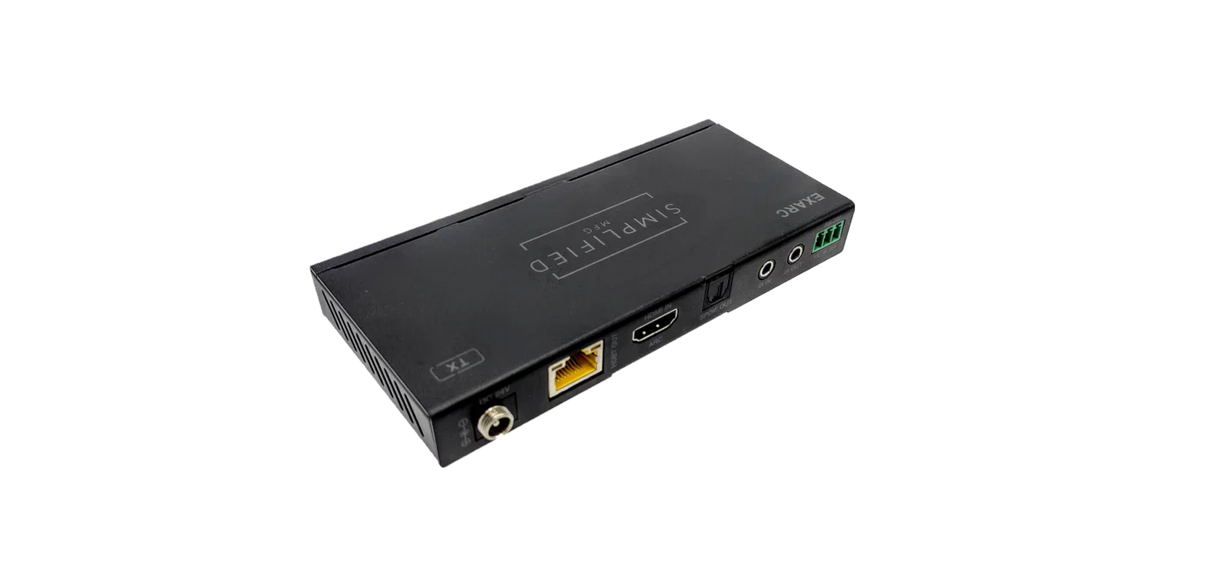

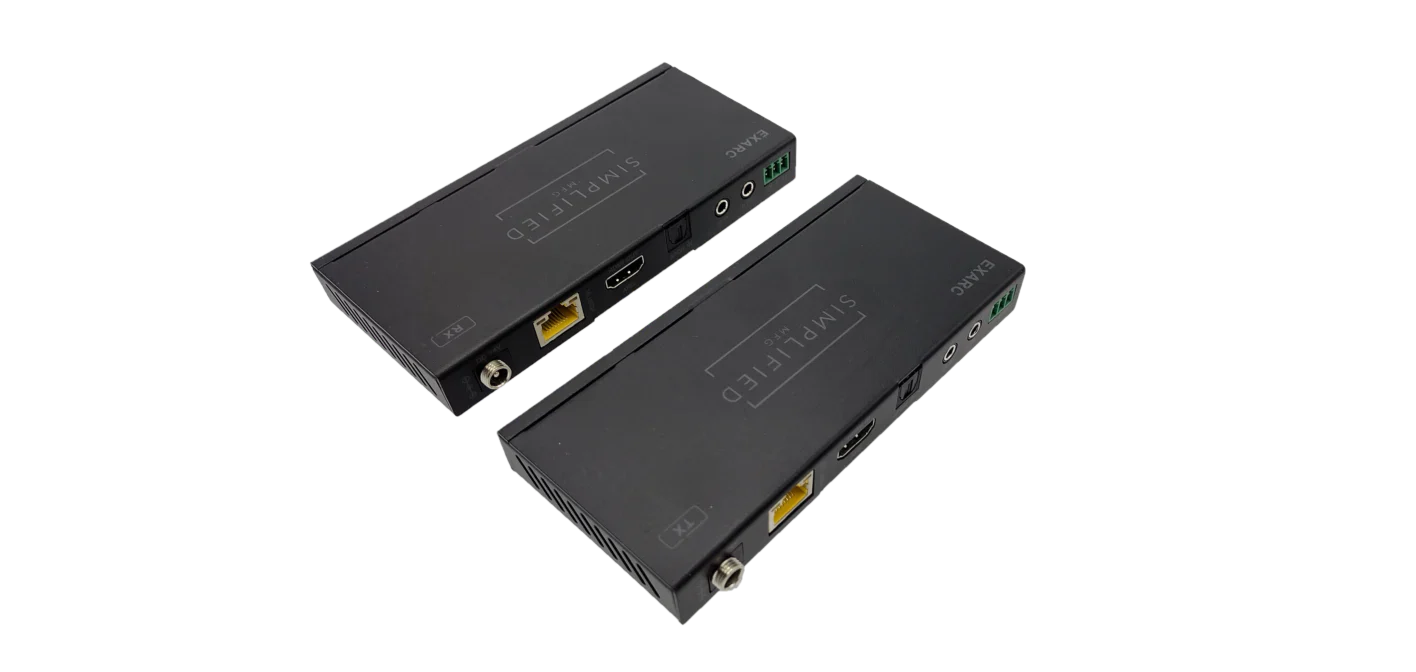

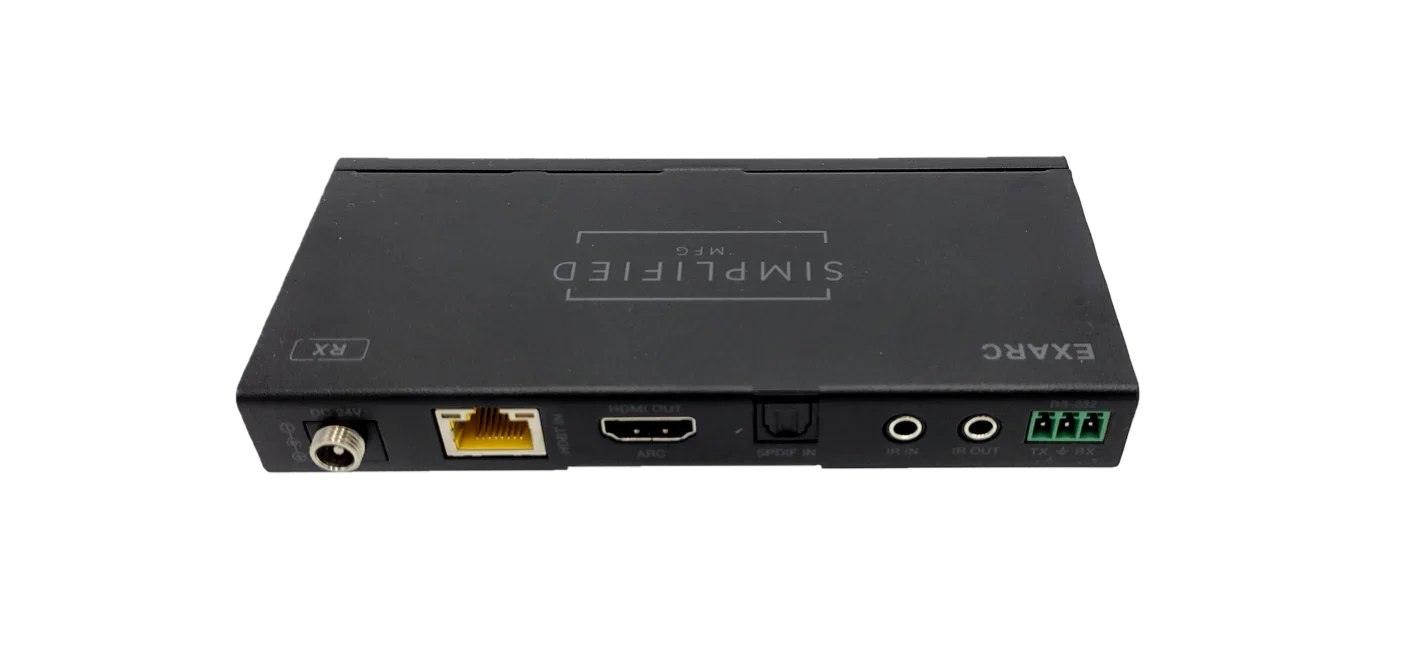

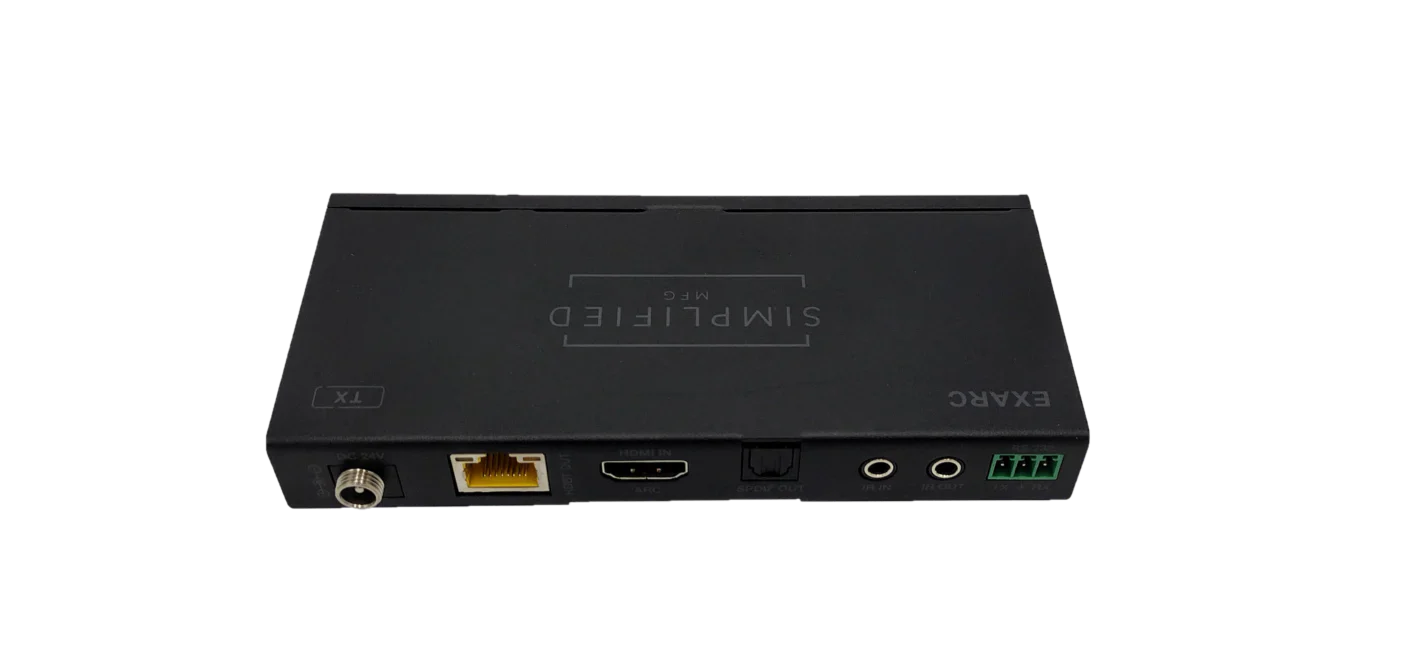

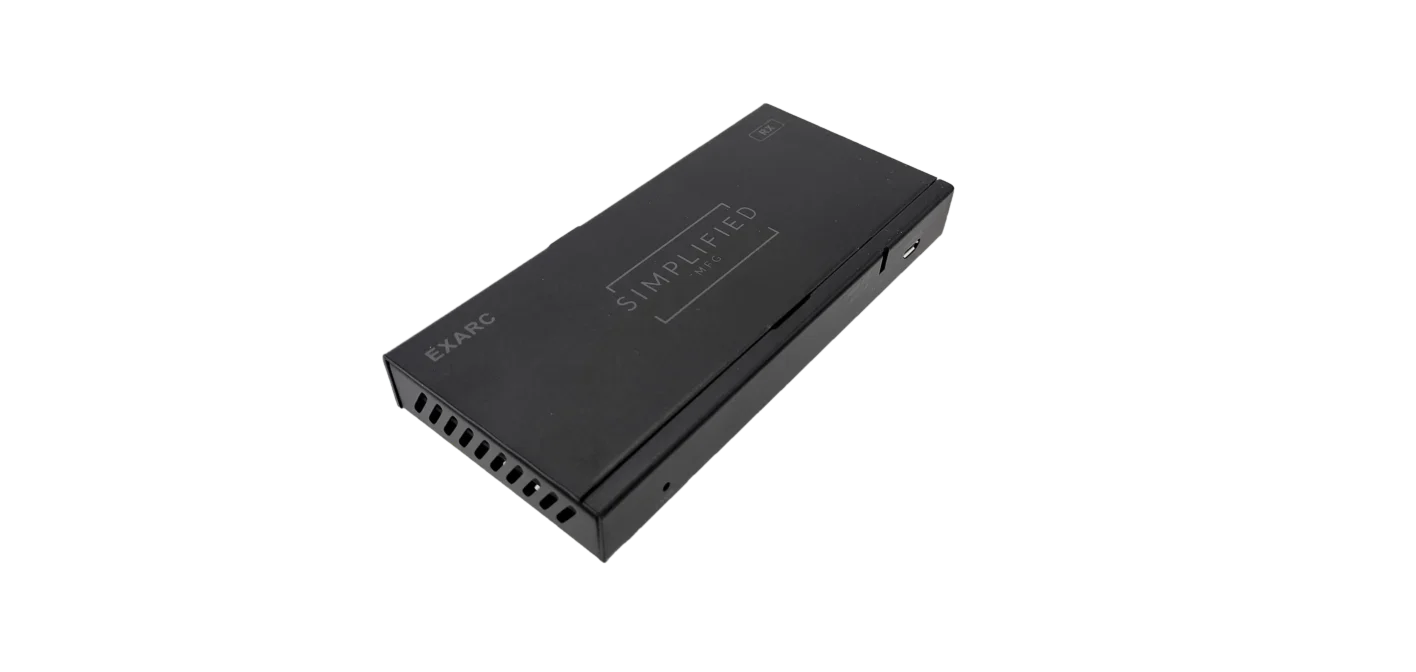

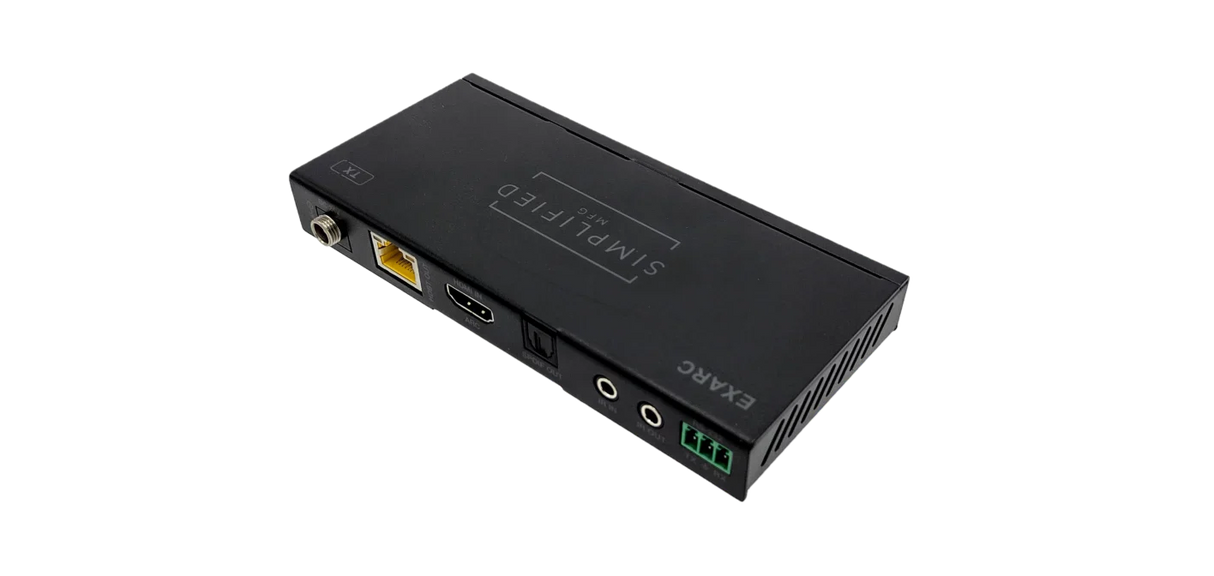

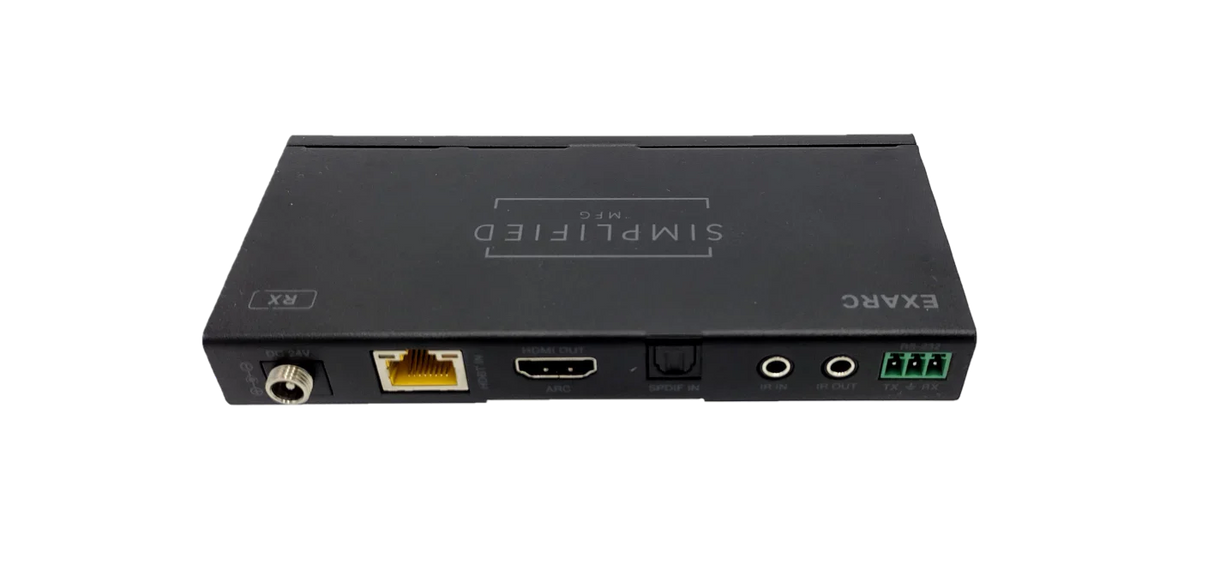

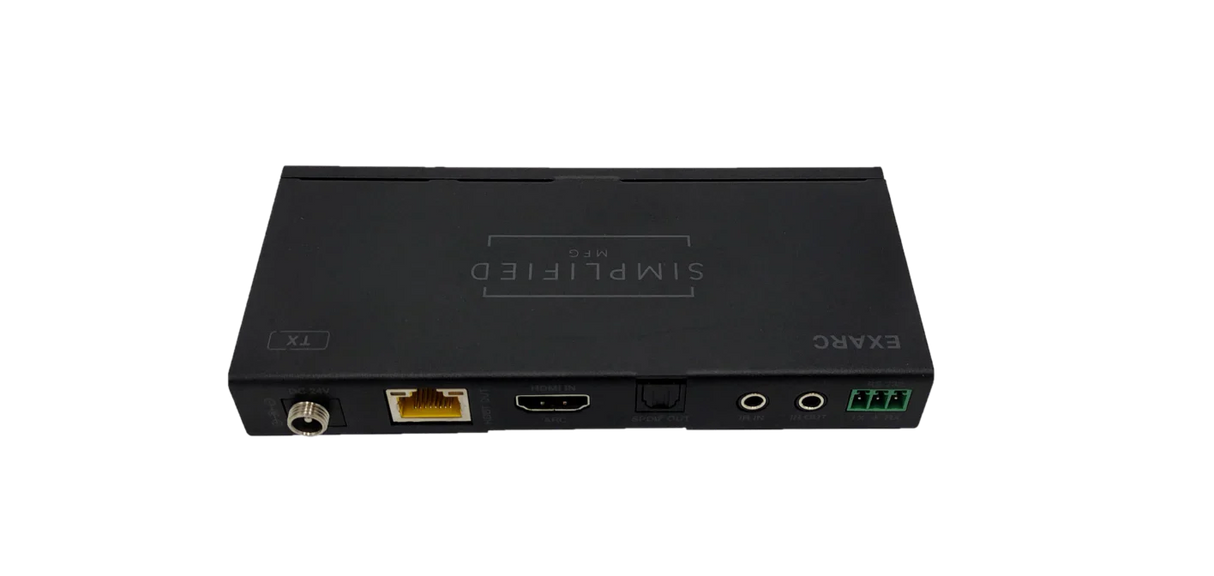

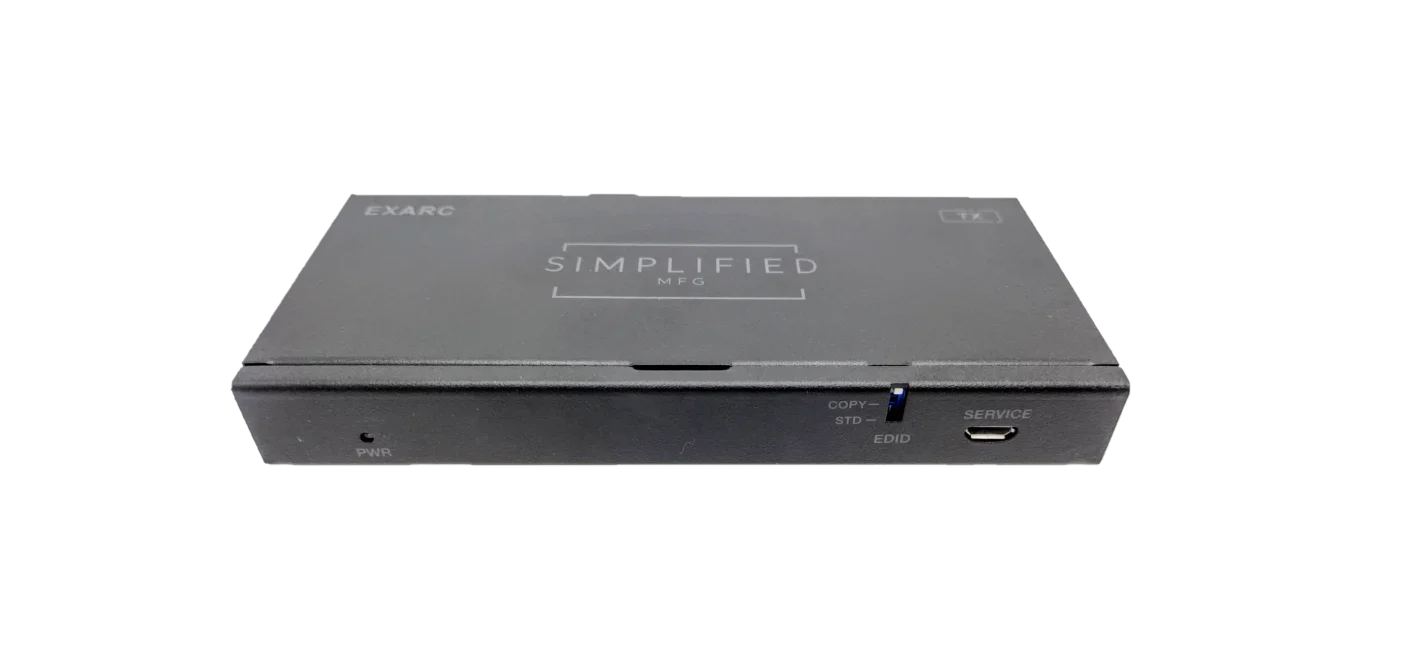

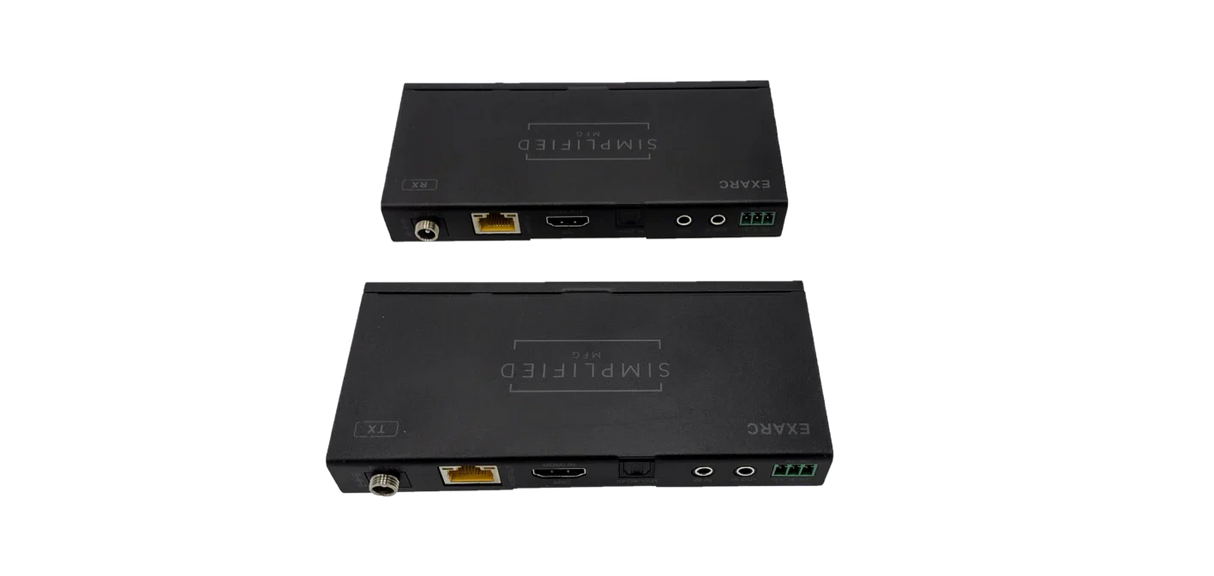

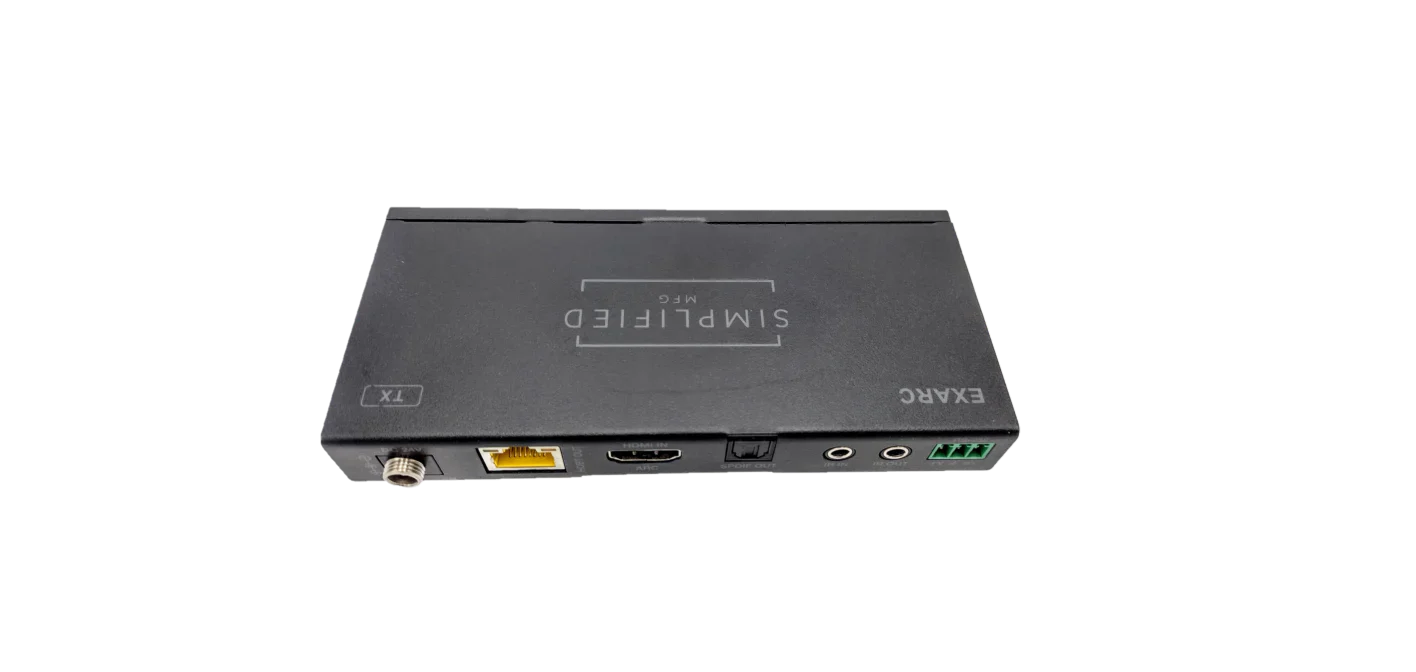

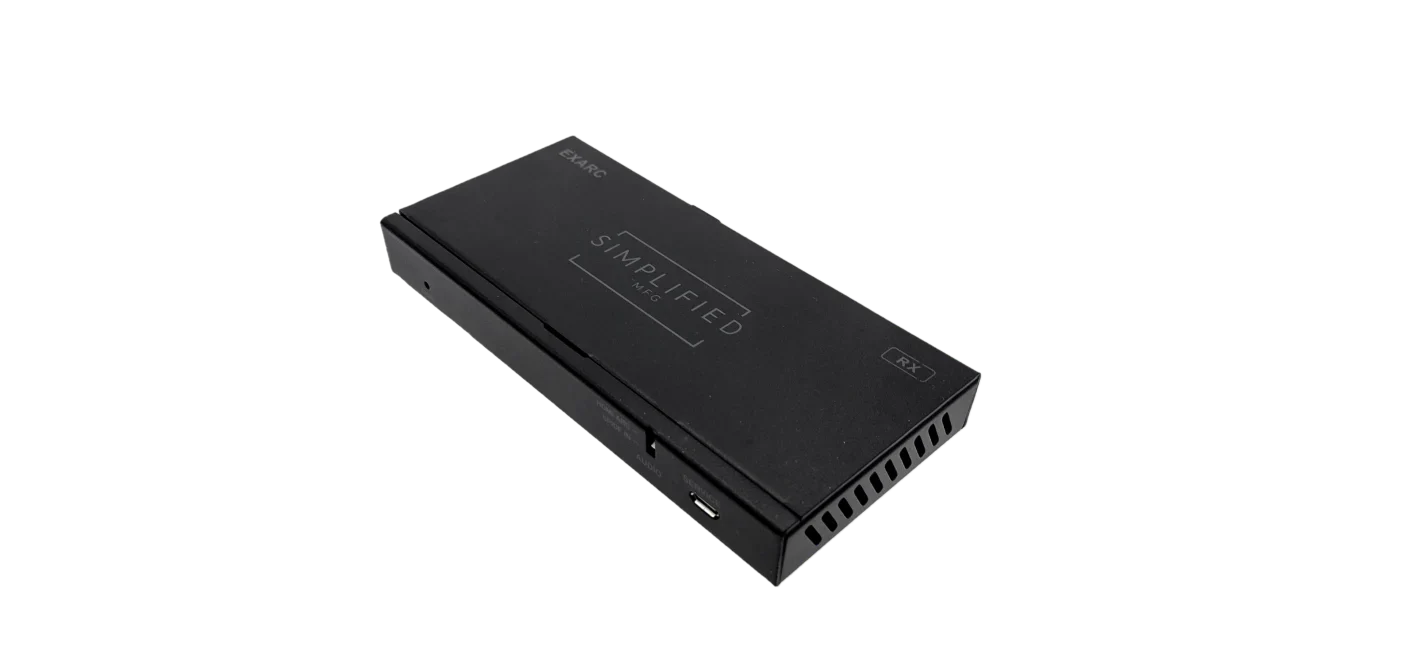

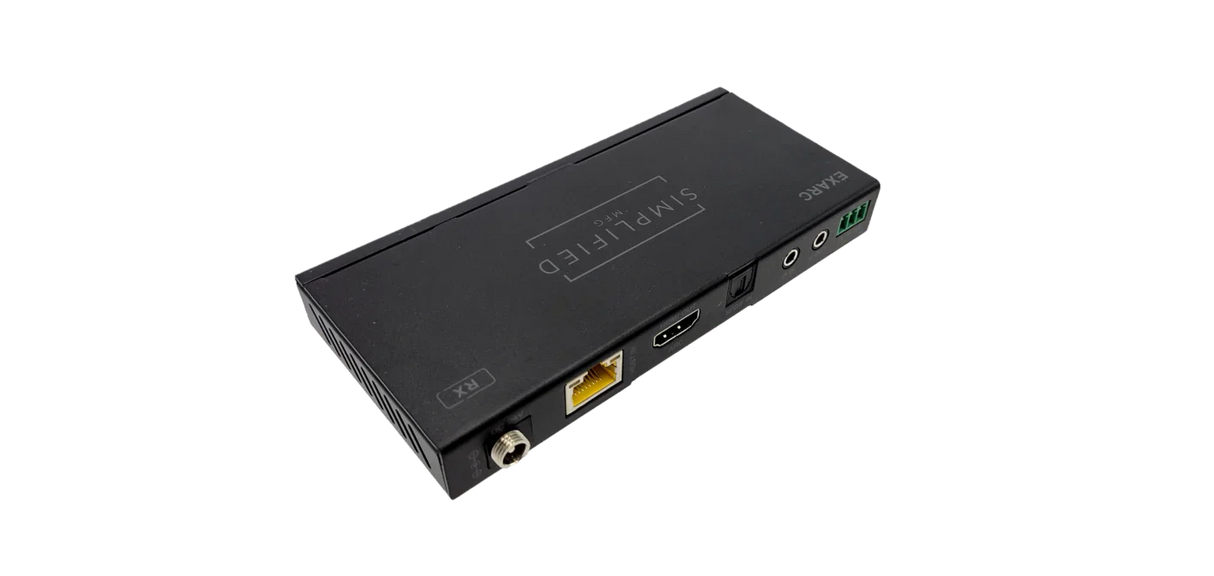

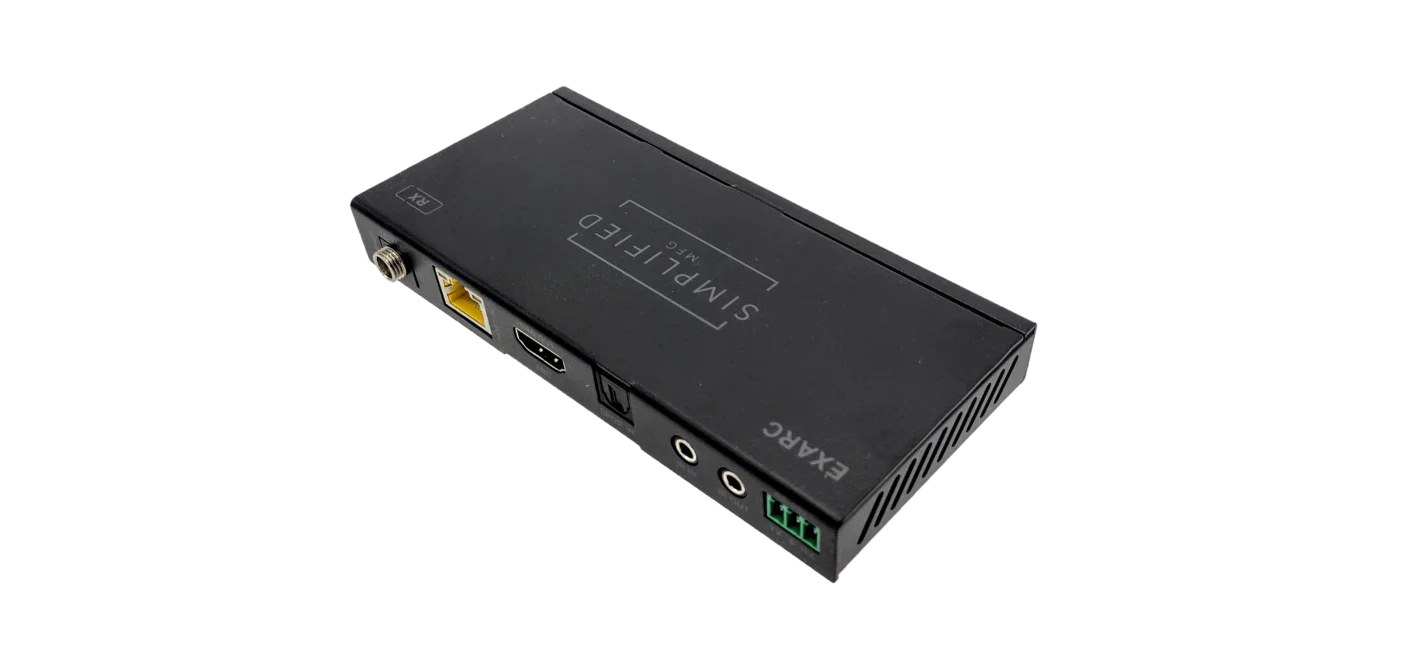

Simplified EXARC 4K HDMI 40m/131 ft. on Cat6/Cat 5e 18Gbps extender
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details

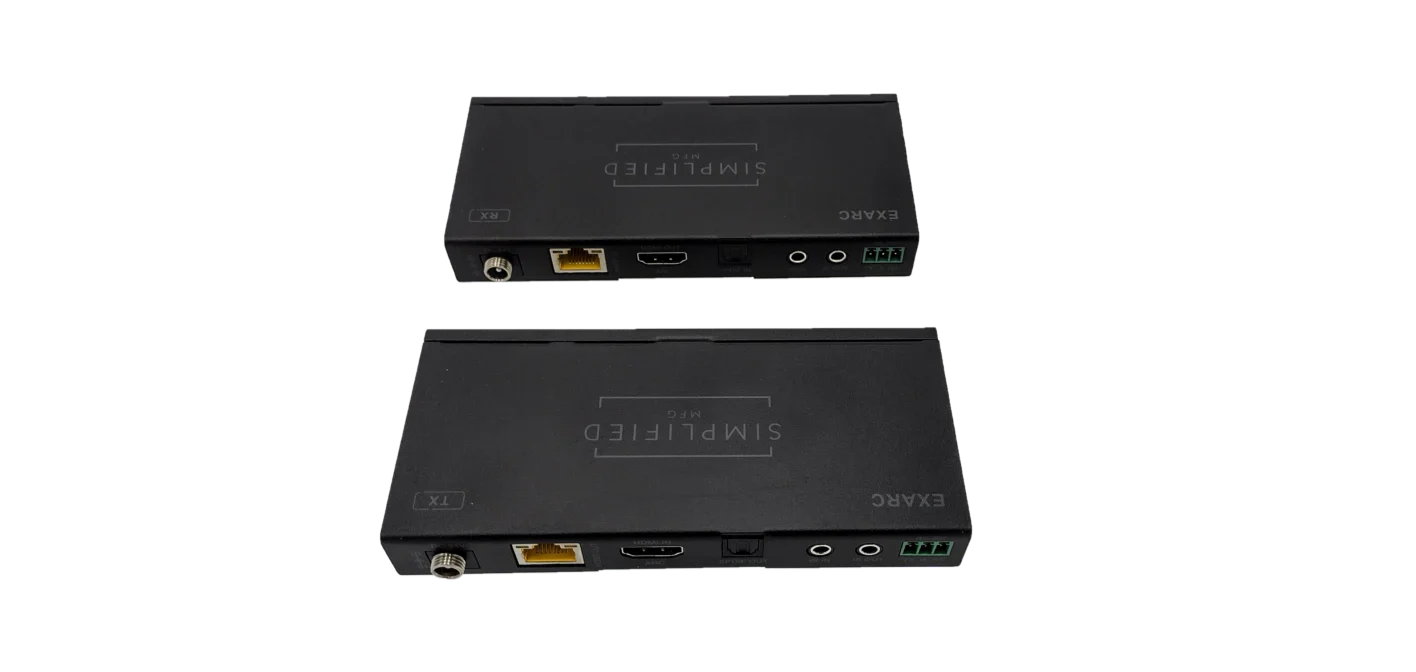

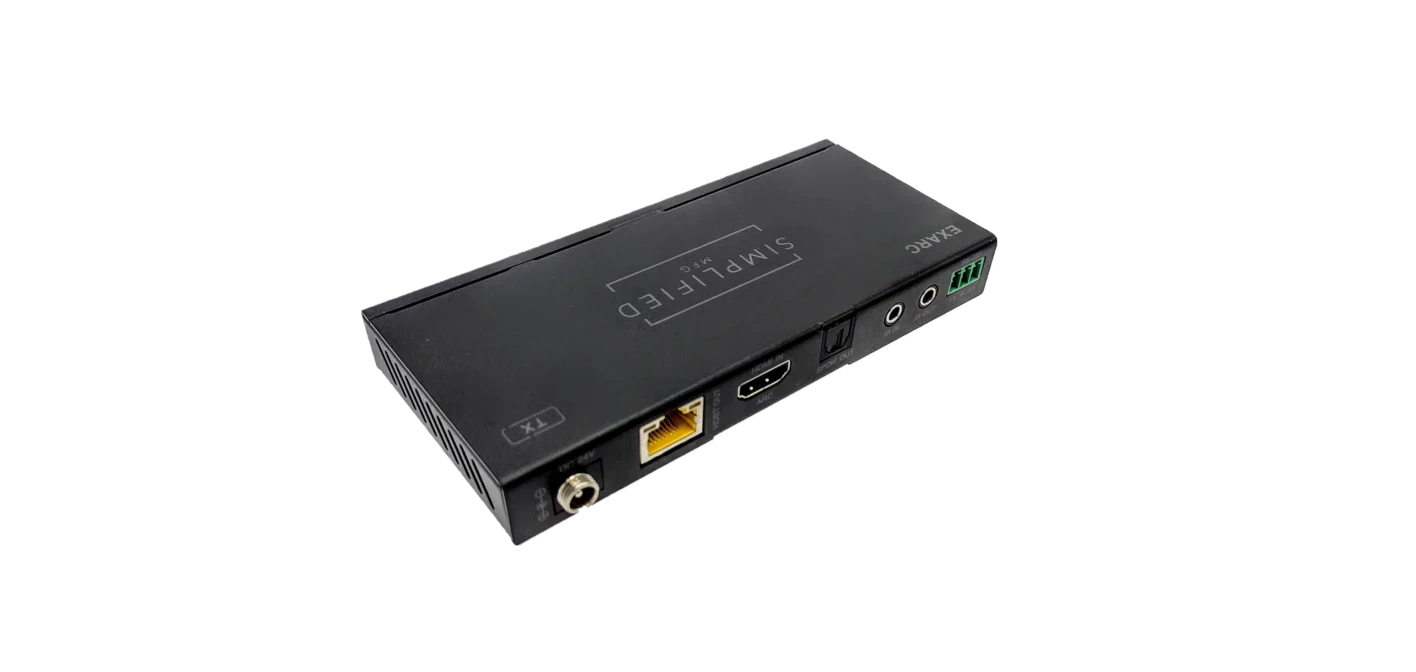

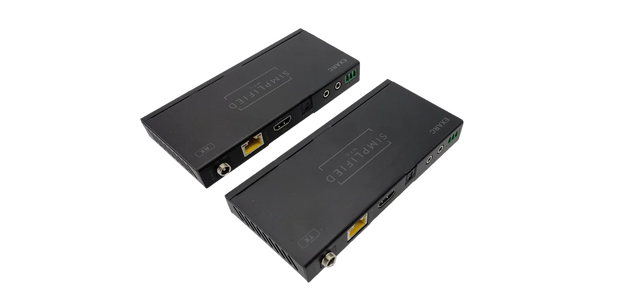

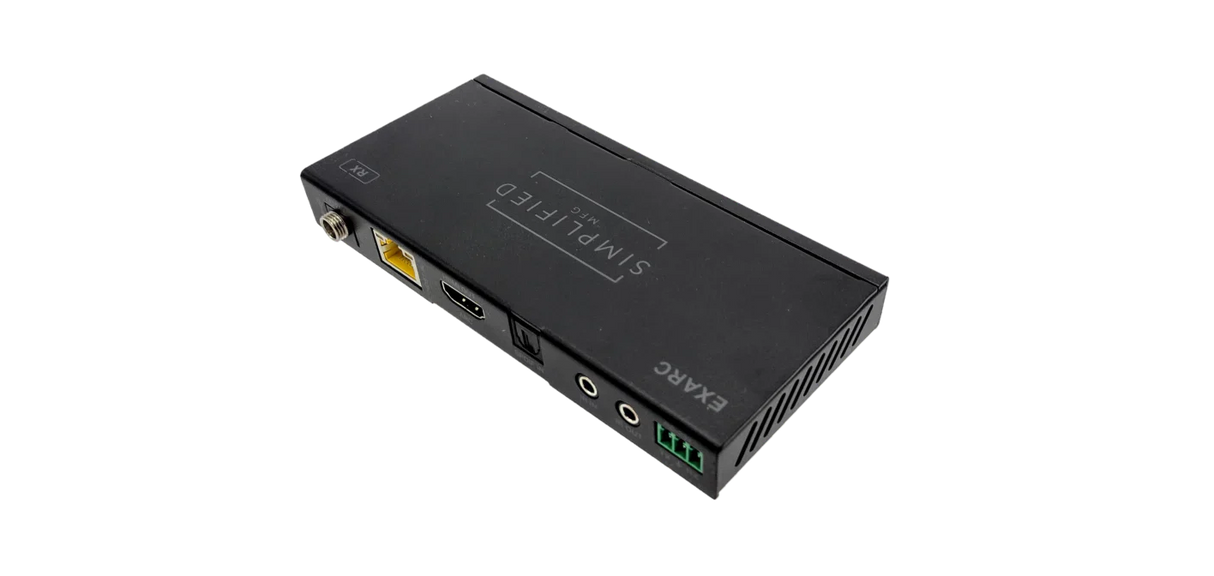

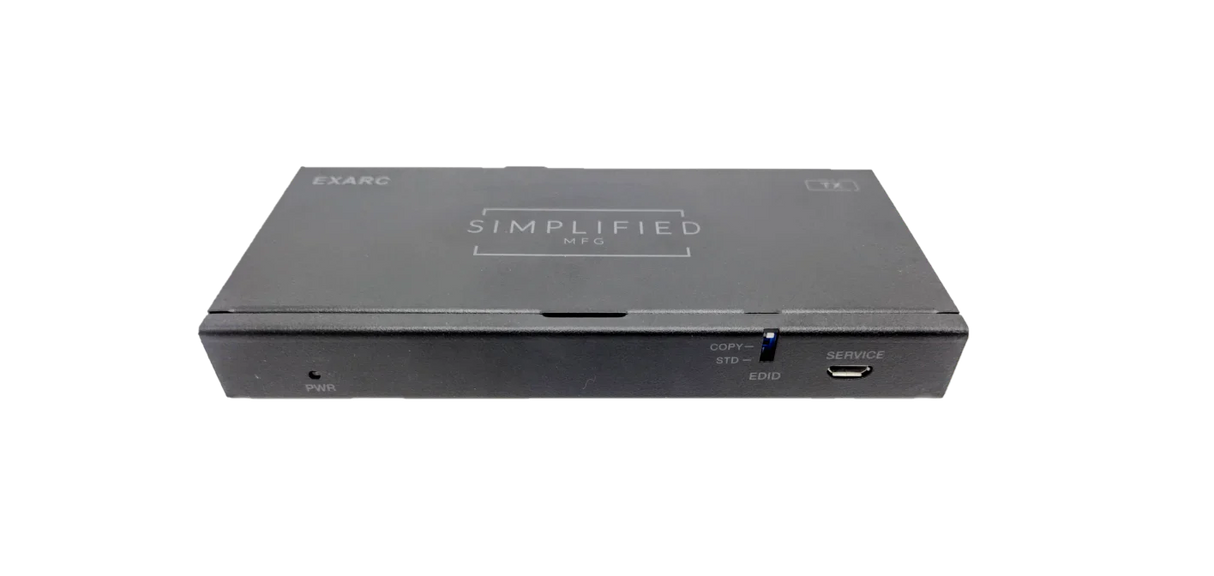

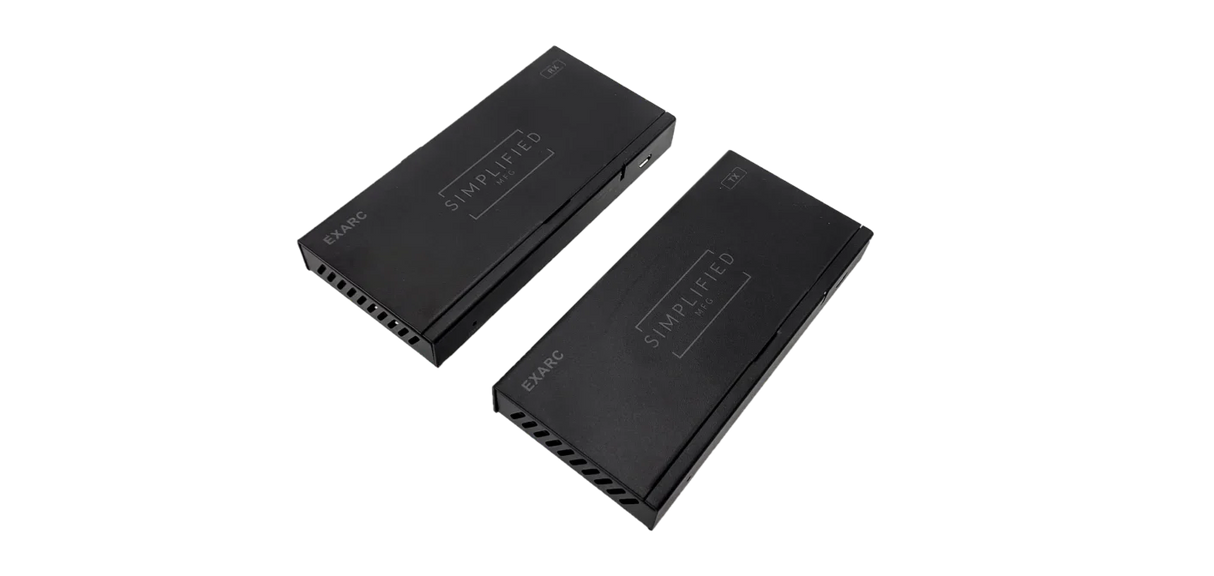

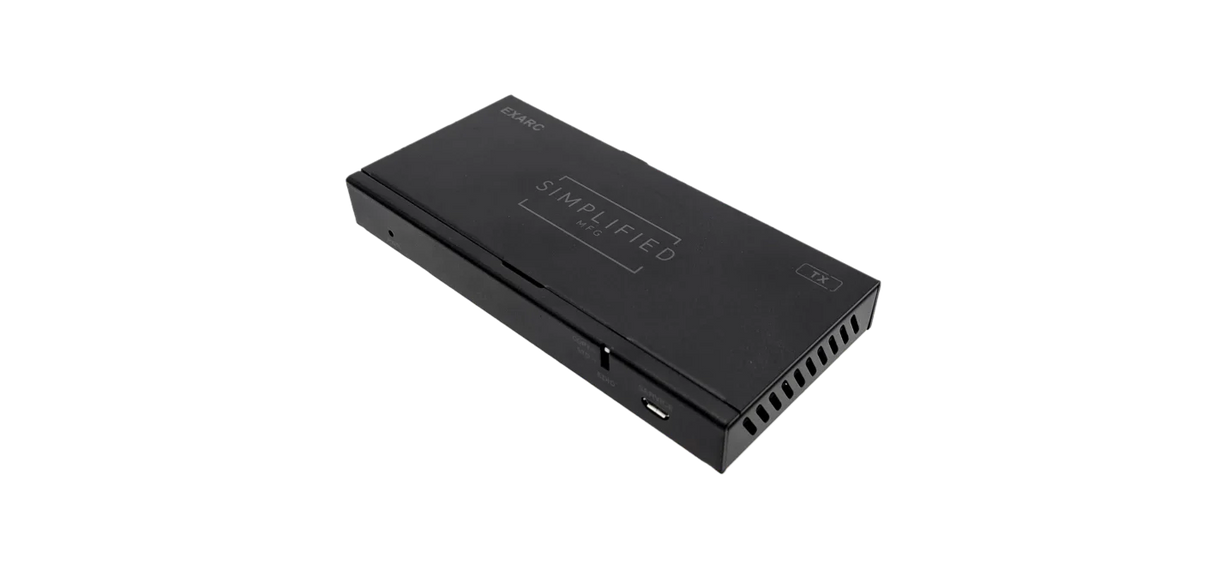

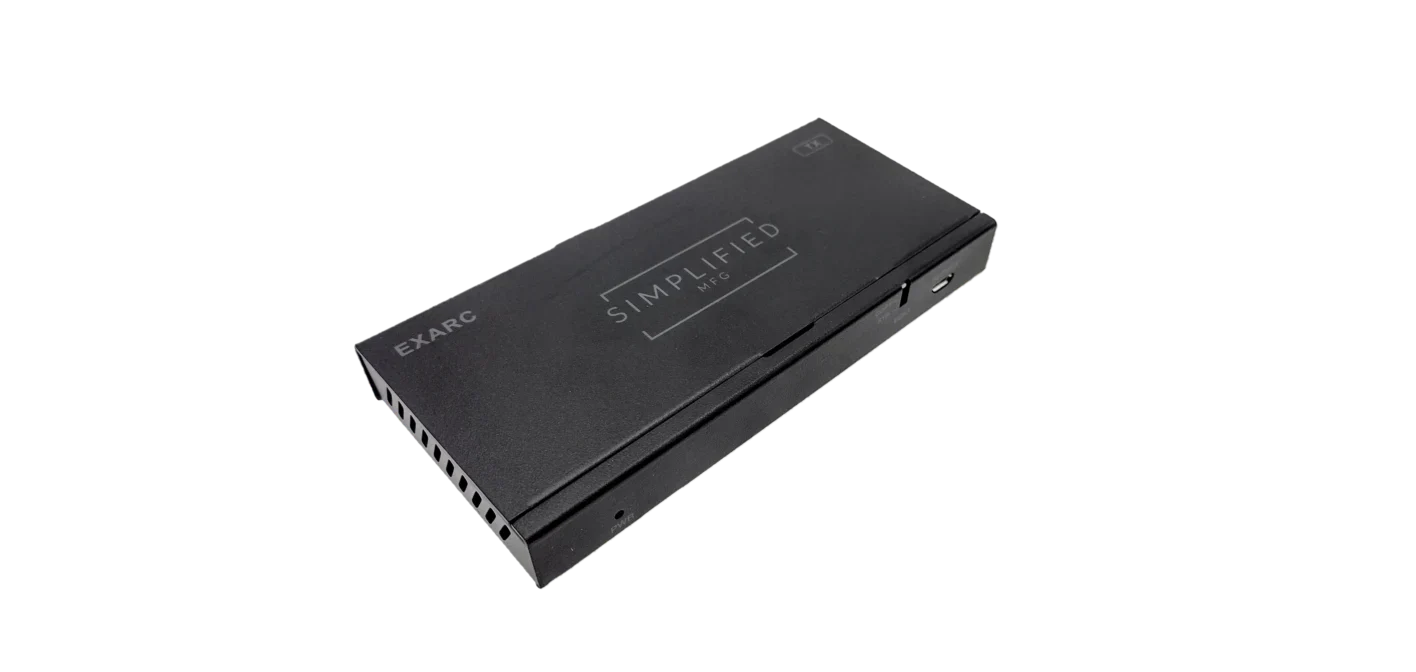

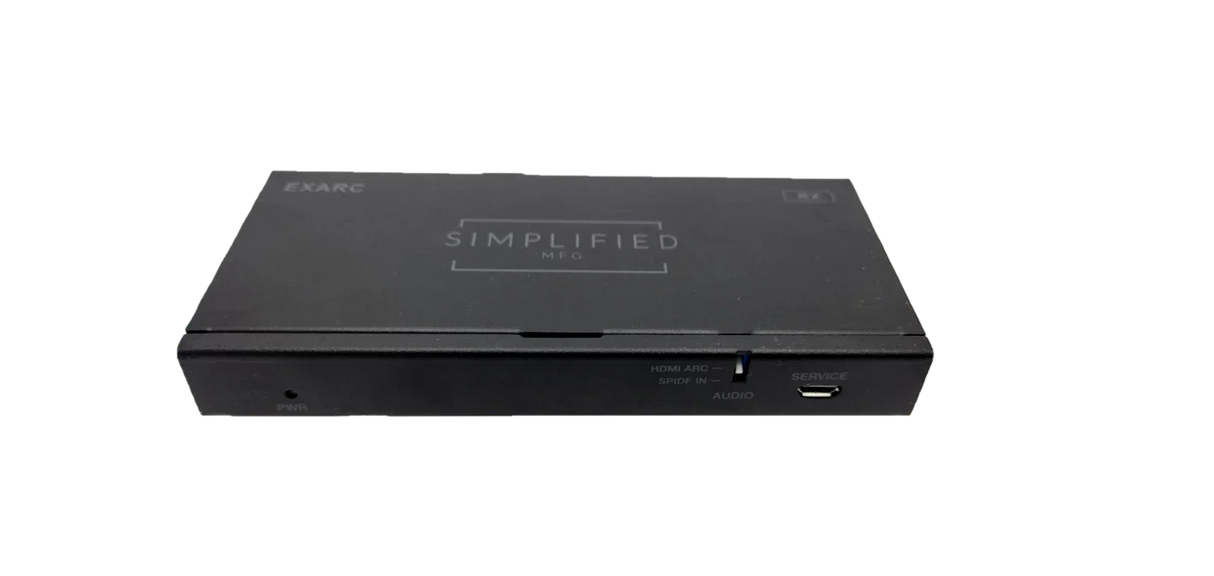

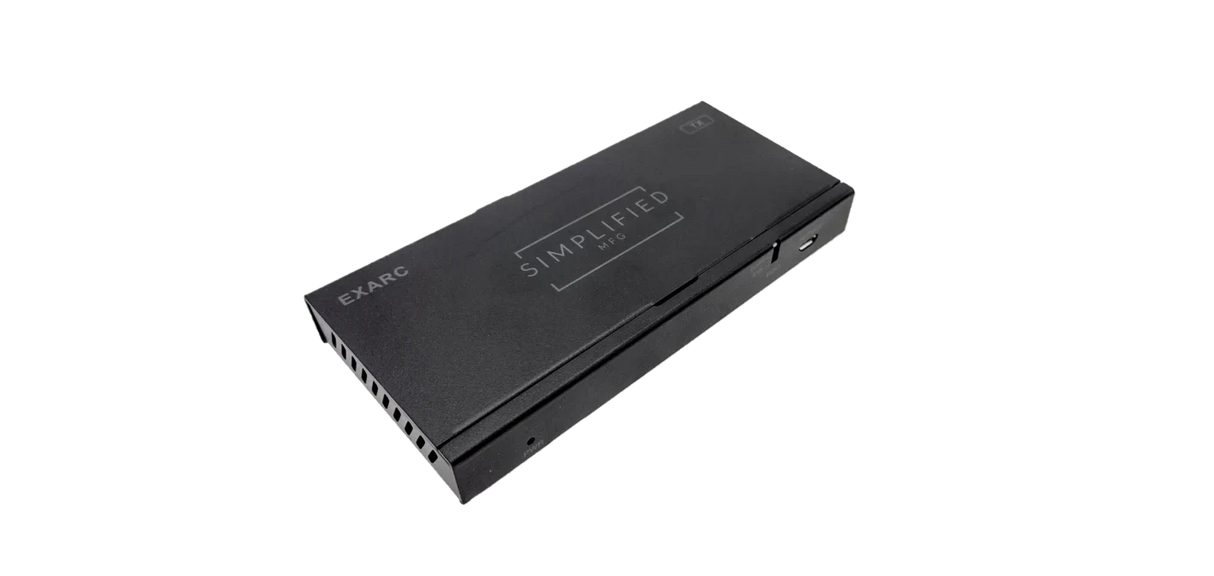

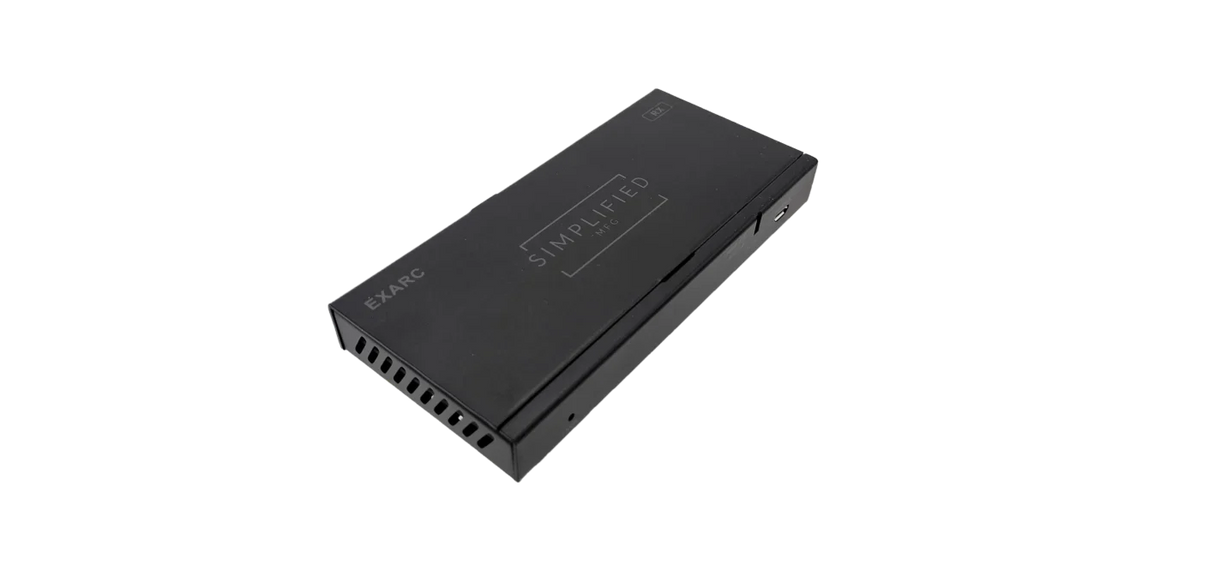

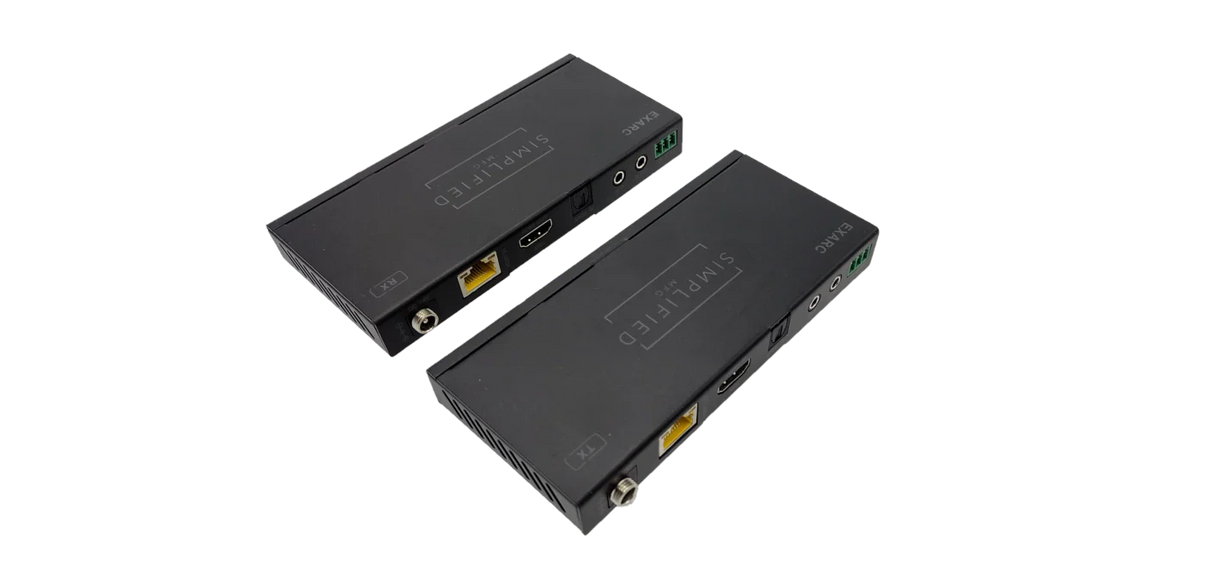

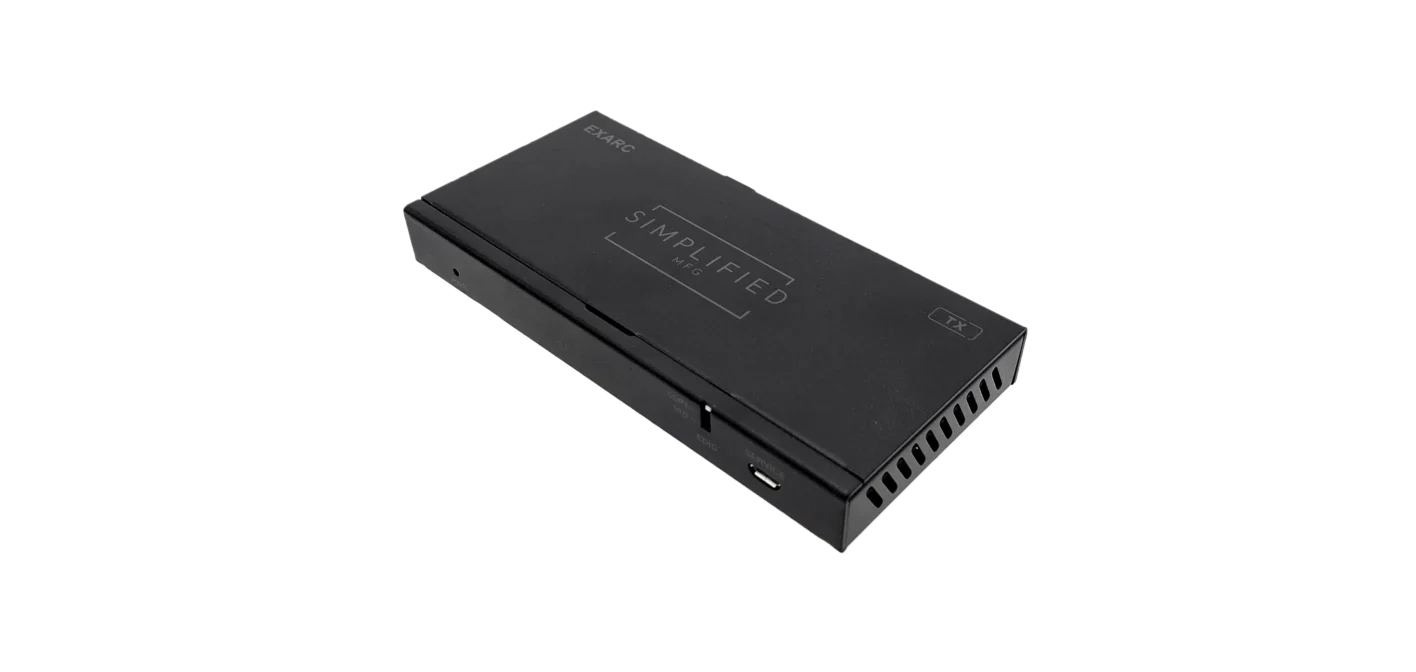

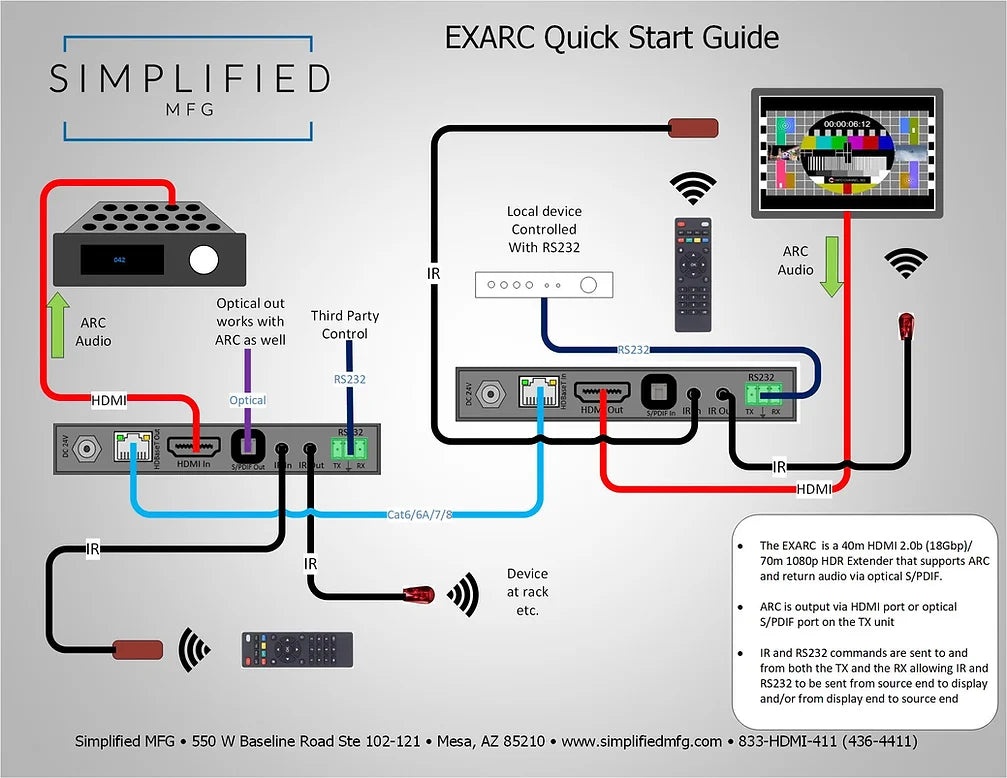

The EXARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 230t/70meters to a compatible 1080p display, 131ft/40meters to a HDMI 2.0b 18gbps compatible display. The EXARC supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EXARC great when you need to bring audio back to the TX/Rack from the display. The ARC or S/PDIF [optical] can be output at the TX via the HDMI cable (ARC) or via the S/PDIF [optical] output. It also supports Bidirectional 12V Infrared control and RS232.
Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display over a single Category cable.
Features & Benefits
-
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
-
Video resolutions up to 4K2K@50/60Hz (YUV444)
-
HDR8/10/10+ (High Dynamic Range) pass through
-
Dolby Vision™ pass through
-
Supports ARC or S/PDIF return from display to TX/Rack via HDMI and/or optical S/PDIF
-
Supports HDMI High Bit Rate(HBR) audio pass through
-
Supports Dolby+, Atmos and DTS-X
-
Supports CEC
-
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
-
12V Bidirectional Infrared control signal together with the HDMI signal.
-
Transfers Bidirectional RS232 control signal together with the HDMI signal.
-
Transmission distance: Over CAT6 cable
-
70 meters/230ft.
-
1080P @60Hz36bit; 3D1080P@30Hz36bit;
-
-
40 meters/131ft.
-
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
-
-
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit,10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| POE Format | 24V |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
|---|---|

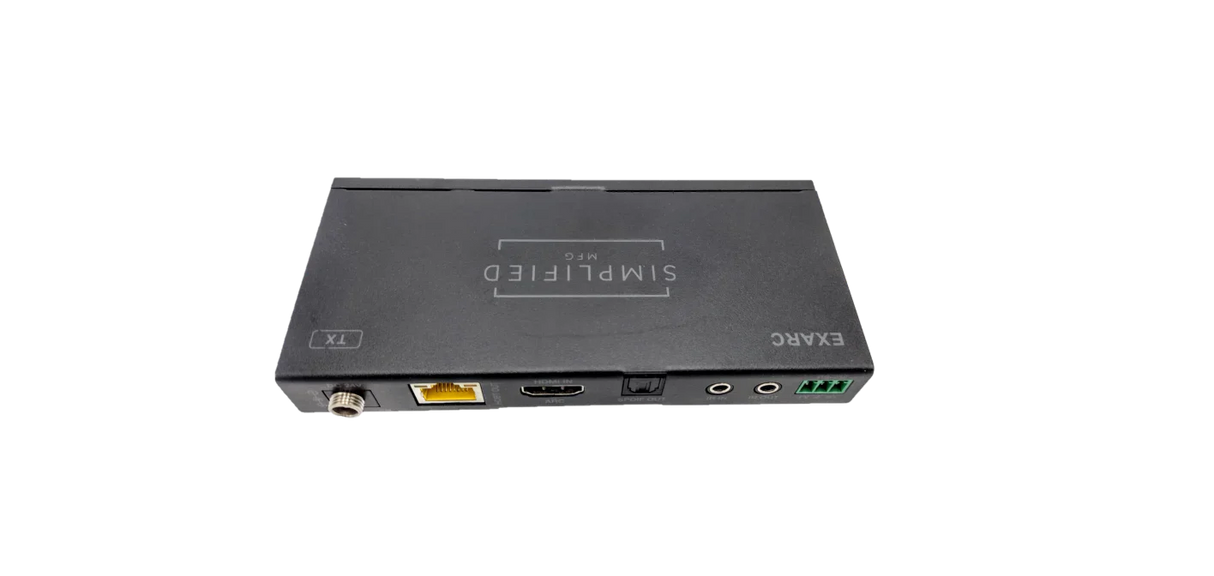

| Inputs: Transmitter | 1x HDMI Type A [19-pin female] |
| 1x IR INPUT [3.5mm Stereo Mini-jack] | |
| 1x RS232 [Phoenix jack] | |
| 1x Service [Mini-USB jack | |
| Inputs: Receiver | 1x HDBaseT In [RJ45] |
| 1x IR INPUT [3.5mm Stereo Mini-jack] | |
| 1x RS232 [Phoenix jack] | |
| 1x Service [Mini-USB jack] | |
| Outputs Transmitter | 1 x HDBaesT [RJ-45] |
| 1 x Optical S/PDIF | |
| 1 x 3.5mm Mini [12V IR] | |

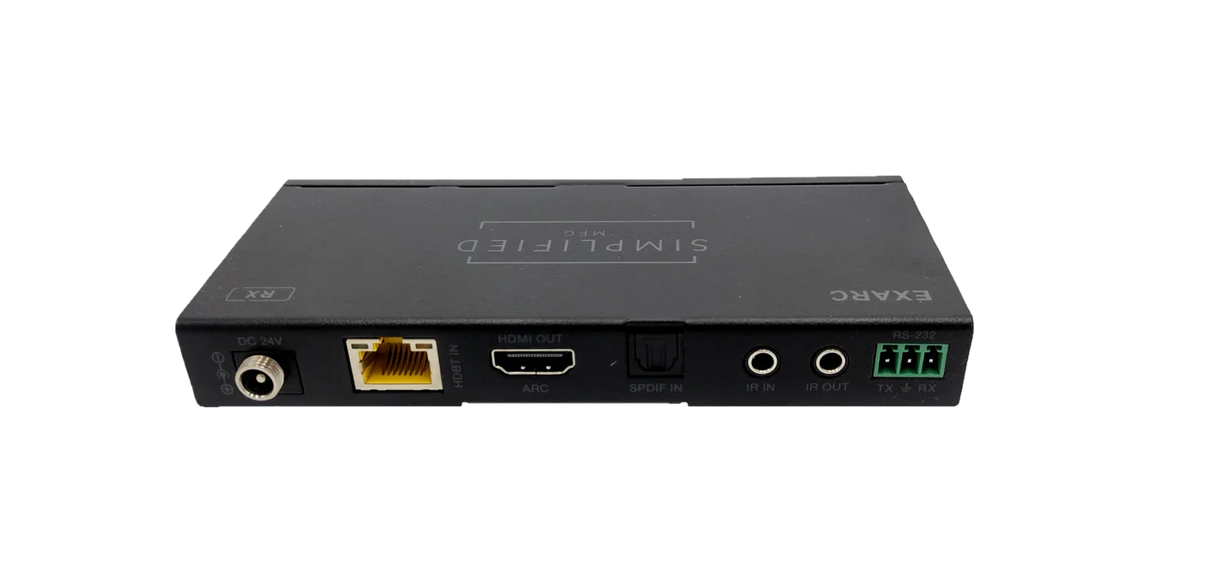

| Outputs Receiver | 1x HDMI Type-A [19-Pin] |
| 1 x 3.5mm Mini 12V IR |
| Mechanical | |
|---|---|
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 183mm/7.2" [W] x 88mm/3.5" [D] x 18mm/0.71" [H] |
| Weight | 450g/15.88 oz. |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Specifications subject to change.
