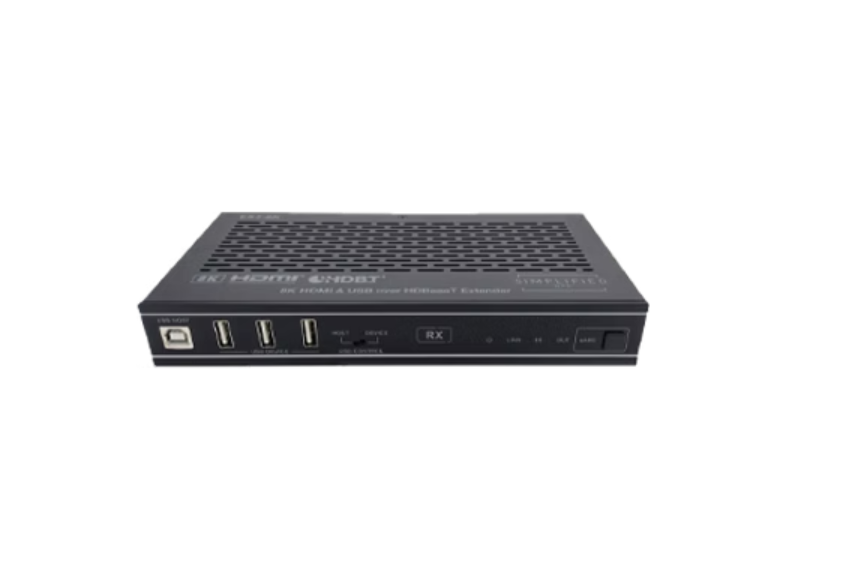

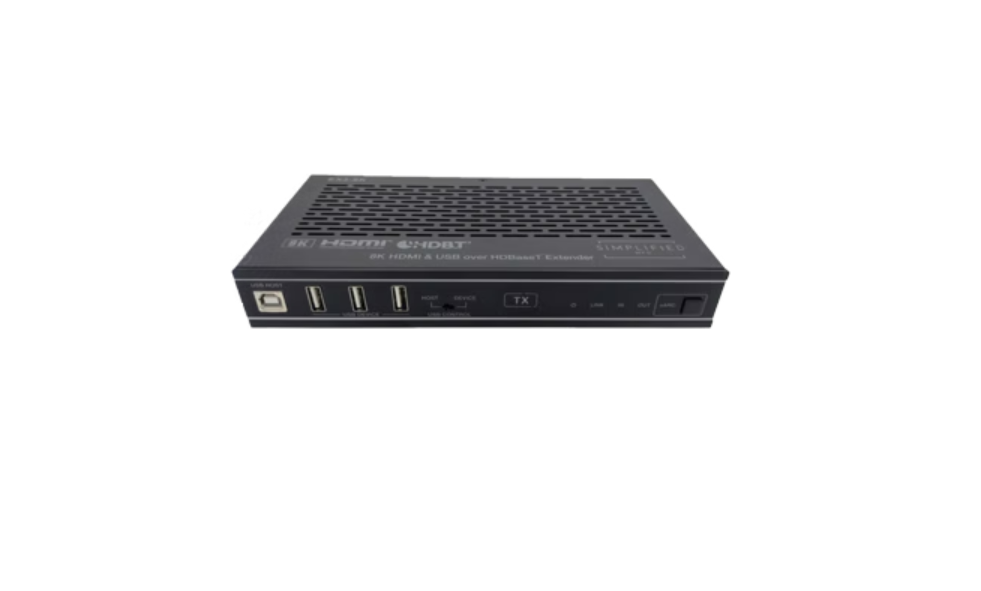

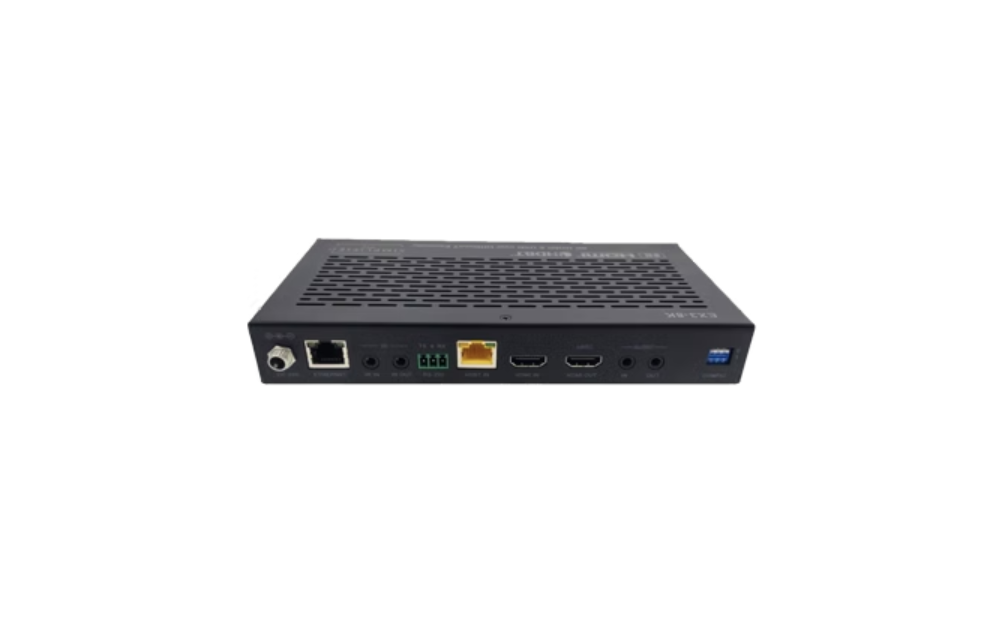

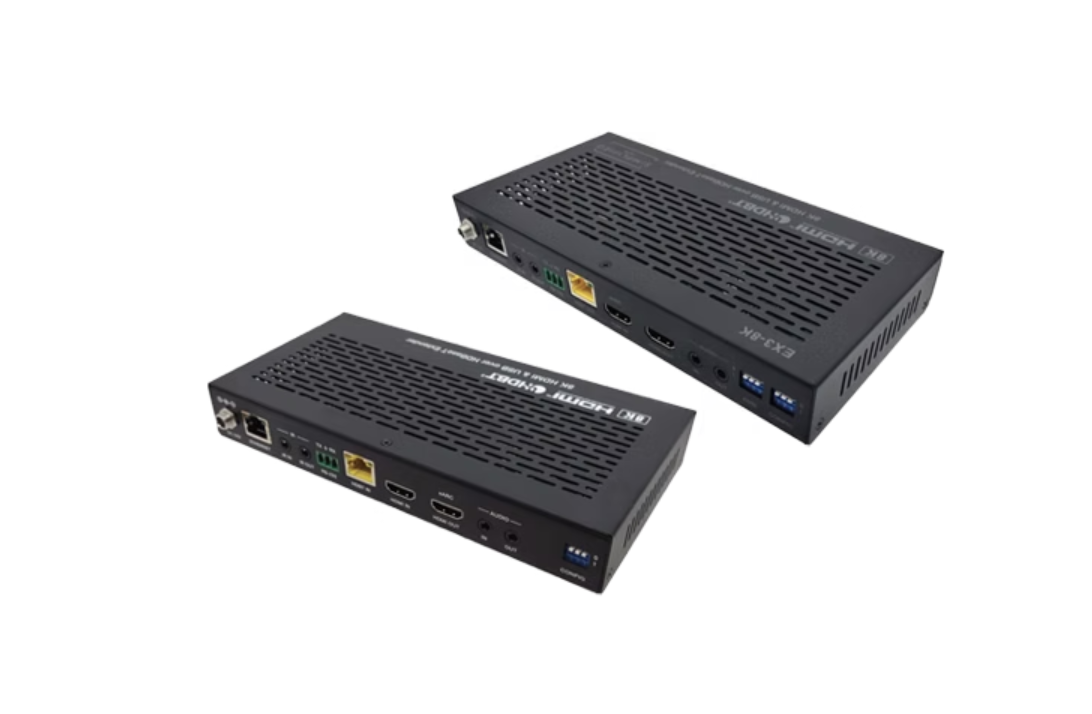

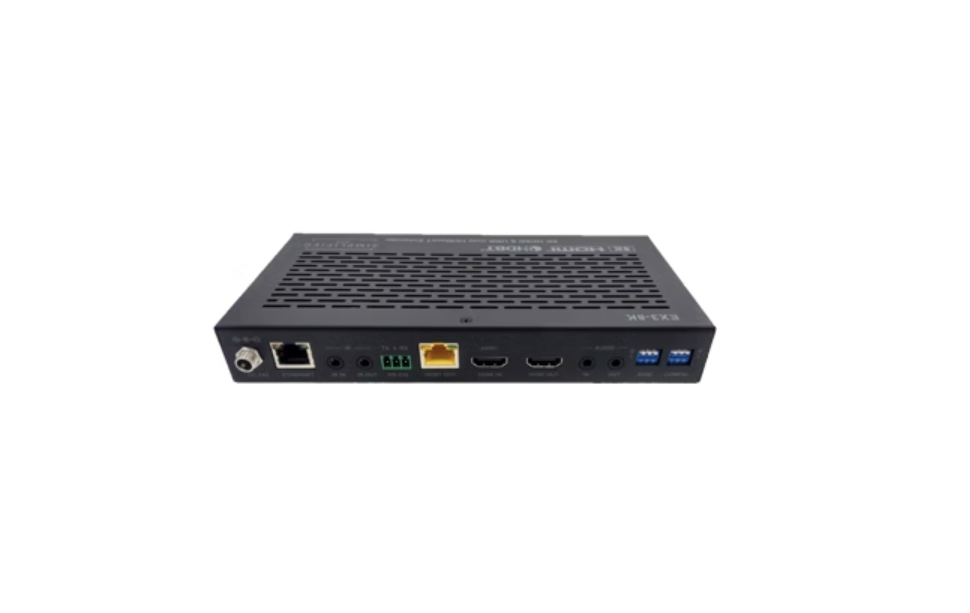

Simplified EX3-8K HDMI 2.1 (40Gbps) Extender Over Cat6A Cable

Product Details

The EX3-8K Extender is a device which can extend your 8K or 4K@120Hz. HDMI signal over 330ft/100meters to a compatible 8K/4K display. The EX3-8K also supports eARC/ARC, 1Gbps Etherenet pass-thru, USB 2.0, 2-Way IR, RS-232, and a separate stereo audio pass-thru (both directions). This is the most capable 8K, on category cable HDMI extender, on the market. Other advanced features include, EDID management, configurable RS-232 functions (can reset extender with a command), and even a 1080p @24Hz video return ability.

Primary Use: Extending High bandwidth 8K or 4K@120Hz. HDMI AV and a myriad of control (including USB) and audio functions up to 330ft on category cable. The EX3-8K will operate on Cat 6 at a shorter distance of 50-60m.

Features

• HDMI 2.1 (40Gbps)

• HDCP 2.3/2.2/1.4 and DVI Compliant

• Uncompressed eARC support

• USB 2.0 (Client or Server from either end)

• 1Gbps Ethernet Pass-Thru

• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)

• Bidirectional 5V or 12V Infrared control signal together with the HDMI signal

• Transfer Bidirectional RS232 control signal together with the HDMI signal

• Separate stereo pass-through (both directions)

• RS-232 pass through can be routed to the extender to update and do basic commands, like a reset.

• Supports all high-definition audio formats including Dolby+/Atmos

• eARC/ARC bandwidth can be used for 1080p @24Hz video return

• 3 Year Warranty

Downloads

Spec Sheet

Manual
