Simplified EX2ARC Full featured 4K HDMI 90m/295 ft. 18Gbps extender on Cat6A/6* cable
Simplified EX2ARC Full featured 4K HDMI 90m/295 ft. 18Gbps extender on Cat6A/6* cable is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
The EX2ARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 330ft/100meters to a compatible 1080p display or 295ft/90meters to a HDMI 2.0b 18Gbps compatible display. The EX2ARC supports HDR10+ and DolbyVision™ as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EX2ARC great for "one wire" situations or when you need to bring audio back to the TX/Rack from the display. It also supports Bidirectional 12V Infrared control, RS232, & 100 Base T Ethernet together with the 18Gbps HDMI 2.0b signal.

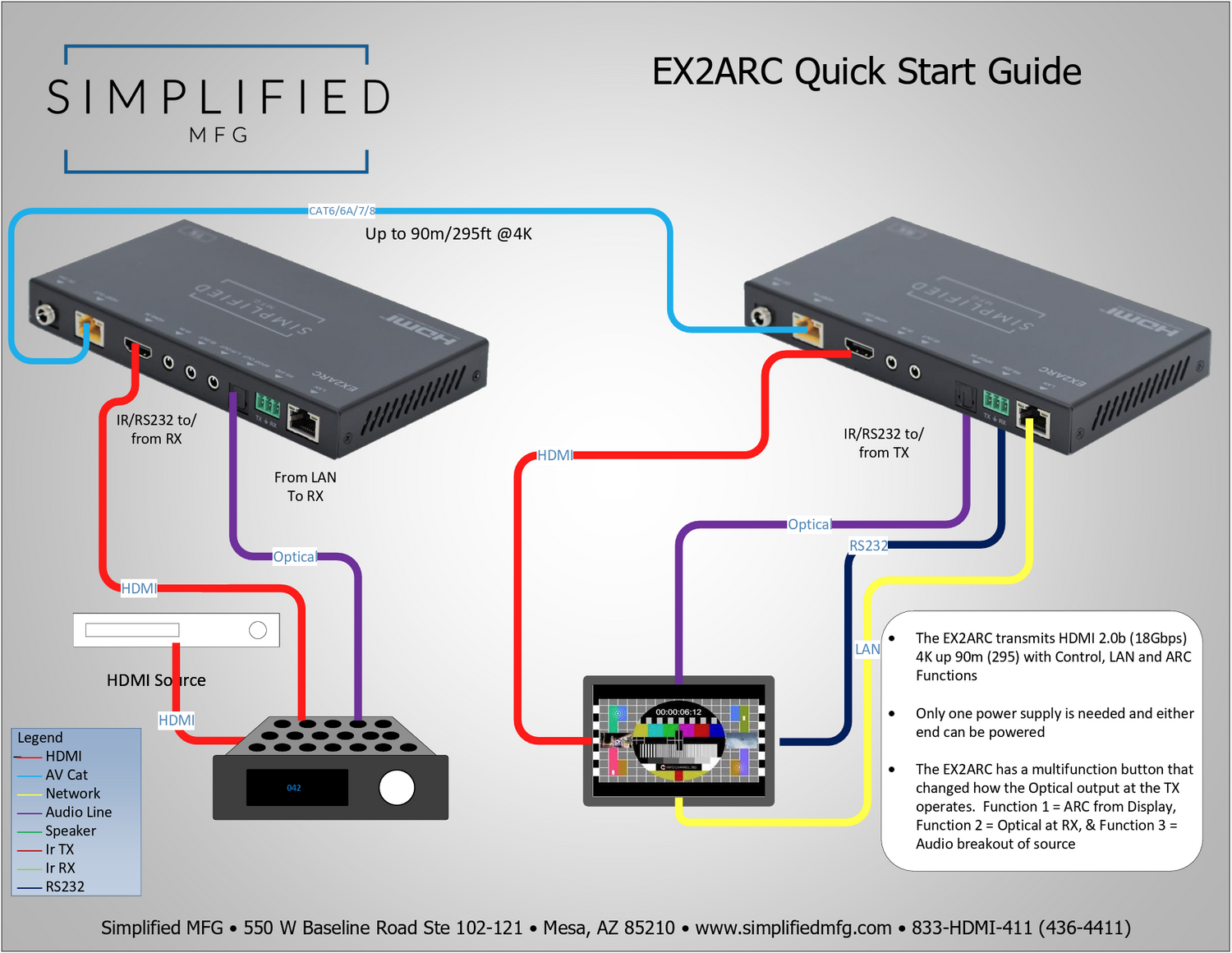

Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display, and Ethernet over a single Category cable. *Cat5e may be used, but some loss of distance may occur.
Features
• HDMI 2.0b (18Gbps)
• HDCP 2.2, HDCP 1.4 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• Sophisticated audio circuit with 3 functions. 1. HDMI ARC at RX to optical S/PDIF at TX. 3. S/PDIF at RX to S/PDIF at TX. 4. Audio extraction from source to S/PDIF at TX.
• 100 BaseT Ethernet pass-thru
• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
• Bidirectional 12V Infrared control signal together with the HDMI signal
• Transfer Bidirectional RS232 control signal together with the HDMI signal
• Supports all high-definition audio formats including Dolby+/Atmos
• 90m at 4k/UHD / 100m at 1080p
• 3 Year Warranty
