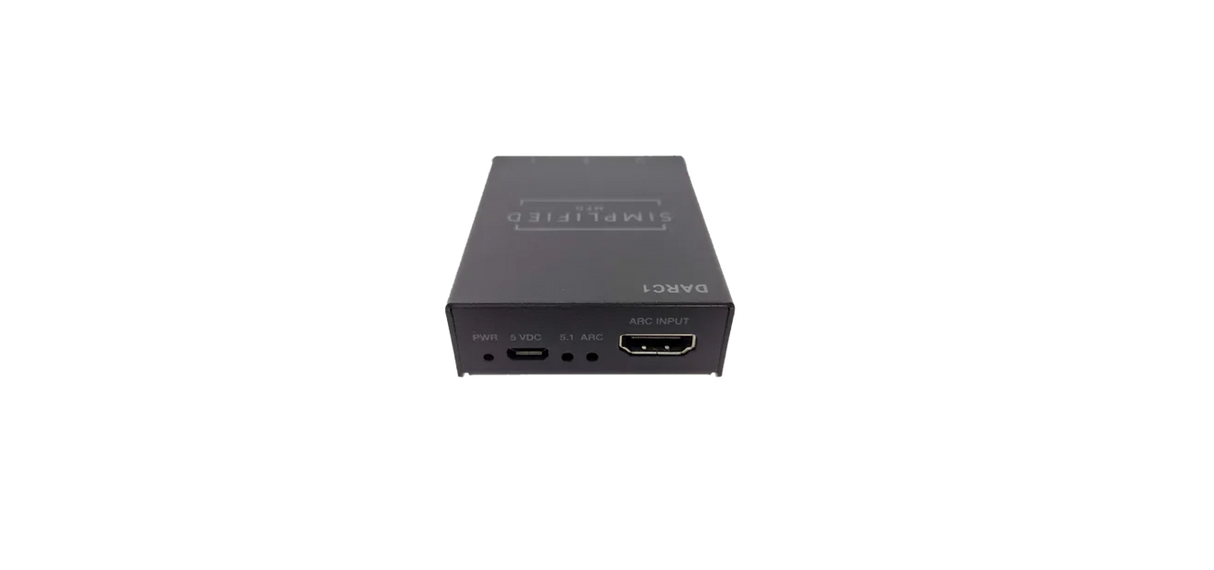

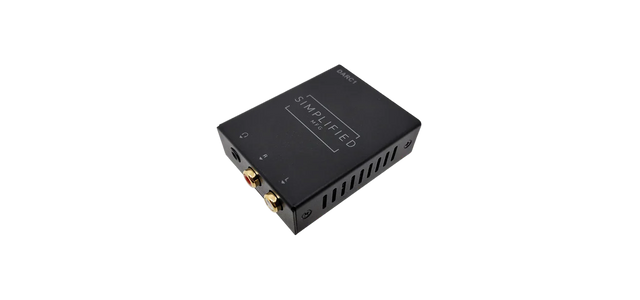

Simplified DARC1 ARC Audio Extractor with Downmix to Stereo
Simplified DARC1 ARC Audio Extractor with Downmix to Stereo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
The DARC1 is an ARC audio extractor that will extract ARC audio from a display and downmix the multichannel audio to stereo. The DARC1 one is a perfect device for getting a usable stereo audio signal from a display that does not have a stereo audio output. The display's remote will control the volume of the outputs via CEC.
Features & Benefits
- Converts HDMI ARC audio to Stereo
- Compact design
- Powers from USB port of display
- Converts 5.1 formats to stereo
- 3-year Warranty
Specifications
Technical | |
---|---|
HDMI Compliance | Not Applicable |
HDCP Version | Not Applicable |
HDMI ARC Audio Formats | LPCM 2/5.1/Dolby Digital, DTS 5.1 |
L/R Audio Formats | Analog Stereo 2CH |
Analog Output Ports | RCA (2) and 3.5mm mini-jack |
ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
Connections | |
---|---|

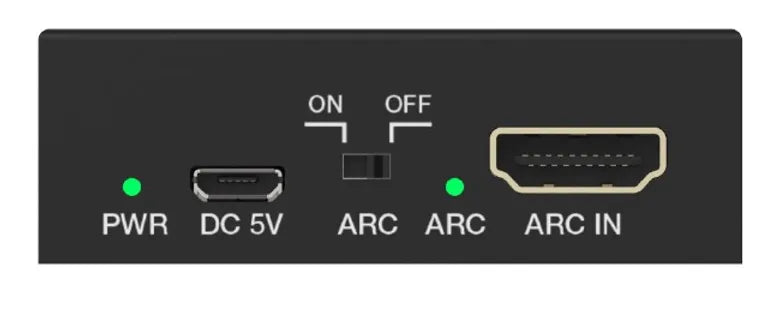

Inputs | 1x HDMI Type A [19-pin female] |

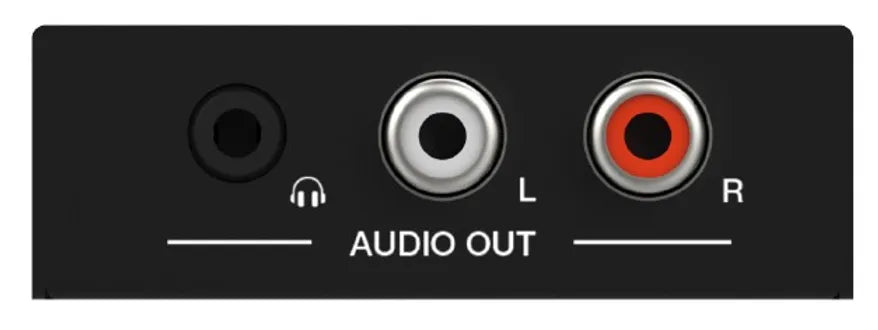

Outputs | 2x L/R Audio Out RCA Connectors |
1x 3.5mm Mini-Jack |
Mechanical | |
---|---|
Housing | Metal Enclosure |
Color | Black |
Dimensions | 70mm/2.756" [W] x 60mm/2.36" [D] x 20mm/0.788" [H] |
Weight | 130g/4.6 oz. |
Power Supply Input | AC100 - 240V 50/60Hz |
Power Supply Output | DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 1W (Max) |
Operation Temperature | 32 - 104°F / 0 - 40°C |
Storage temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no condensation) |
Specifications subject to change.
