Product Details
ARC Audio extender over Cat6A/6 cable

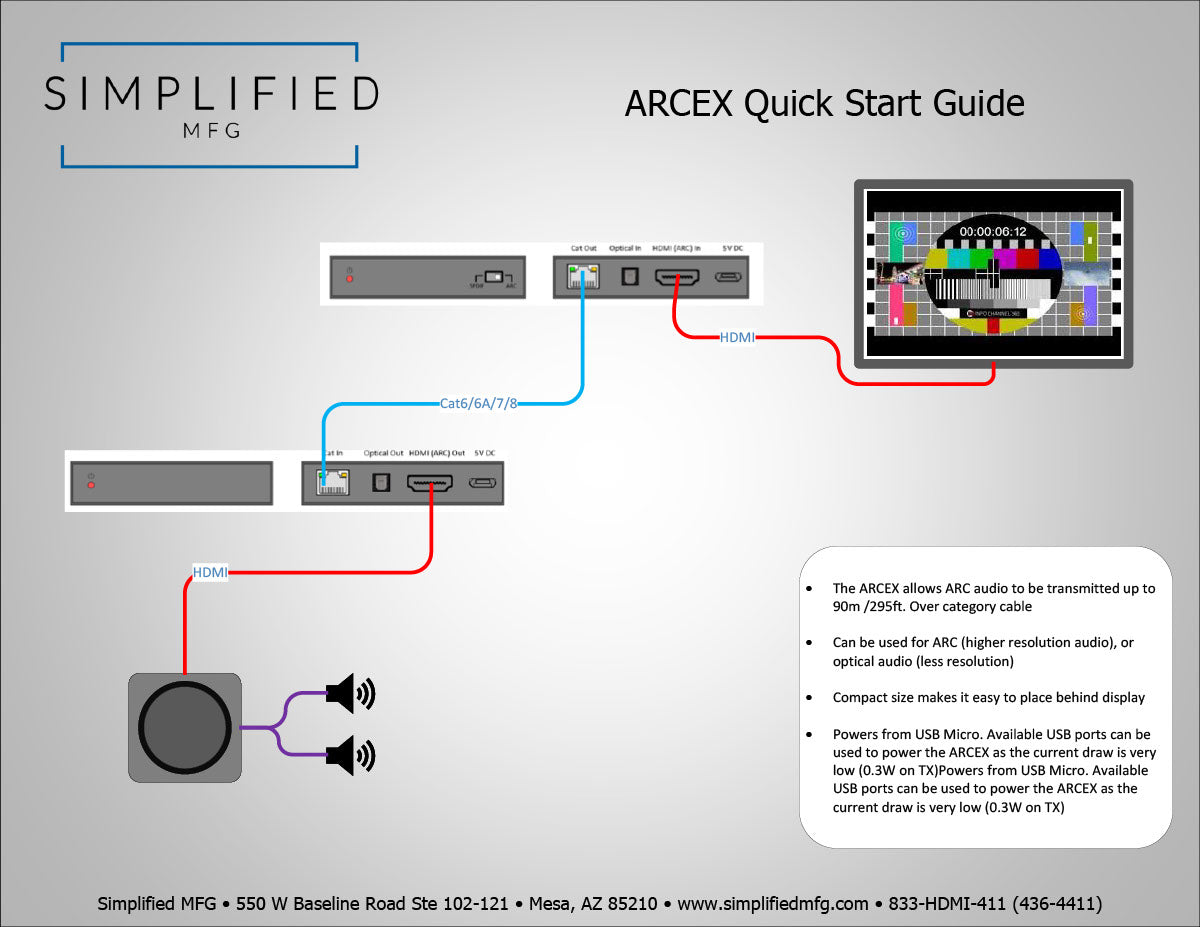

The ARCEX is a 90m digital audio extender that extends ARC up to 90m/295ft. to ARC capable audio devices. The units are powered via supplied USB power supplies. Power can be attained from display as the current draw of the TX device is about 1/3 of a Watt. RX current draw is 0.7W. CEC and all ARC formats are supported from display back to rack/AVR/ARC capable amplifier.
The ARCEX can also operate as an optical to optical extender as well (S/PDIF). There is a switch on the TX portion that will switch the unit to optical mode. This will disable ARC mode. The optical does not output on the HDMI ARC. *Cat5e may be used, but some loss of distance may occur.
Features
• Fullbandwidth ARC audio over catagory cable at 90m (295ft.)
• Optical S/PDIF is available on the unit as well
• All ARC audio formats are supported
• CEC function for volume control etc
• Very low current draw TX can power from USB or with provided power supply
• Supports 192kHz/96kHz/48kHz audio
