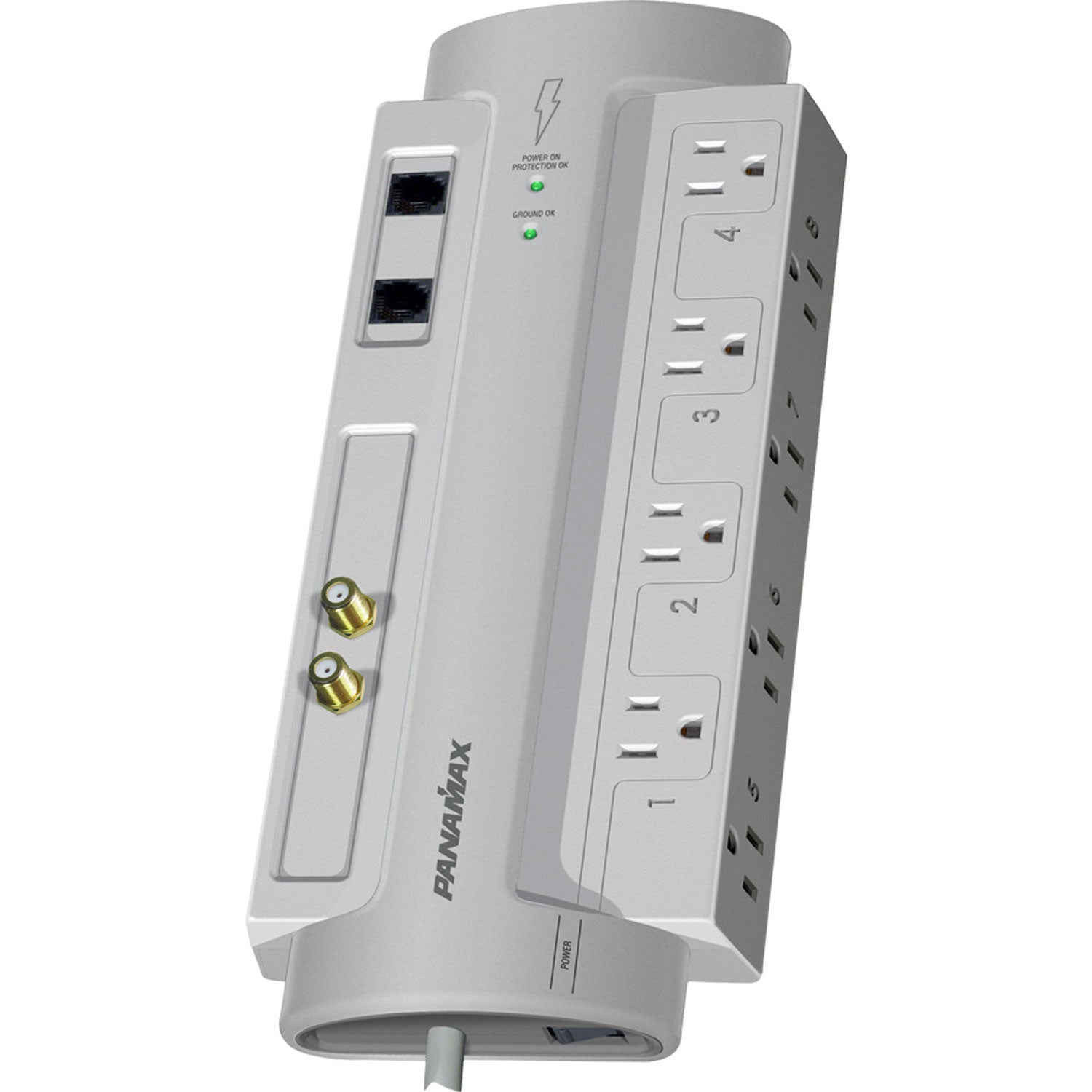

Panamax SP8-AV Surge Protector 8 AV
Panamax SP8-AV Surge Protector 8 AV is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.
Features
- Power Status LED.
- In / Out Telephone Connectors.
- In / Out Coax Connectors for Cable/Sat.
- Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
- Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
- Ground OK LED.
- 8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
- ON / OFF Power Switch and 15A Circuit Breaker.
Specifications
Voltage Protection Rating : (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing : Yes
Single Pulse Energy Dissipation : 1125 Joules
Response Time : < 1 ns
Peak Impulse Current : 60,000 Amps
Telco Protection
Wires Protected : 1 Line (3, 4)
Suppression Modes : Metallic & Longitudinal
Fuseless / Auto-reseting : Yes
Connectors : RJ-11
Clamping Level : 260V
Capacitance : 30pf (approx.)
Universal Coaxial Protection
Shielded : Yes
Insertion Loss : < 0.5 dB
Frequency Range : OMHz – 2.2 GHz
Connections : Female “F”, Gold Plated
Clamping Level : 75V
Bidirectional : Yes
