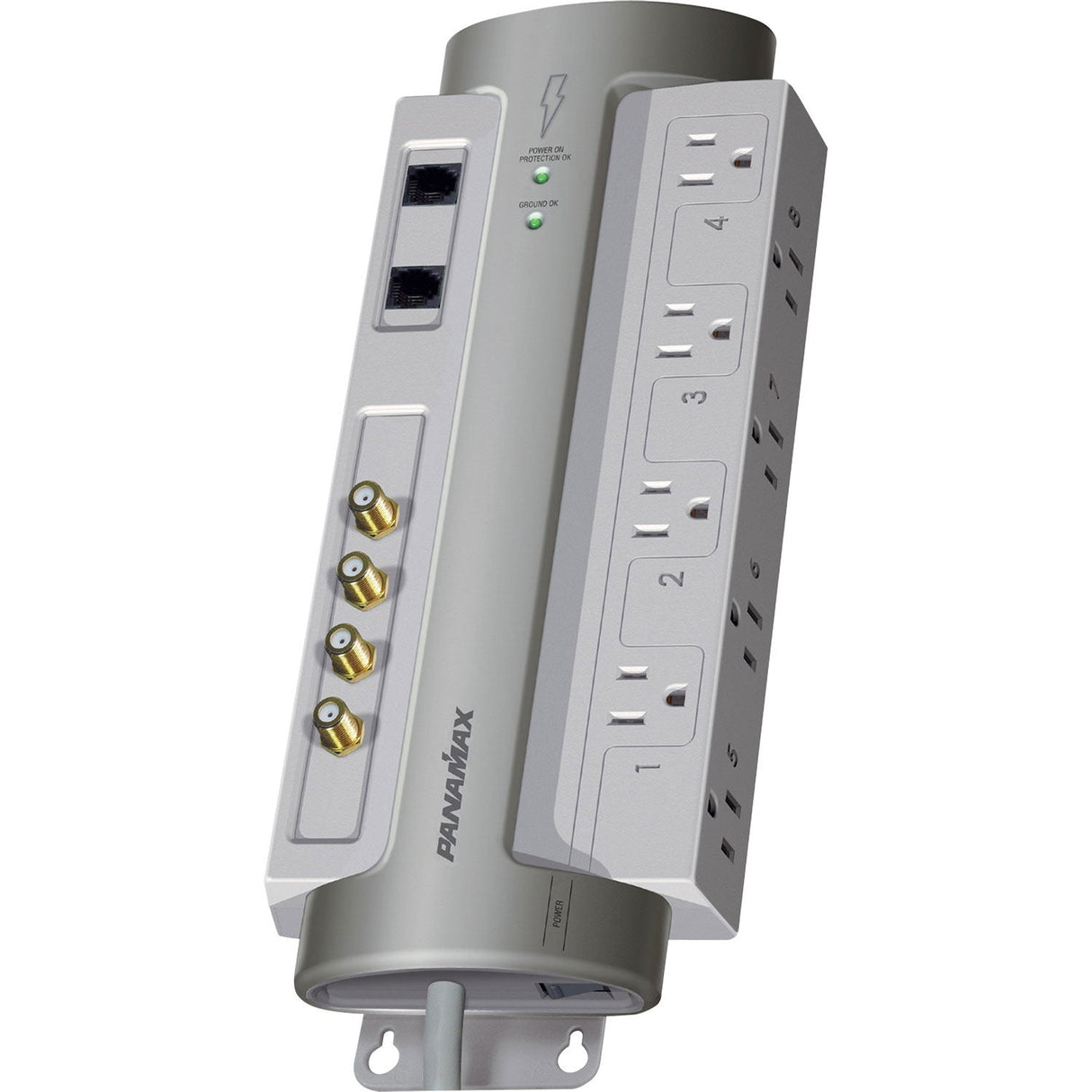

Panamax PM8-AV PowerMax 8 AV

Product Details

Improves Picture and Sound Quality

The PM8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Surge Protection

Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Safety

Engineered and built to meet the latest UL Safety requirements (UL 1449 3rd Edition)

Features

• Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.
• Protects equipment from electrical surges that travel over telephone lines.
• Eight (8) filtered and surge protected outlets.
• Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
• Hi-Def Designed to work with your High Definition system.

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1125 Joules
Response Time: < 1 ns
Peak Impulse Current: 52,000 Amps

Telco Protection
Wires Protected: 1 Line (3, 4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: OMHz – 2.2 GHz
Connections: Female “F”, Gold Plated
Clamping Level: 75V
Bidirectional: Yes
