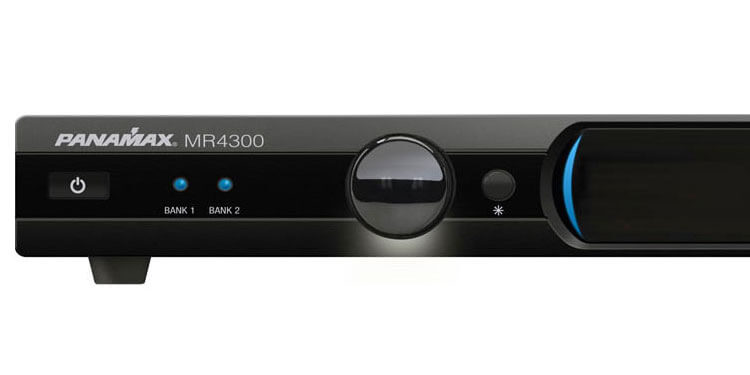

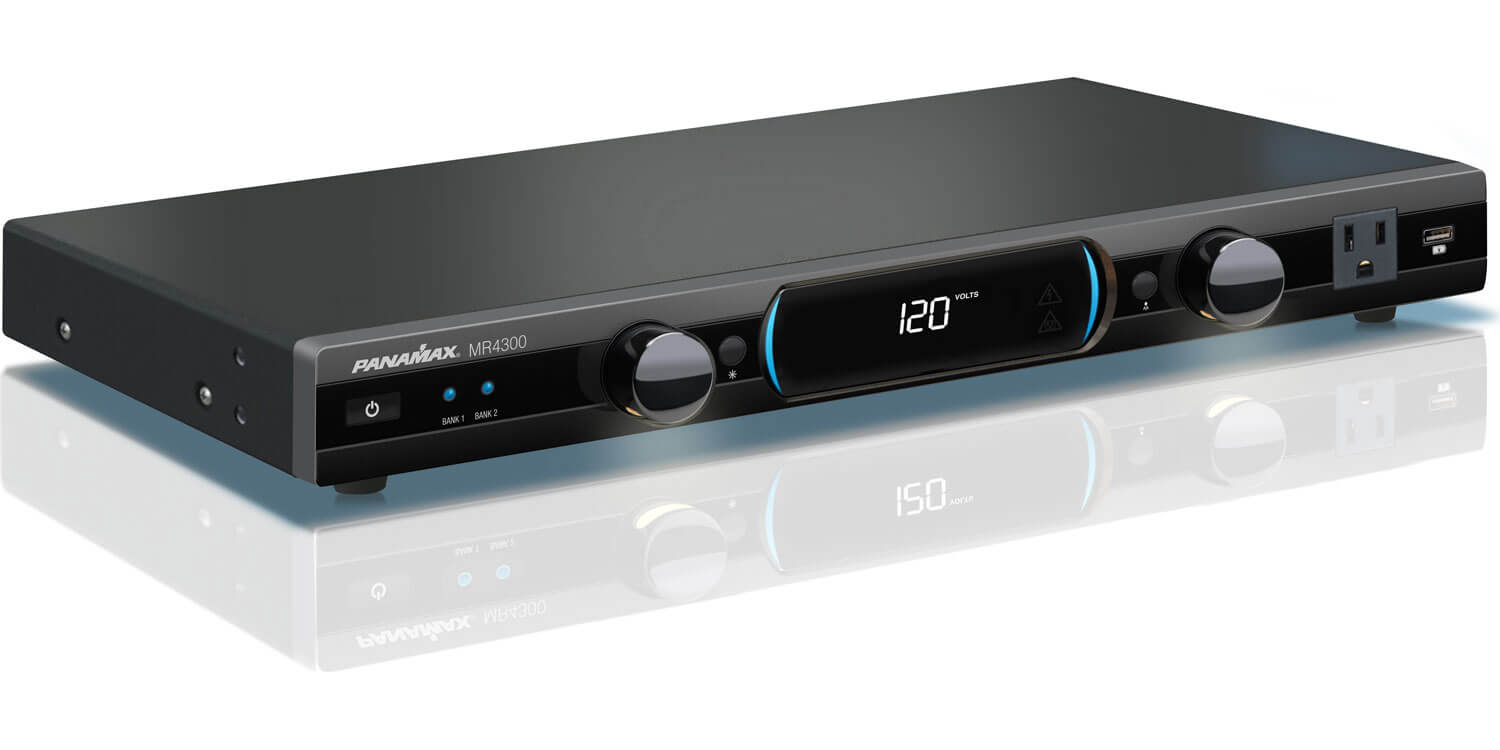

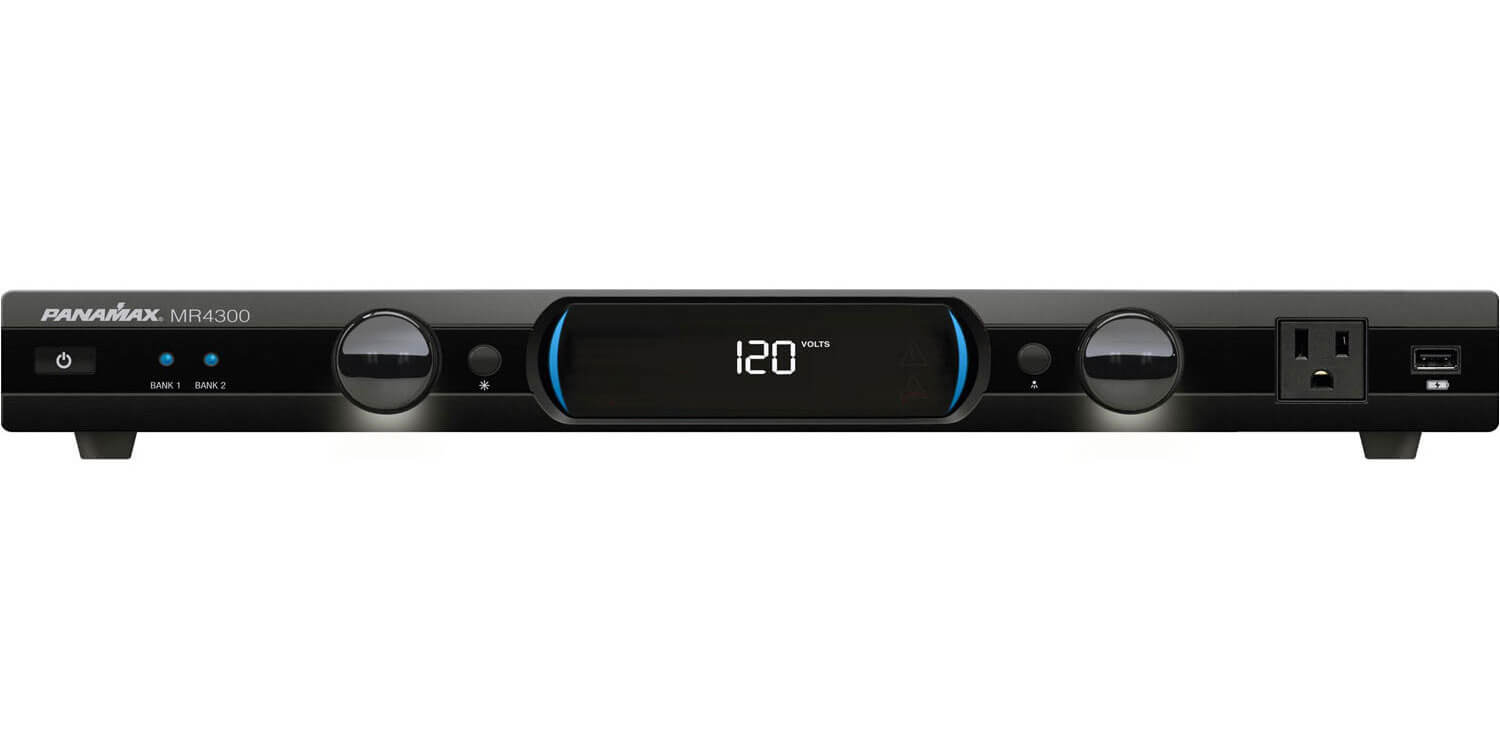

Panamax MR4300 Power Management

Product Details

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

Features

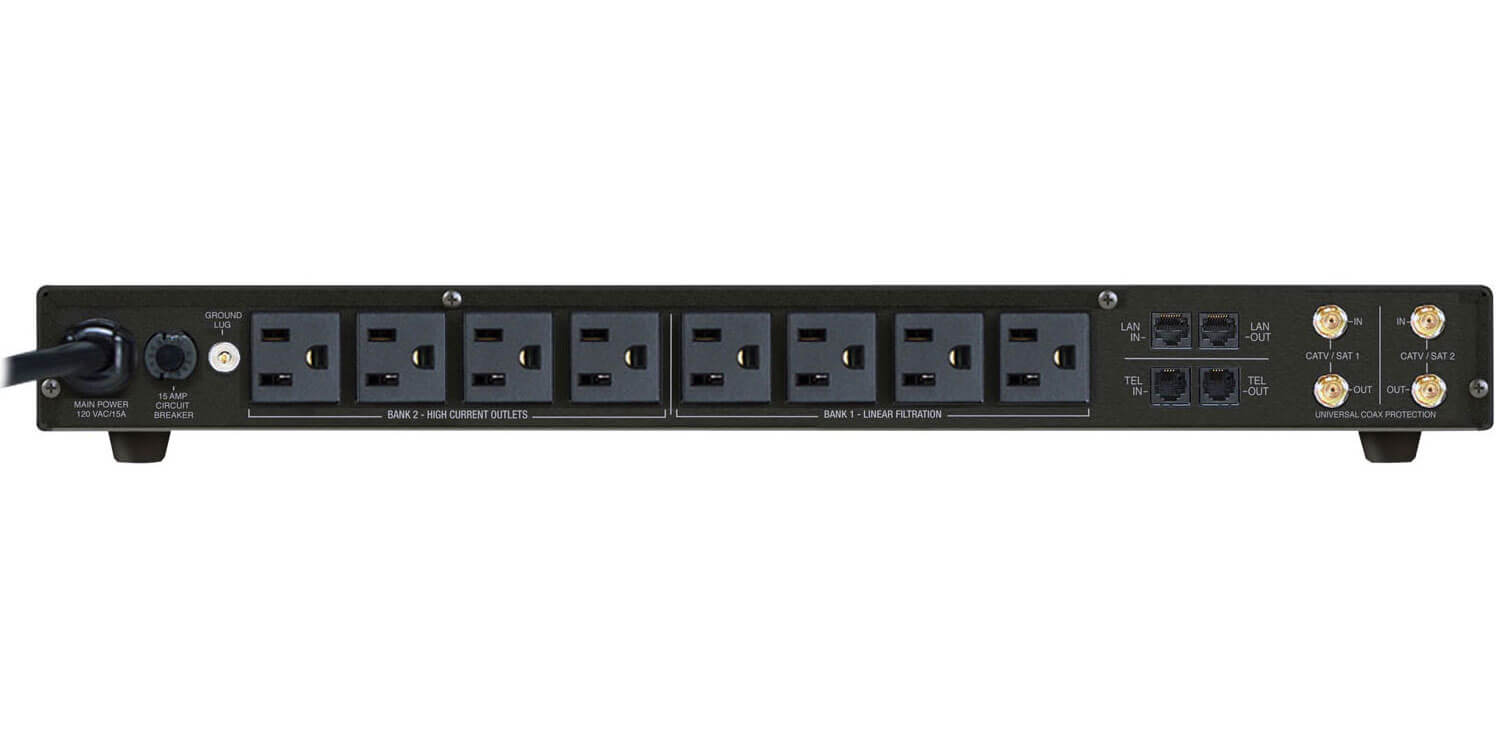

• 9 Protected & Filtered Power outlets
• Exclusive Automatic Voltage Monitoring (AVM)
• Protect or Disconnect™ Technology
• USB Charging (0.5V/5V)
• Linear Level 3 Filtration (2 Total Isolated banks) with Dedicated High Current Outlet Bank (4 Outlets)
• Antenna, Cable, or Satellite, LAN and TELCO signal protection
• Rotating & Dimmable Media Lights Illuminate Equipment
• 8 ft. Power Cable with Low Profile Plug
• Rack ears included

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
Single Pulse Energy Dissipation: 1575 Joules
Response Time: 1ns
Nominal Discharge Current (UL 1449 3rd Edition): 3,000A
LAN Protection – Wires Protected: 8-Wires
LAN – Jacks: RJ-45
LAN – Compatibility: 10/100/1000bT
LAN – Clamping Level: 62V ± 6V @ 1 mA
TEL Protection – Wires Protected: 2 Wires, 1 Pair (4, 5)
Telco – Jacks: RJ-11
Telco – Fuseless/Auto-Resetting: Yes
Telco – Clamping Level: 260V
Coax Protection – Shielded: YesCoax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes
