Panamax  |  SKU: MR4000

Panamax MR4000 Power Management

Regular price $170.14


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Product Details

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

Features

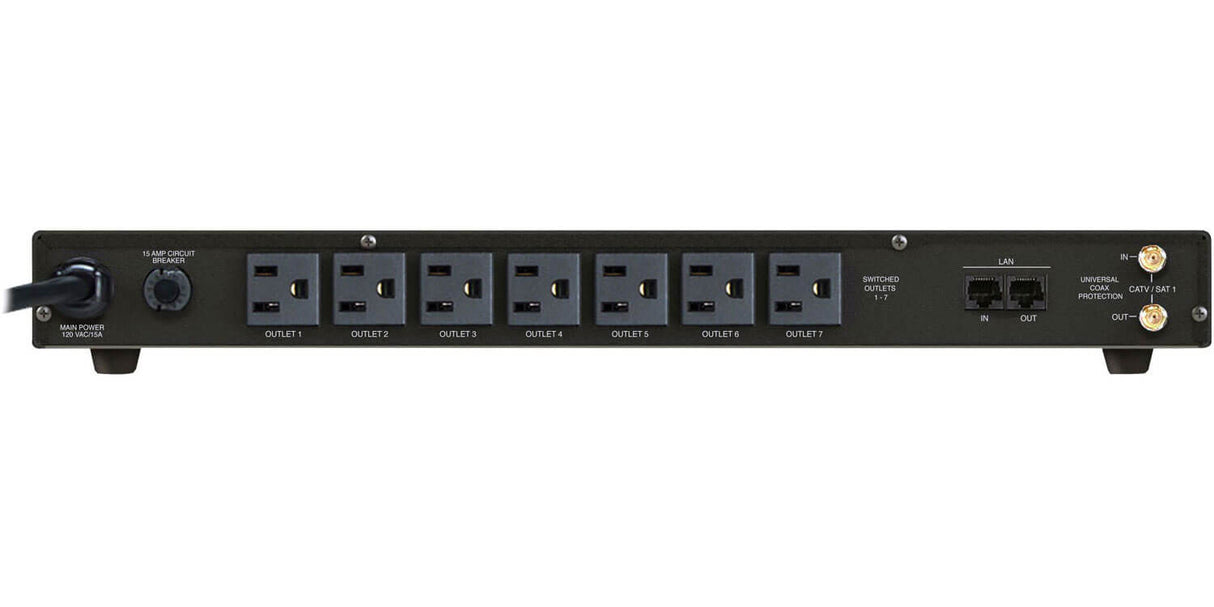

  • Eight (8) Protected & Filtered Power Outlets
  • Exclusive Automatic Voltage Monitoring (AVM)
  • Protect or Disconnect™ Technology
  • Panamax Level 2 Noise Filtration
  • Antenna, Cable, or Satellite and LAN Signal Protection
  • 8 ft. Power Cable with Low Profile Plug

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 400V
Single Pulse Energy Dissipation: 1350 Joules
Response Time: < 1ns
Peak Impulse Current: 52,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100bT
LAN – Clamping Level: 50V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections : Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes
