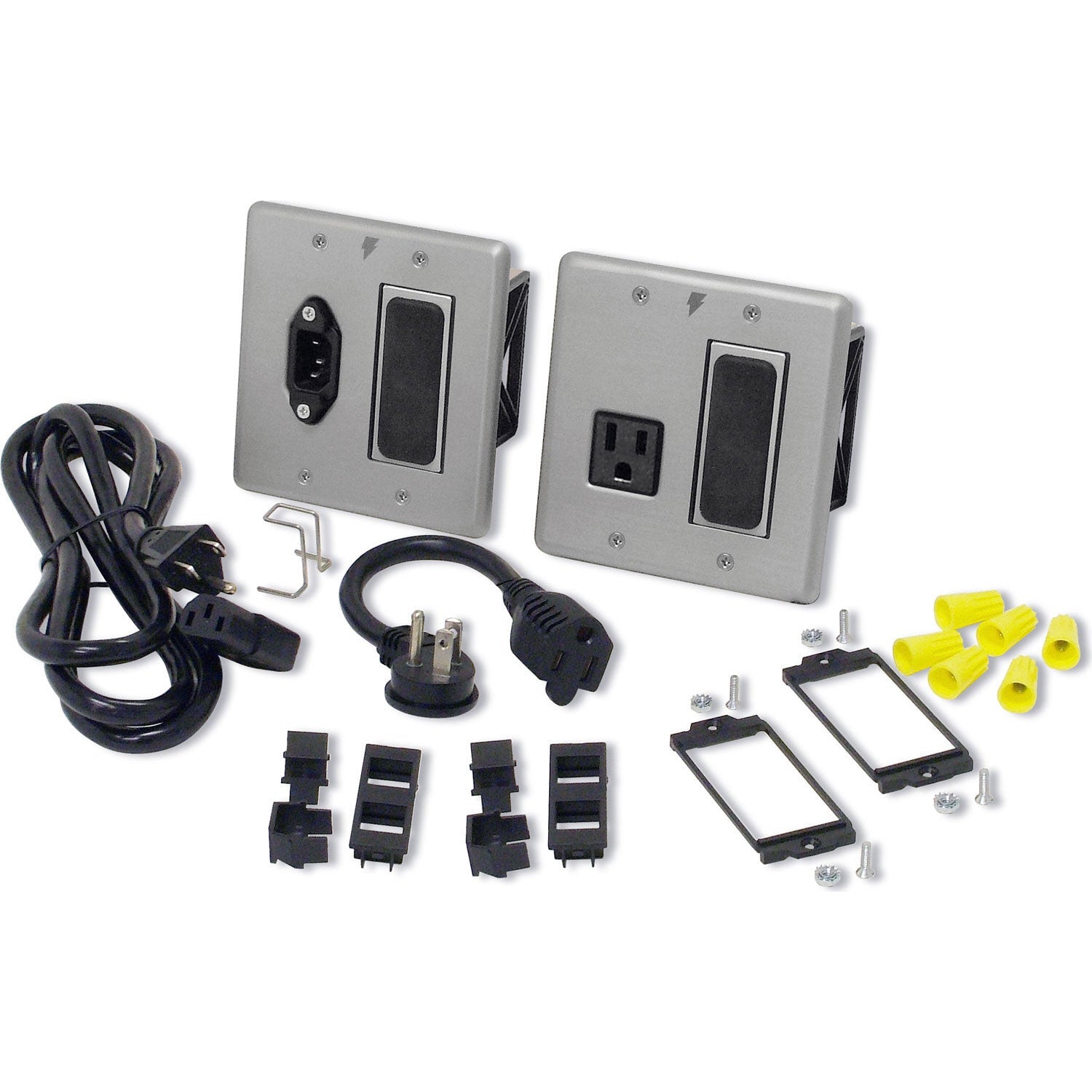

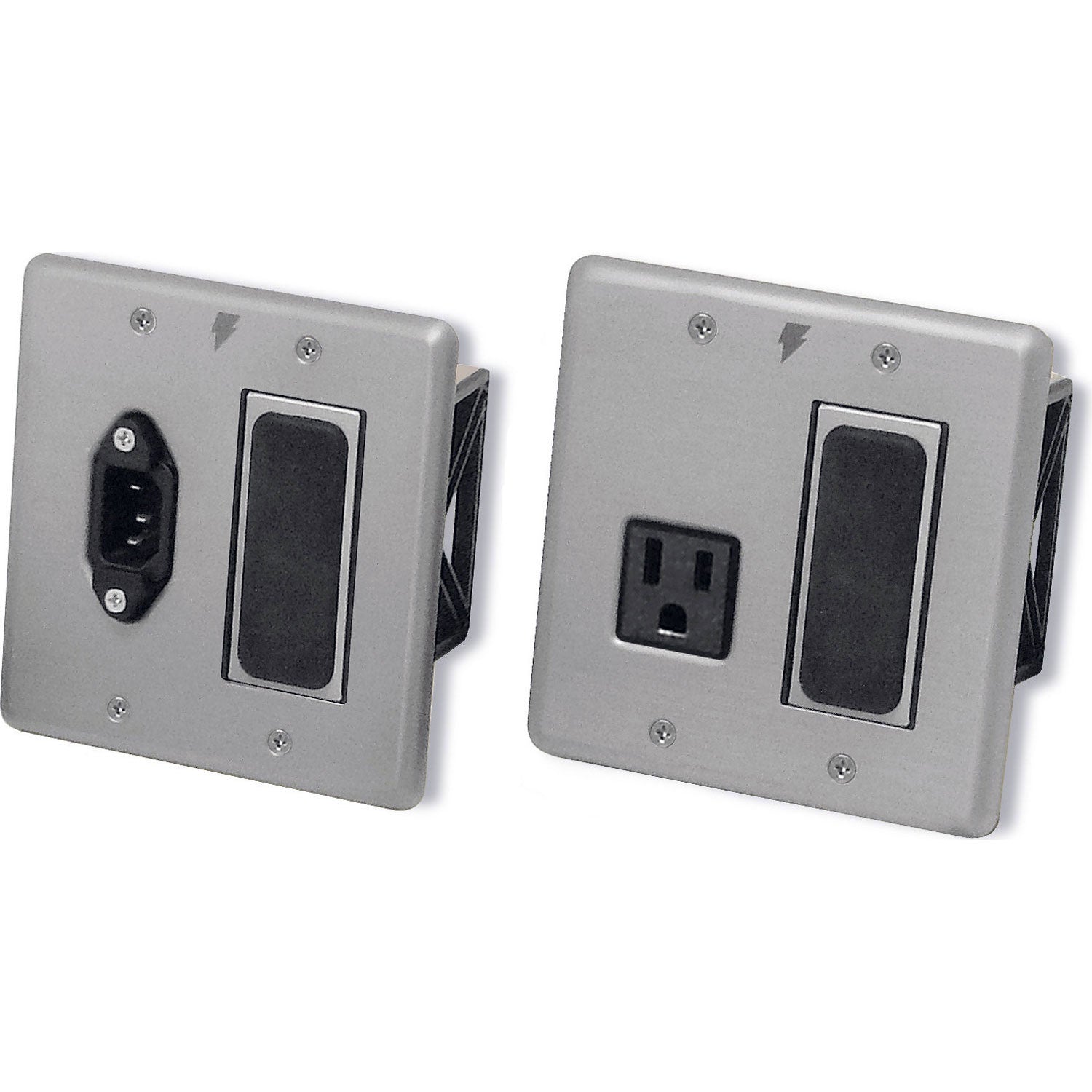

Panamax MIW-XT Max-In-Wall Power & Signal Bay, 15A Code Compliant Extension System

Product Details

MIW-XT extends noise free, safe power from Panamax / Furman Power Management components to remote panel displays, ceiling mounted video projectors and powered sub-woofers. Discreetly hides behind electronic equipment for a neat, clean, code compliant and professional installation.

Features

• Ultra-thin profile can allow equipment to hang less than one inch from the wall.
• EMI/RFI noise filtration built into outlet receptacle.
• Power and signal lines are hidden in the wall behind panel displays for a clean, tidy and professional installation.
• Extend Connected Equipment Policy to remote equipment when used with Panamax/Furman Power Management components.
• Accommodates optional MIW Signal Line Modules (sold separately, contact Panamax or Furman).
• CSA Certified for code compliant installations.
• 3 Year Product Warranty

Specifications

General

Family: In Wall

Line Voltage: 120 (Volts)

Number of Outlets: 1

Outlet Descriptions: 1 filtered outlet

Compliance: CSA

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 6 ft. detachable inlet power cord. 11 inch flat plug output cord.

Dimensions: 4.75" W x 0.25" D x 4.75" H

AC Protection

AC Protection Technology: N/A

Undervoltage Shutoff: N/A

Over-Voltage Shutoff: N/A

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: N/A

Filtration

Filtration Technology: RFI/EMI Filtration

Signal Line Protection: No

Shipping Info

Length: 7.7 (Inches)

Width: 5.2 (Inches)

Height: 6.9 (Inches)

Weight: 2.9 (Lbs)

Unit of Measure: Each

UPC: 050616008488

Master Pack Qty: 6
