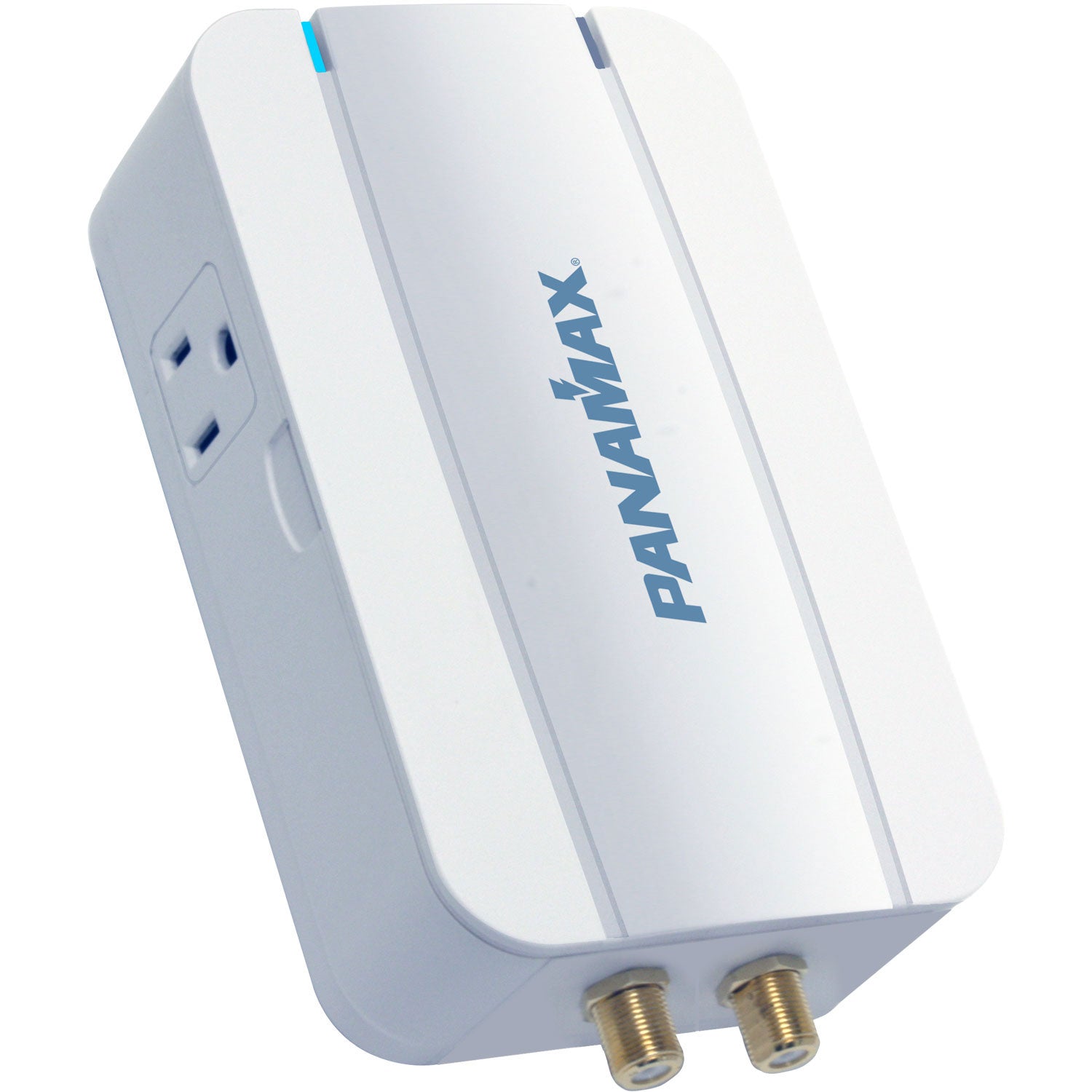

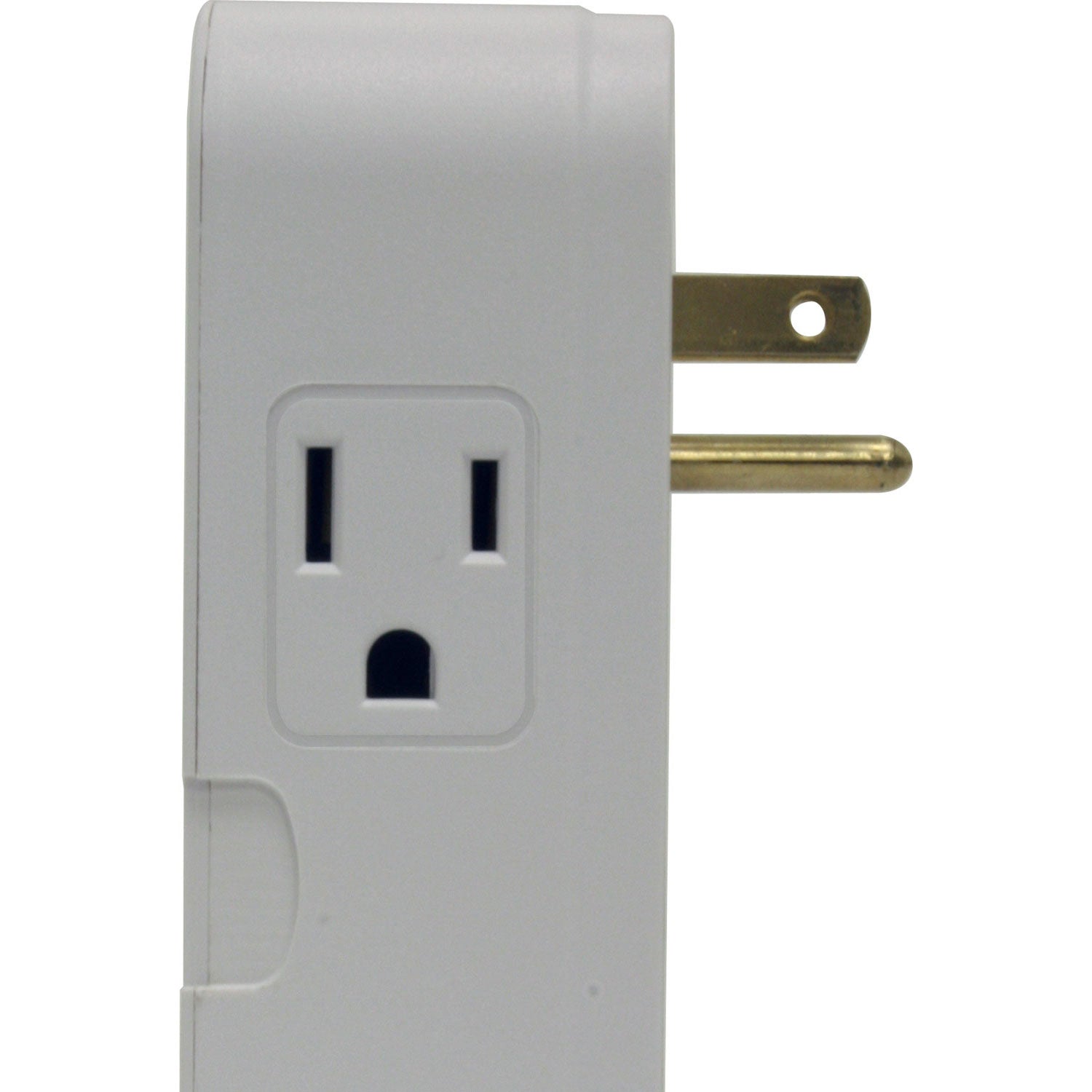

Panamax MD2-C 2 Outlet Direct Plug-In Surge Protector with Coax.

Product Details

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

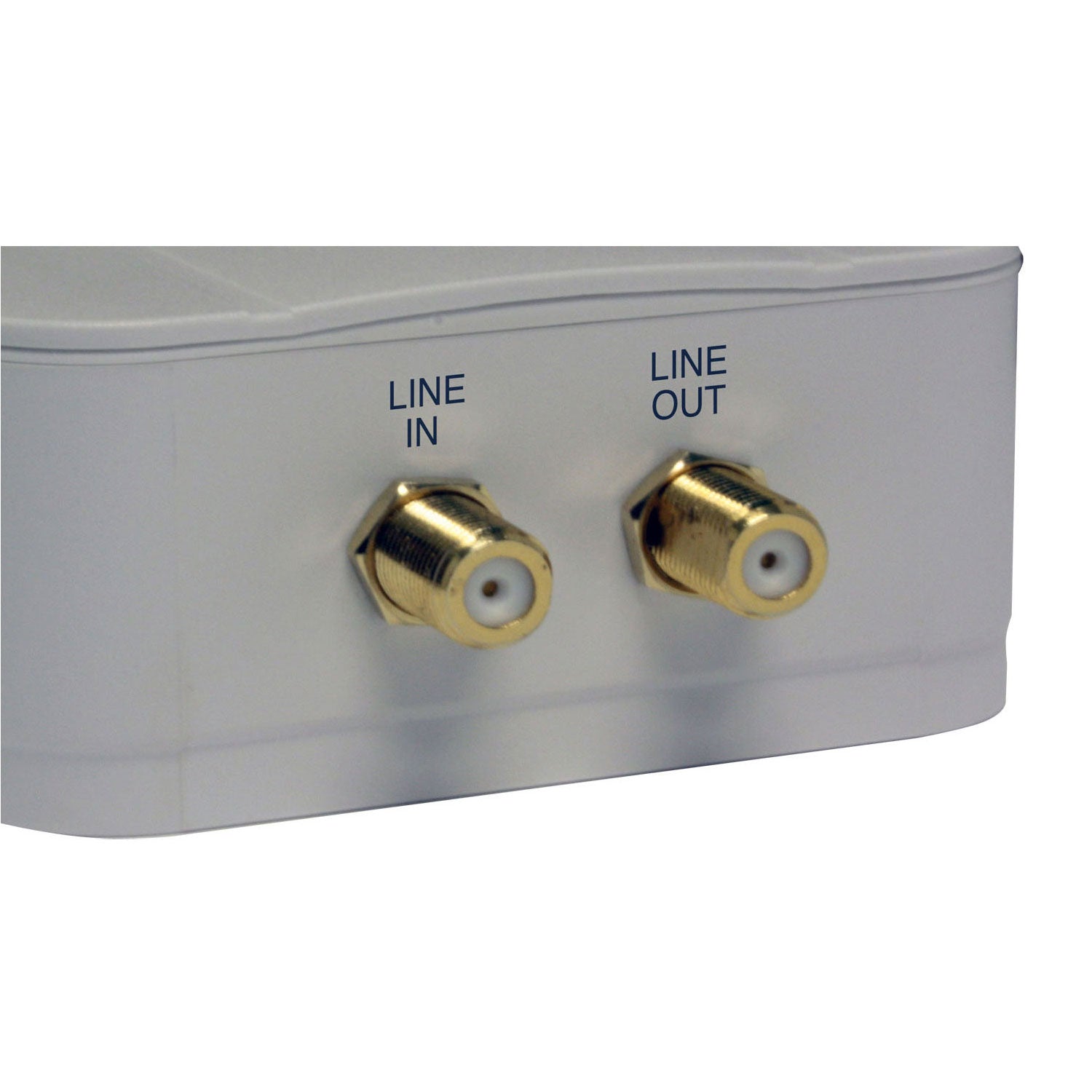

Coaxial Protection

One Pair of Universal CATV/SAT/ANT connectors. Protects equipment from electrical surges that travel over low voltage LAN/Tel lines.

$100,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $100,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.

Features

• EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
• Protect-or-Disconnect™ Circuitry
• Universal CATV/SAT/ANT Connectors.
• Removable, paintable cover ensures seamless fit with any décor.
• Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
• Thin Profile – Only 1.5″ inches deep.
• Convenient display feature; turn cover around to hide diagnostic lights

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1350 Joules
Response Time: <1 ns
Peak Impulse Current: 60,000 A
Nominal Discharge Current: 3,000 A

Coax Specifications
Insertion Loss: < 5 dB
Frequency Range: 0MHz – 2.2GHz
Connectors: Female “F”
CATV/Sat Clamping Level: 75V
