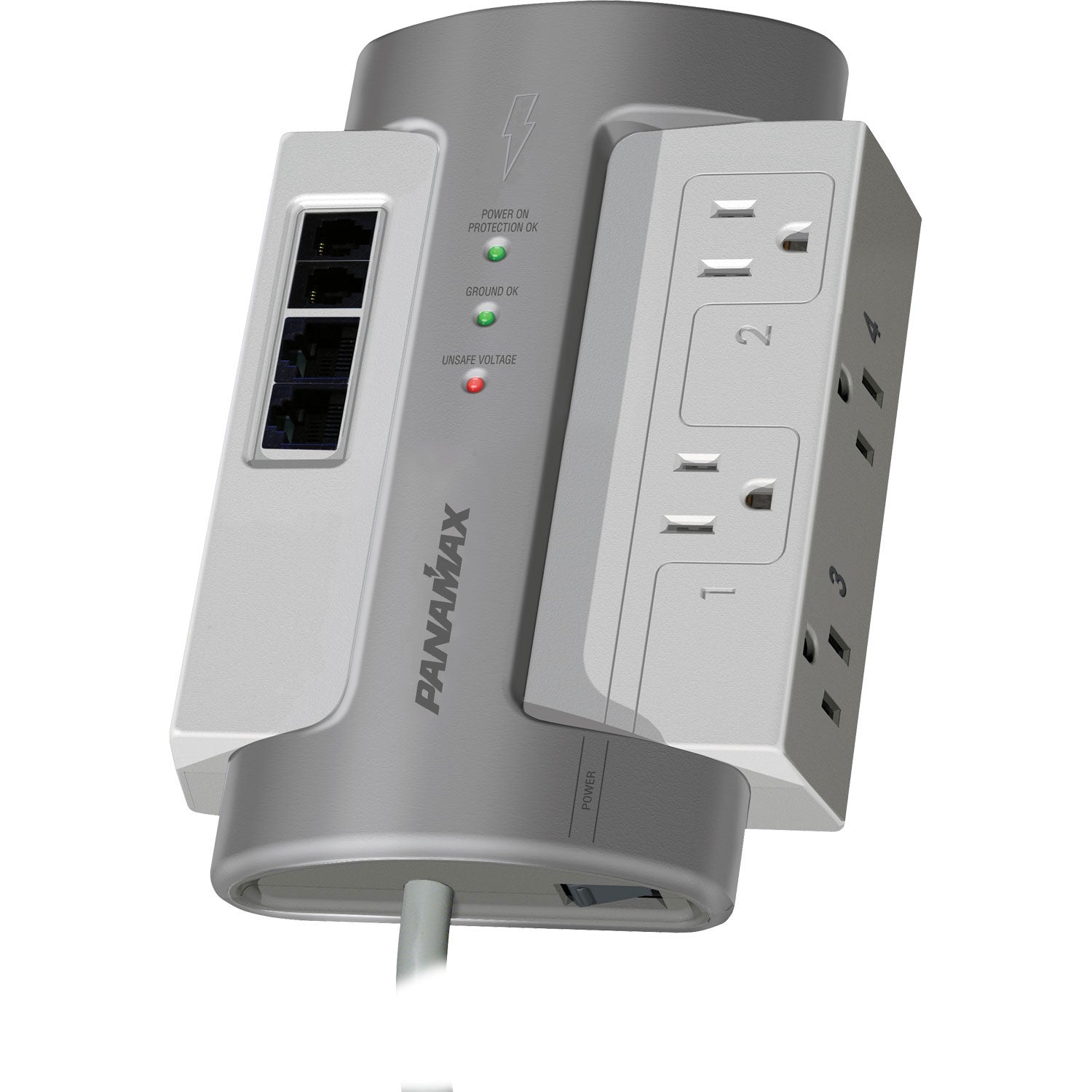

Panamax M4LT-EX Max 4 Tel and Data
Panamax M4LT-EX Max 4 Tel and Data is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
Noise Filtration/Surge Protection for All Home/Office Equipment
Features
- RJ-11 Phone line IN/OUT connectors.
- RJ-45 CAT5e IN/OUT LAN connectors.
- Power indicator LEDs.
- Four (4) protected AC receptacles with tranformer spacing
- Exceeds UL Safety Standards
- Solid-State Telephone Line Protection
- Compatibility 10/100/1000 BASE-T (CAT 5e)
- Includes DSL Phone Line Splitter
- Four AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accomodate System Expansion
Specifications
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes
LAN Protection
Wires Protected: Pins 1-8
Suppression Modes: Differential & Common Ground
Connectors: RJ-45
Compatability: 10/100/1000 BASE-T (CAT 5e)
Clamping Level: 62V
Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless/Auto-Resettable: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)
