Panamax M4320-PRO 1 RU 20 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord
Panamax M4320-PRO 1 RU 20 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Product Details
The M4320-PRO features Panamax™ revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4320-PRO
Features
Power Management with Control System Interactive Functionality.
- 20 Amp Capacity M4320-PRO

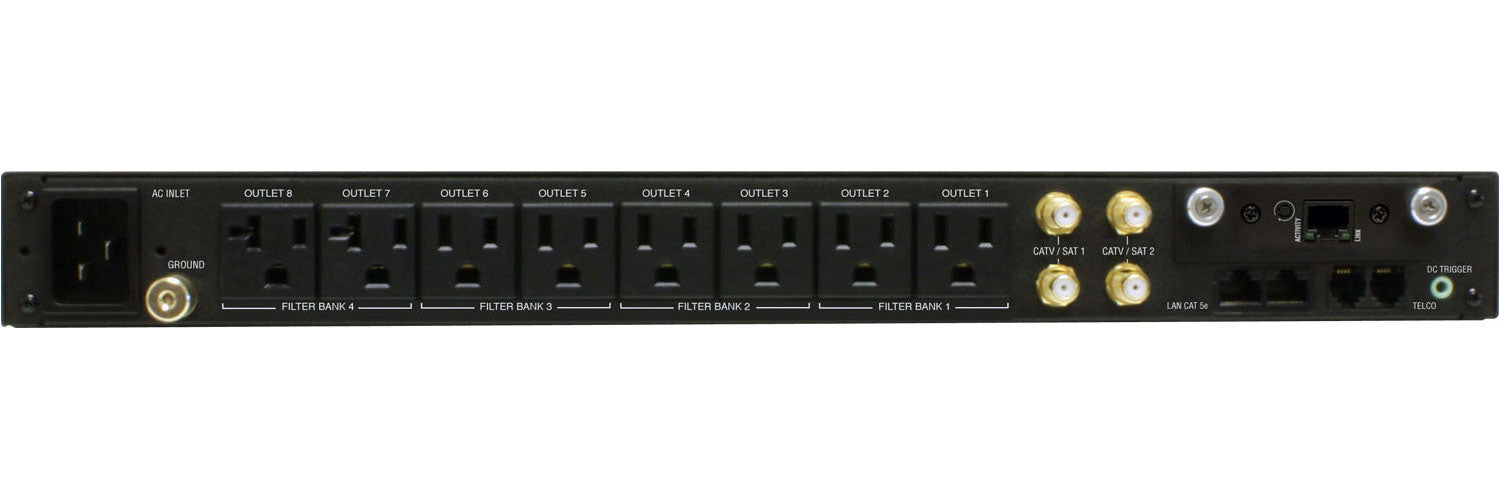

- 8 Individually Controllable Rear Panel Outlets
- Fully Programmable
- TCP/IP (BlueBOLT™) Installed
- Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
- One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
- Front Panel Circuit Breaker
- Removable Front Rack Ears
- 12 Volt Input Triggering
- Detachable 10 ft. Power Cord – 20A plug
- AVM & Protect-or-Disconnect Circuitry
Specifications
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Single Pulse Energy Dissipation: 2700 Joules
Peak Impulse Current: 135,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100/1000 BASE-T
LAN – Clamping Level: 60 ± 5V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes
