Panamax  |  SKU: M2A20

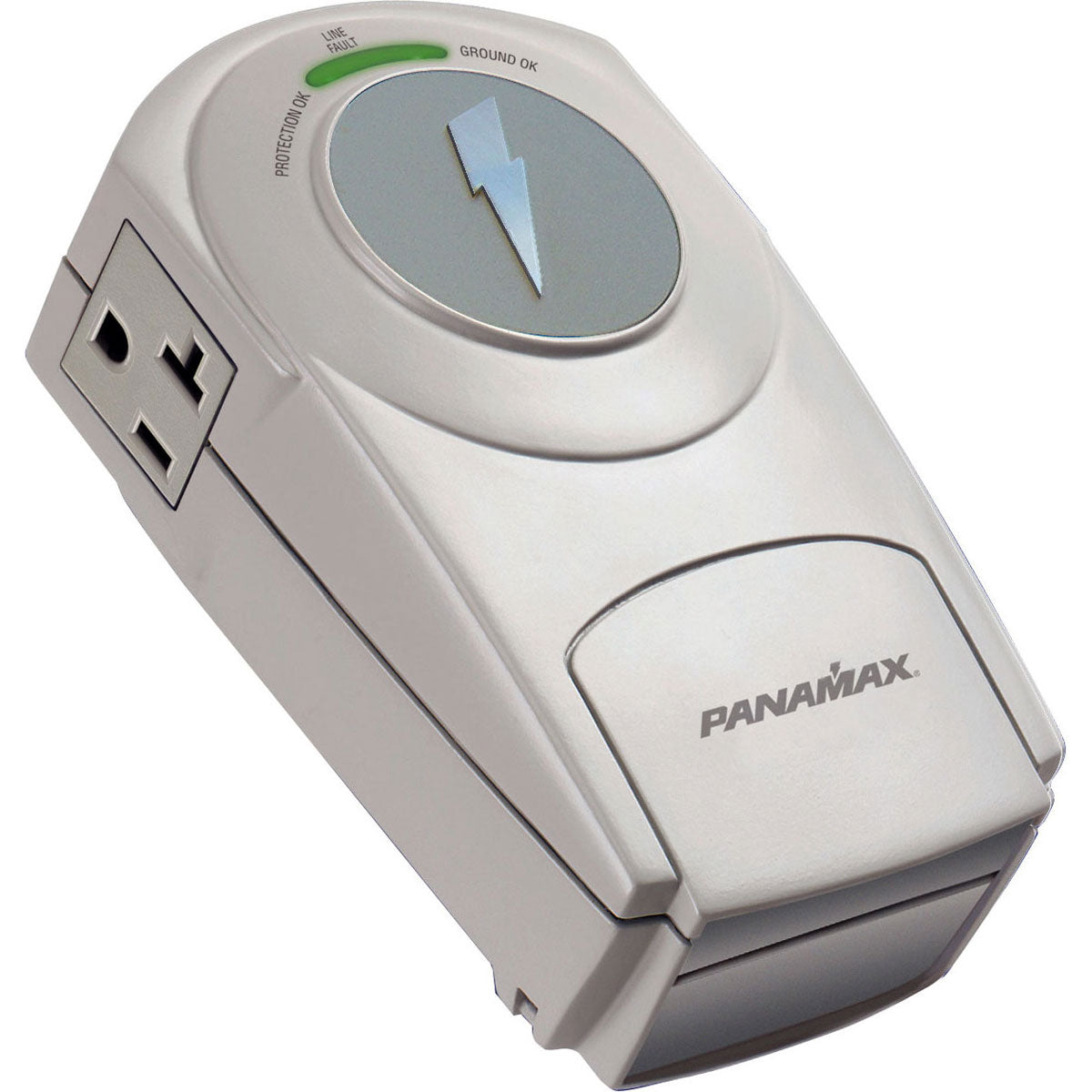

Panamax M2A20 2 Outlet Direct Plug-In Surge Protector 20 AMP

Regular price $52.44


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Product Details

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Signal Perfect™ Circuitry

Optimized phone line surge protection circuitry ensures a clean, clear signal. It features solid-state SIDACtor® and autor-resetting PTCR’s for maximum protection and reliability.

$5,000,000 Limited Connected Equipment Protection Warranty

Panamax will protect your equipment or we will repair or replace up to $5,000,000!

Lifetime Product Warranty

The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.

Product Upgrade Offer

See policy for details on upgrade offer to replace damaged units

Features

  • Two 20 Amp AC Outlets
  • Protect-or-Disconnect™ Circuitry
  • Convenient security feature; attach the protector to your equipment’s power cords.
  • Three diagnostic lights indicate wiring integrity and protection status.
  • Space-saving design plugs directly into wall outlet.
  • Convenient security feature; attach the protector to your equipment’s power cords.
  • Versatile outlet orientation accommodates the widest range of plug styles including transformers and right angle plugs

Specifications

AC Power

UL 1449 Suppression Rating 330V
Thermal Fusing Yes
Single Pulse Energy Dissipation 1350 Joules
Response Time <1 ns
Protection Modes L-N, L-G, N-G
Protect or Disconnect™ Circuitry Yes
Peak Impulse Current 52,000 A
Maximum Current Rating 20A (2400 W)
Line Voltage 120 VAC, 50/60 Hz
Initial Clamping Level 200V
EMI/RFI Noise Filtration 50 dB (100 kHz – 1 MHz)
Catastrophic Surge Circuit Yes

General

Weight .75 lb.
Dimensions 3.12 in. W X 5.5 in. D X 2 in. H

Agency Approvals & Warranty

UL® 1449 Rating 330V
Product Warranty Lifetime
Lightning Protection Yes
Connected Equipment Protection Policy Up to $5,000,000

Downloads

User Manual

Datasheet
