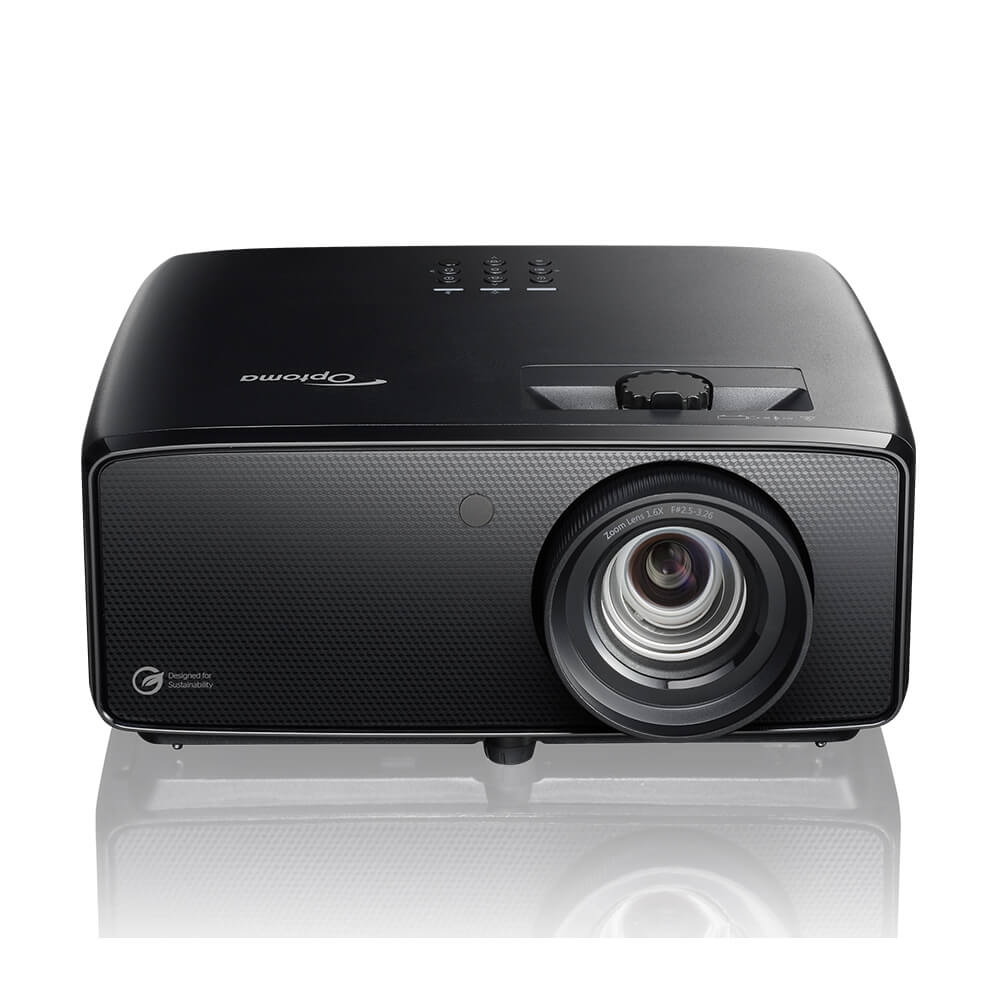

Optoma Home Theater UHZ58LV 4K Dual Laser Projector

Optoma Home Theater UHZ58LV 4K Dual Laser Projector

Product Details

Specifications

Display/image Display technology DLP®

Brightness 3,000 ISO lumens

Contrast ratio 3,000,000:1

Native aspect ratio 16:9

Horizontal scan rate 15~255 KHz

Resolution Aspect ratio - compatible Vertical scan rate Display modes PureEngine Ultra 4K UHD (3840 x 2160)

4:3, 16:9, V-Stretch, Full, 21:9, 32:9, Native, Auto

24~240Hz, 240 Hz for 1080P

Vivid, HDR, HLG, Cinema, Game, Reference, WCG, Bright, HDR10+, 3D, ISF Day, ISF Night, ISF Day HDR,

ISF Night HDR, Filmmaker

PureContrast, PureLight, PureColor, PureMotion (MEMC), PureDetail

YUV 4:4:4 8-bit, YUV 4:2:2 8-bit, YUV 4:2:0 8-bit/10-bit/12-bit

Uniformity 80%

Color gamut coverage 95% DCI-P3

HDR HDR10+, HDR10, HLG

Image certifications HDR10+, Filmmaker Mode

Color space & bit depth Image size 20.2” ~ 320.4”

Light Source Light source type Dual Laser

Light source life 30,000 hours (Eco mode)

Optical Throw ratio 1.4 ~ 2.24:1

Projection distance 82.6" ~ 501.3"

Zoom 1.6x

Zoom type Manual

Focal length (mm) 20.91~32.62mm

Lens shift V : 103% ~ 118%

Native offset 118% ±5%

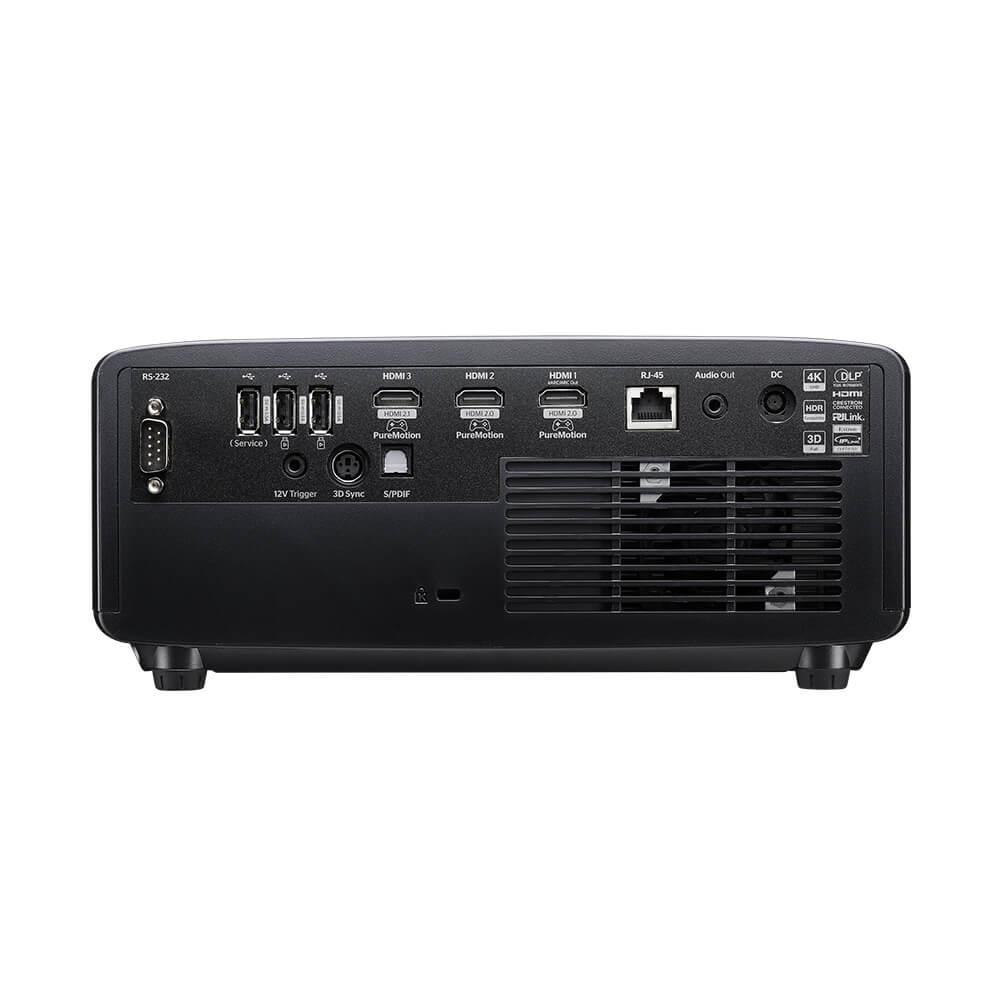

Connectivity Connections Inputs 1 x HDMI 2.1, 2 x HDMI 2.0 (eARC-in/eARC-out)

Outputs 1 x USB-A power 1.5A, 2 x USB-A power 0.5A,

1 x 3D sync, 1 x Audio 3.5 mm mini jack, 1 x S/PDIF

Control 1 x RJ45, 1 x RS232, 1 x 12V trigger

General Noise level (min) 28dB (Eco mode)

Noise level (max) 32dB (Bright mode)

eARC Audio formats Dolby ATMOS, Dolby Digital Plus, Dolby Digital 5.1

3D Supported (DLP link 3D/IR 3D, HDMI 1.4a mandatory 3D timing)

Security Security bar, Kensington Lock, Password protected interface

OSD / display languages 27 languages: English, Arabic, Czech, Danish, Dutch, Farsi, Finnish, French, German, Greek, Hungarian,

Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romania, Russian, Simplified Chinese,

Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese

24/7 operation Yes

360° operation Yes

Operating conditions Max Temperature(operating):0 ~ 40°C; Tolerance +/- 2°C, 30°C,Max humidity(operating): 80% RH, non-condensing

Max Altitude(operating): 10,000 ft., for 0°C ~

Gaming Input lag 1080p60Hz 17.8ms, 1080p120Hz 12.4ms, 1080p240Hz 8.5ms, 4K60Hz 17.8ms

Remote control Backlit home remote

Speaker count & Watts per speaker 1 x 15W

Applications Display Share, Optoma File Manager with 4K Media Player and Cloud Support (Dropbox, Google Drive,

OneDrive)

In the box AC power cord, Remote control, Quick start user manual

Networking LAN - control Yes

Power Power supply 100 ~ 240V, 50 ~ 60Hz

Power consumption (standby) ≤0.5W

Power consumption (eco mode) 110W (typical), 127W (max)

Power consumption (bright mode) 207W (typical), 239W (max)

Weight and dimensions Dimensions (W x D x H) 10.8 x 8.5 x 4.5 inches

Gross weight 11.02lbs

Net weight 7.2lbs
