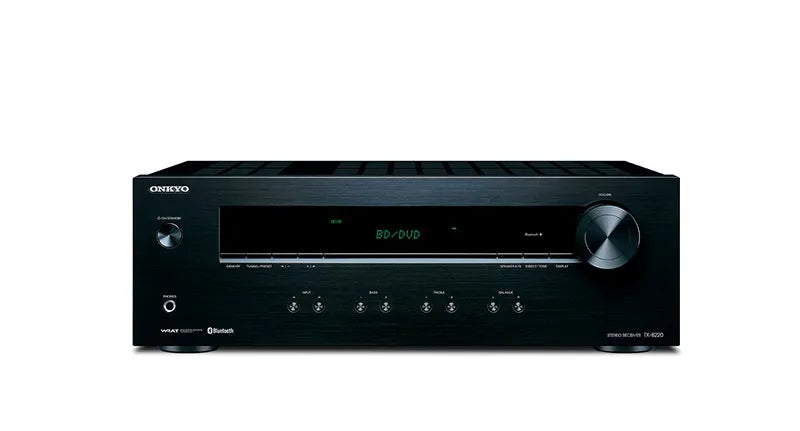

Onkyo TX-8220 2-Channel Stereo Receiver with Built-In Bluetooth
Onkyo TX-8220 2-Channel Stereo Receiver with Built-In Bluetooth is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Onkyo TX-8220 2-Channel Stereo Receiver with Built-In Bluetooth
Highlight title
Text to highlight a key feature of your product
Description
Description
Onkyo TX-8220 2-Channel Stereo Receiver with Built-In Bluetooth
Product Details
Universal connectivity meets pure analog amplification in a simple hub that sounds a whole lot better than its modest price suggests.
Specifications
Amplifiers |
|
| Power Watts/Ch (6 Ohms 1kHz, 2 Ch Driven, FTC) | 100, 0.10% THD |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 45, 0.08% THD |
| Dynamic Power | 140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front) |
| WRAT (Wide Range Amplifier Technology) | ✓ |
| H.C.P.S. (High Current Power Supply) | - |
| Non-Phase-Shift Amp Design | ✓ (for Realistic Sound Imaging) |
| 6 Ohm Capable | ✓ |
| 4 Ohm Capable | ✓ |
| Direct/Pure Mode | ✓/- |
| 384K/32 Bit DACs | - |
| 192K/24 Bit DACs | ✓(PCM1754)) |
Connectivity |
|
| Audio Input/Output | 4/1 |
| Phono Input | ✓ |
| Digital Audio IN (Opt/Coax) | 1/1 |
| Auto Power On When Signal is Detected | - |
| Zone 2 Line Out | - |
| Zone 2 Digital to Analog Audio Conversion | - |
| Speaker A/+B | ✓ |
| Subwoofer Pre-out | ✓ |
| Headphone Jack | ✓ |
| Bluetooth | ✓ (Version 4.1, A2DP/AVRCP) |
| Internet Radio Capable | - |
| Spotify Connect Support | - |
| Streaming Audio From PC / Network | - |
| Hi-Res Streaming Audio Formats | - |
| Supports Onkyo Remote App | - |
| Wireless Network | - |
| USB Input | - |
| AirPlay | - |
| Firmware Updates via Network/USB | ✓ |
Miscellaneous |
|
| Quick Access BGM Presets | - |
| Number of AM/FM Presets | 40 |
| Preset Station Naming | ✓ |
| Direct Access Tuning | ✓ |
| Automatic/Manual Tuning | ✓ |
| Sleep Timer | ✓ |
| IR Input | - |
| IR Output | - |
| RI-Compatible Remote Control | ✓ |
| Warranty | 2 YEARS |
Specs:
Amplifier Section |
|
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 45, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 2 Channel Driven) | 100, 10% THD |
| Dynamic Power | 140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front) |
| THD + Noise | 0.08 % (20hz-20kHz, Half power) |
| Frequency Response | 10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode) |
| S/N Ratio | 100 dB (IHF-A, Line In, Speaker Out) 93 dB ( IHF-A, Phono In, Speaker Out) |
| Phono Overload (1 kHz) | 40 mV (MM, 1 kHz, 0.5%) |
Tuner Section |
|
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 Stations |
General |
|
| Power Supply | AC 120 V˜, 60 Hz |
| Power Consumption | 2.7 A |
| Standby Power Consumption | 0.4 W |
| No-Sound Power Consumption | 20 W |
| Network Standby Power Consumption | 2.9 W |
| Dimensions (W x H x D) | 17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 328 mm) |
| Weight | 15.0 lbs. (6.8 kg) |
