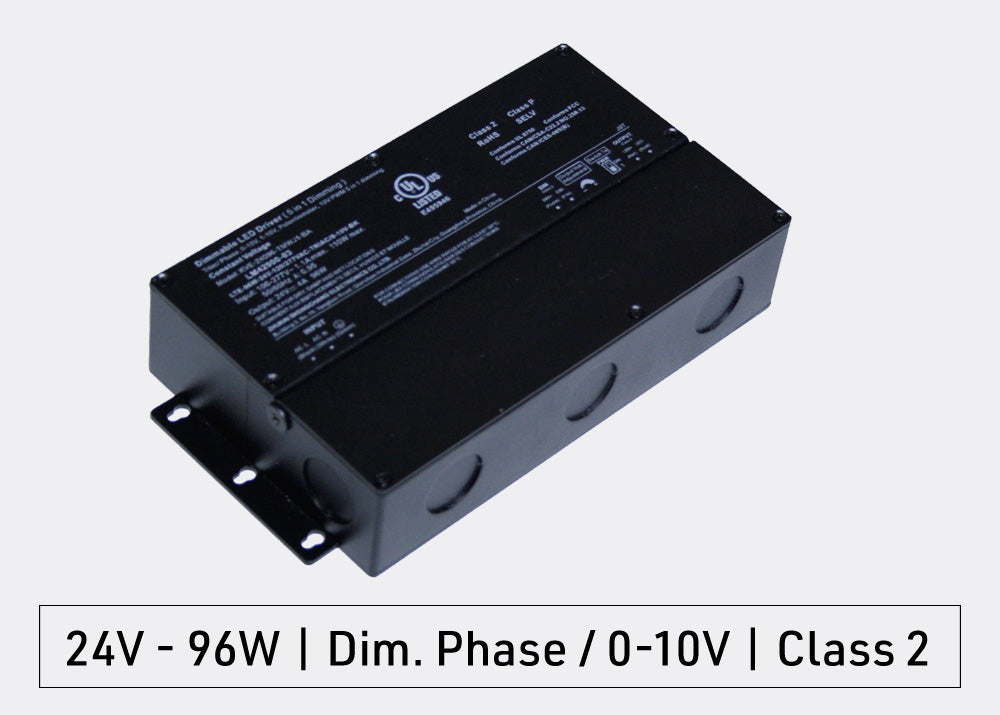

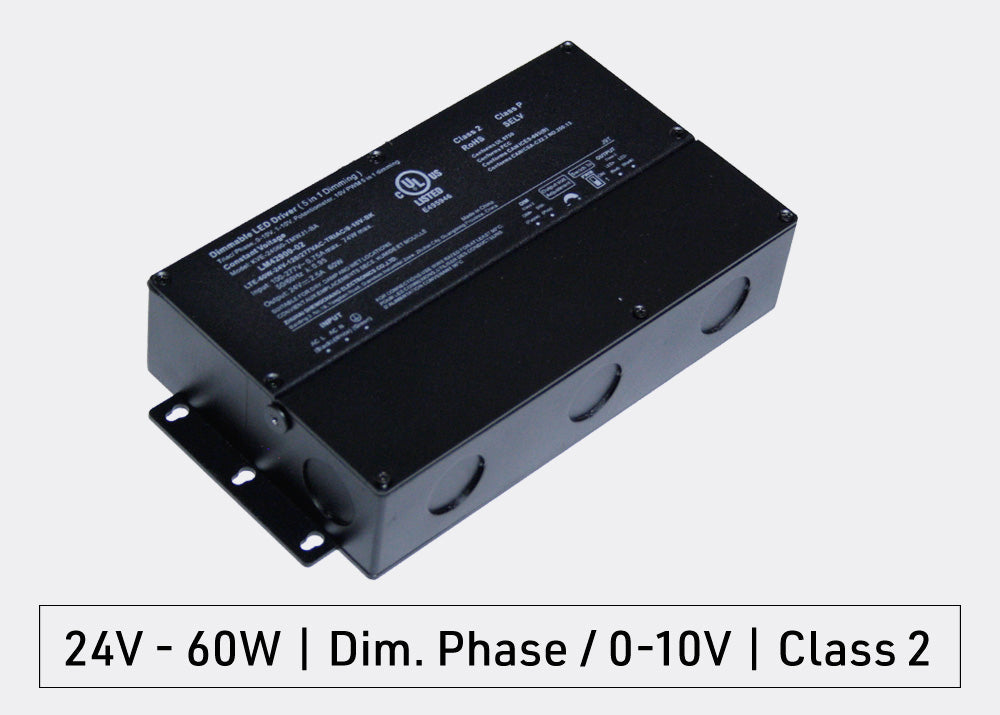

Lumentruss Universal 24V LED Driver, 120/277V
Product Details
The LTE series offers a versatile range of high-performance dimmable LED drivers designed for precision and reliability in professional lighting applications. Featuring a 24V adjustable output, these drivers allow for field voltage adjustment (up to 26V) to effectively compensate for potential voltage drops when longer wire leads are required between the power supply and the lighting application.
Engineered for seamless integration, this universal driver series supports a wide input range of 100-277VAC, making it suitable for both residential and commercial projects. The compact design combined with high efficiency and a high power factor ensures optimal performance while reducing total harmonic distortion (THD). Whether for dry, damp, or wet locations, the robust aluminum housing provides superior protection and durability.
Features
- Constant voltage output
- Flicker-free dimming for enhanced visual comfort
- 100 - 277VAC (Universal) input range
- Built-in Power Factor Correction (PFC) function

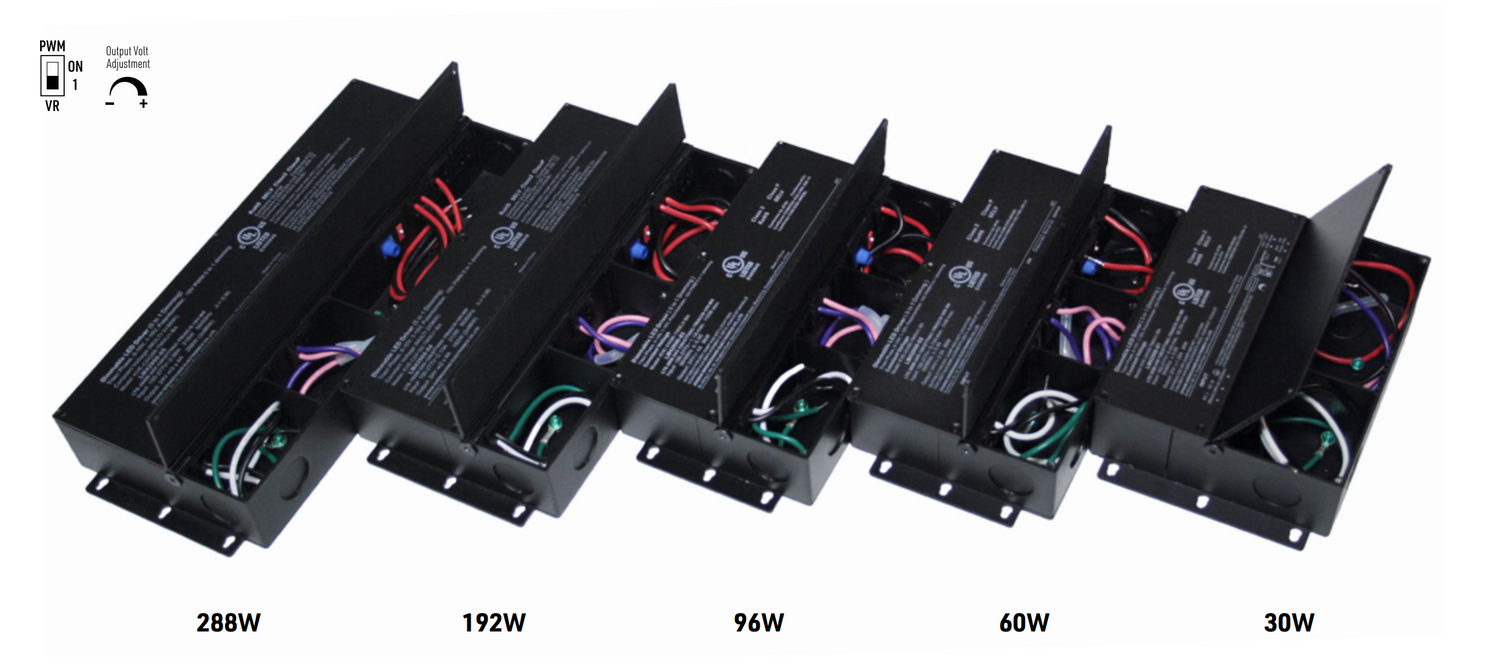

- Easy field voltage adjustment to compensate for long runs
- Efficiency up to 84%
- Comprehensive protection: Short circuit, over load, and over temperature
- Cooling by free air convection
- Full aluminum protection housing rated for dry, damp, and wet locations
- Phase dimming compatibility: Forward phase, MLV, reverse phase, ELV, and TRIAC
- 0-10V dimming: 4-in-1 functionality (0-10V / 1-10V / Potentiometer / 10V PWM)
- Dimming range 0 - 100% with a dimming depth of 0.1%
- High efficiency, compact size, and low THD
- Surface installation
- 5 years warranty
Technical Support
These drivers are designed to meet rigorous standards, ensuring safety and longevity for linear lighting systems and various LED configurations. By providing stable power and versatile dimming options, they serve as a critical component for high-quality architectural lighting.
