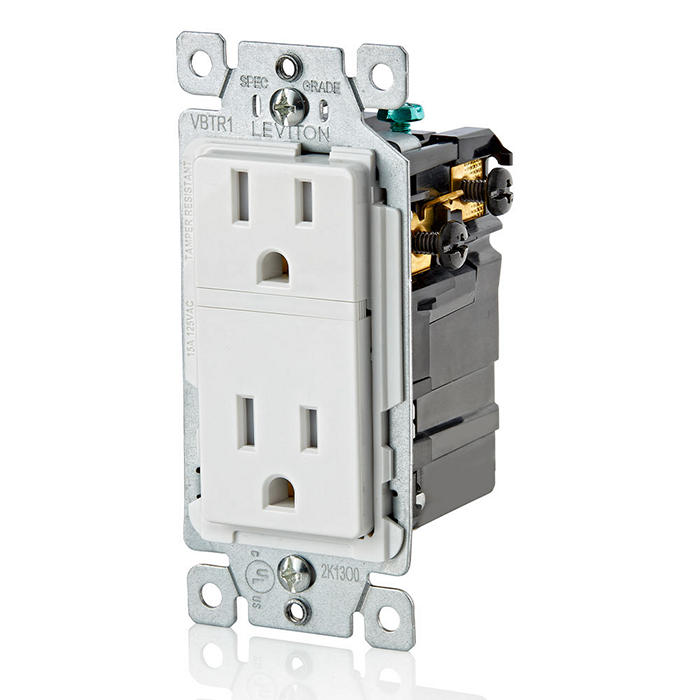

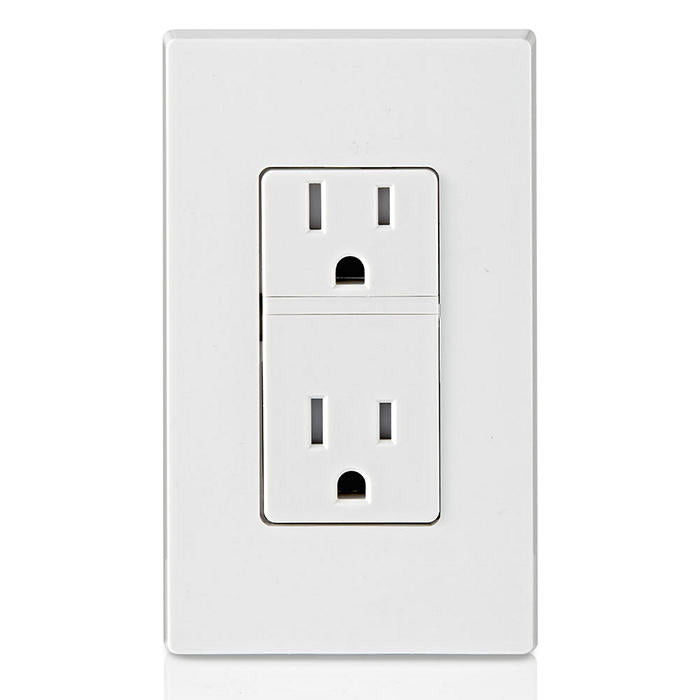

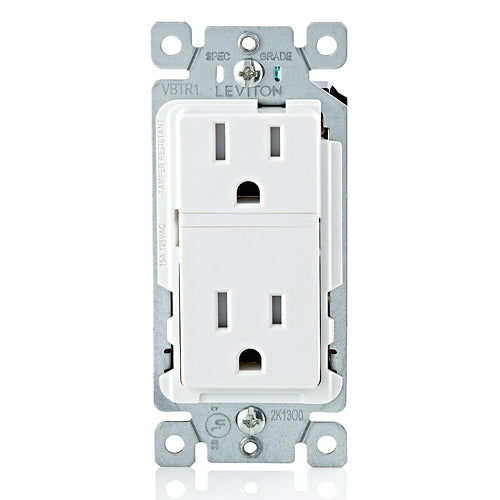

Leviton Decora Evolve Receptacle Base, Tamper-Resistant, 2 Pole 3 Wire, 15A 125V NEMA 5-15R, Residential - White
Product Details
With the Decora Evolve Receptacle Base, builders can give homeowners the power to customize power outlets using a variety of interchangeable modules. Once the base unit is installed by builders, homeowners can conveniently change modules in seconds ā without special tools or technical know-how.
- MULTI-WAY - Used as an additional way to control lights managed by more than one switch after a Decora Evolve Primary Switch Base has been installed at the location with the load.
- FAMILIAR - Install using industry-standard wiring, electrical boxes, and face plates.
- MODULAR - Removal of the bottom module allows placement of a Night Light or USB-A/USB-CĀ® Charger.
- CONSUMER-FRIENDLY- Homeowners can add and change modules themselves without having to turn off the power.
Technical Information
-
Product Features
Color : White
Device Type : Base
Feature : Modular, Tamper Resistant
Function : Outlet
Grade : Residential
-
Electrical Specifications
Amperage : 15 A
HP Rating : 1/2HP
Voltage : 125VAC
-
Material Specifications
Body Material : Thermoplastic
Contacts : Copper Alloy
Flammability Rating. : 5V
Grounding Screw : Plated Steel
Strap Material : Galvanized Steel
Terminal Screws. : Plated Steel
-
Mechanical Specifications
Product ID : Stamped on Strap
Terminal Accom : #10 - #14 AWG Side Wired Only
Terminal ID : Black - Hot, Silver - Neutral, Green - Ground
Terminaton : Side Wire Only
Torque Range. : 14 - 18 in lb
-
Standards and Certifications
NEMA : Compliant to NEMA
UL Standard : UL498
-
Warranty
Warranty : 2-Year Limited
