Leviton  |  SKU: D2GF1-KW

Leviton D2GF1-KW 15 Amp, Self Test, Tamper-Resistant Smart GFCI Outlet with LED Indicator Light

Regular price $47.20

Leviton D2GF1-KW 15 Amp, Self Test, Tamper-Resistant Smart GFCI Outlet with LED Indicator Light is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Leviton D2GF1-KW 15 Amp, Self Test, Tamper-Resistant Smart GFCI Outlet with LED Indicator Light

Product Details

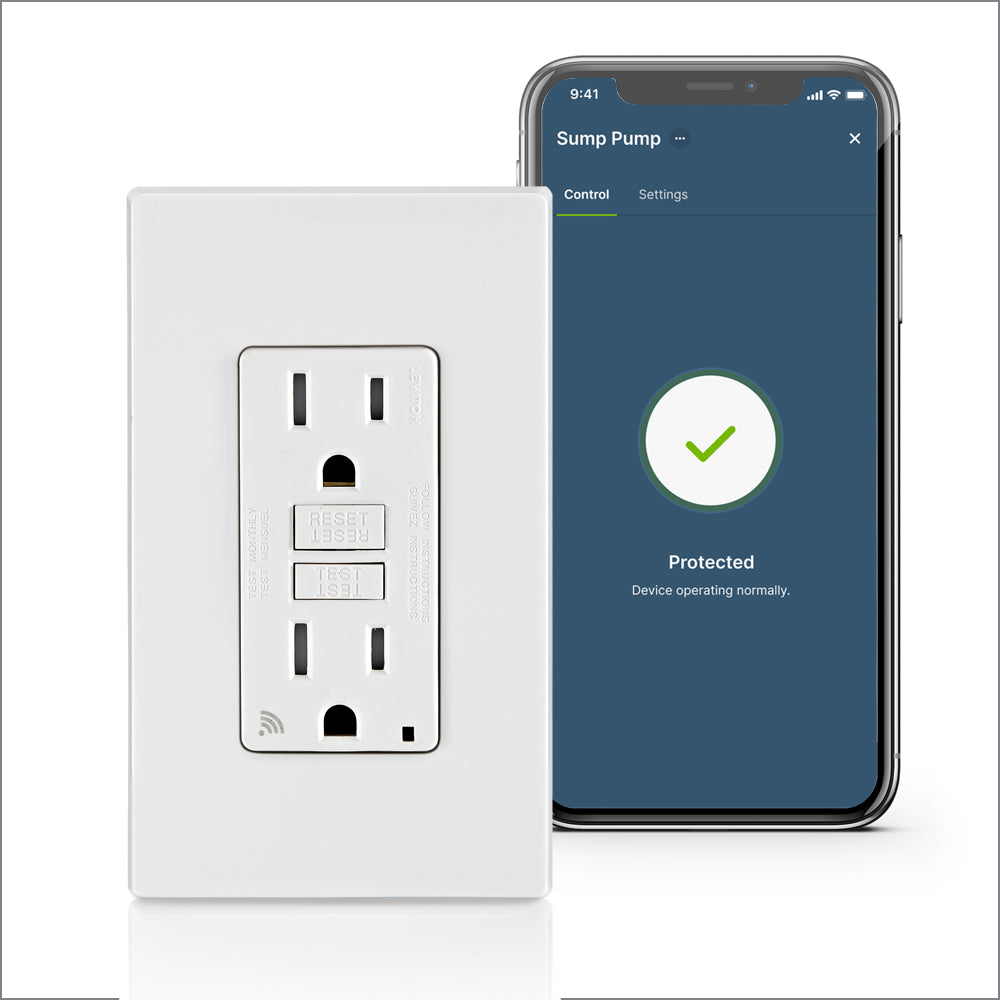

15A, 125V, 20A Feed-Through, Wi-Fi® Certified Smart GFCI Receptacle/Outlet - White Only An industry first! Our Smart GFCI Outlet provides peace of mind by sending notifications directly to your smart phone when a GFCI trips due to a ground-fault, using the My Leviton app. At a glance, the app provides details on protection status, if a ground-fault occurs, and if the GFCI is in test mode; (for safety) the app does not provide on/off control. Through the My Leviton app, users will know exactly which Smart GFCI in their home has tripped.

Features

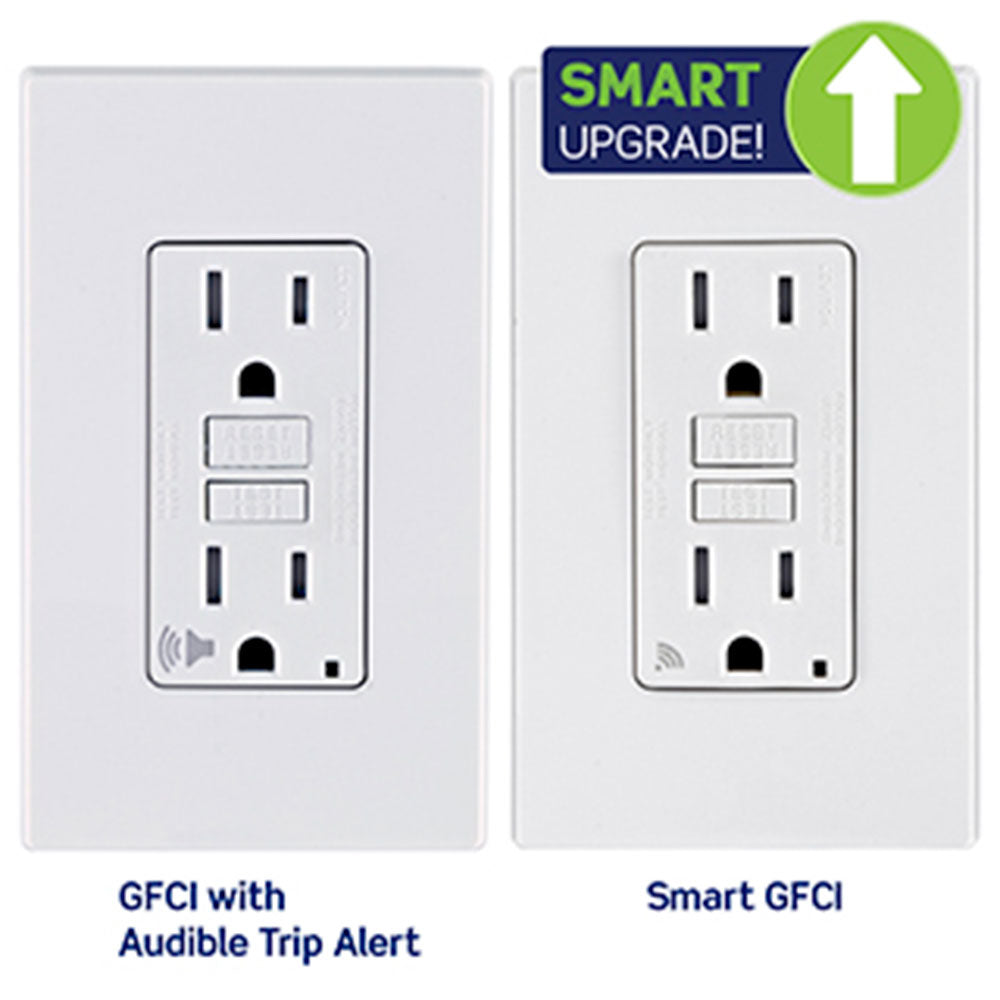

  • An upgrade to Leviton’s GFCI Outlet with Audible Trip Alert, allowing you to receive notifications and alerts wherever you are via the My Leviton app.
  • Ideal for refrigerators, sump pumps, and other appliances in out-of-the-way locations such as a garage or basement. Also great for second homes and other remote locations where daily visual checks are unlikely.
  • Includes an optional audible alarm that can be enabled or silenced. It is a perfect complement to Leviton’s Decora Smart® product line and can be combined with other My Leviton-enabled devices to build a whole home smart solution reflective of today’s connected lifestyle.
  • Provides continuous ground-fault protection and meets latest UL requirements.
  • Patented Reset Lockout feature prevents reset if the GFCI is not wired or operating correctly.
  • Available in 20 Amp

Specifications

Amperage15 A
At Rated Voltage1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA5-15R
Pole: 2
Smart: Yes
Standards and Certifications: Meets the latest UL requirements, cULus Listed , UL Standard 943 Class A (GFCI) and 498 (Receptacles), UL Listed (File #E48380), NOM Certified, Meets Federal Specification W-C-596G
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Termination: Back & Side
Trip Level: Class A, 5mA plus or minus 1mA
Type: Wi-Fi
Voltage: 125 VAC
Wallplate: Not Included
Warranty: 2-Year Limited
Wire: 3

AC Horsepower Ratings

At Rated Voltage1 HP
Dielectric Voltage: Withstands 1250VAC per UL 943
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Electrical Specifications

Dielectric Voltage: Withstands 1250VAC per UL 943
Flammability: Rated V-2 per UL 94
Operating Temperature: -35C to +66C
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental Specifications

Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: Wallplate Sold Separately
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel

Material Specifications

Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: Wallplate Sold Separately
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel

Mechanical Specifications

Amperage: 15 A
Body Material: Polycarbonate
Brand: SmartlockPro
Color: White
Face Material: Thermoplastic
Feature: Self-Test
Fed Spec WC-596Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA5-15R
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: Meets the latest UL requirements, cULus Listed, UL Standard 943 Class A (GFCI) and 498 (Receptacles), UL Listed (File #E48380) NOM Certified, Meets Federal Specification W-C-596G
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Terminal Accom.:14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range14 – 18 in.-lbs.
Trip Level: Class A, 5mA plus or minus 1mA
Type: Wi-Fi
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3

Standards and Certifications

Fed Spec WC-596: Yes
NOM Certified: Yes
UL 498: Yes
UL 943: Yes
UL Listed: File #E48380
cULus: Yes
