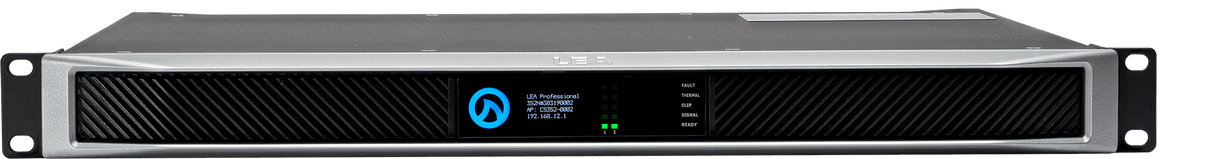

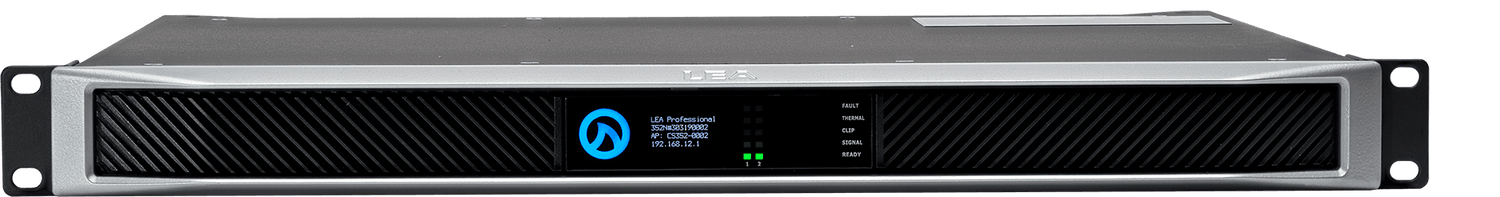

LEA CS702D-ADSP Smart AMP | 2 Channels | 700 Watts Per Channel
LEA CS702D-ADSP Smart AMP | 2 Channels | 700 Watts Per Channel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
LEA CS702D-ADSP Smart AMP | 2 Channels | 700 Watts Per Channel
Highlight title
Text to highlight a key feature of your product
Description
Description
LEA CS702D-ADSP Smart AMP | 2 Channels | 700 Watts Per Channel
Product Details
The DANTE CONNECT SERIES 702D-ADSP is a 2-channel amplifier with 700 watts per channel perfectly suited for high-performance applications. The CS702D-ADSP boasts impressive features, including 96kHz linear phase FIR crossover filters with 2048 taps per channel, providing precise audio control. Additionally, it offers 4 seconds of input delay and powers on to audio in under 10 seconds when using PoE. The FIR-based speaker tunings further enhance the audio experience, ensuring unparalleled performance and reliability.
Then there’s the Cloud…The CONNECT SERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.
The DANTE CONNECTSERIES features both analog and Dante inputs, as well as external I/O control for remote on/off and fault monitoring. It also includes compatibility with both Dante and AES67.
Specifications
|
AUDIO SPECIFICATIONS
|
|
|---|---|
|
INPUTS
|
Analog: 2 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
Dante: 8 x 8 Dante at 96kHz or 48kHz, multicast or unicast AES67: Configurable via the Dante Controller Software |
|
THD+N
|
0.1% (20Hz to 20kHz)
|
|
FREQUENCY RESPONSE
|
+/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
|
|
SIGNAL TO NOISE LEVEL
|
105dB (20Hz to 20kHz referenced to 8Ω)
|
|
CROSSTALK
|
70dB (20Hz to 20kHz)
|
|
AMPLIFIER OUTPUT CLASSIFICATION
|
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality on one channel without sacrificing an amplifier channel
|
|
DSP
|
|
|---|---|
|
DSP ARCHITECTURE
|
Analog Devices Sharc 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
|
|
INPUT MATRIX
|
Routable matrix; any input to any output with primary and secondary input priority
|
|
CROSSOVERS
|
Up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth and Bessel). FIR filters (24db/oct & 48db/oct Linkwitz Riley, Linear Phase Brickwell, and ability to load FIR Coefficients – 2048 taps per channel @96 KHZ)
|
|
PARAMETRIC EQ
|
8 Band Parametric EQ per channel
|
|
OUTPUT DELAY
|
4 seconds per channel
|
|
OUTPUT PROTECTION
|
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
|
|
USER ADJUSTABLE LIMITING
|
Peak Voltage and RMS Voltage
|
|
LOAD MONITORING
|
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
|
|
CONTROL, MONITORING, NETWORKING
|
|
|---|---|
|
USER INTERFACE
|
Web Browser User Interface, 3rd Party API control, Cloud control, or SharkWare
|
|
EXTERNAL I/O
|
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health |
|
OPERATION
|
|
|---|---|
|
AC MAINS
|
100VAC - 240VAC +/- 15% 50Hz or 60Hz
|
|
POWER SUPPLY
|
Universal Switch Mode Power Supply
|
|
PHYSICAL SPEC
|
|
|---|---|
|
DIMENSIONS (L X W X H)
|
Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U) Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
|
|
WEIGHT
|
10lbs / 3.4kg | Shipping: 17.4lbs / 7.9kg
|
|
COOLING
|
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m |
