LEA CS702-G Smart AMP| 2 Channels| 700 Watts Per Channel
Product Details

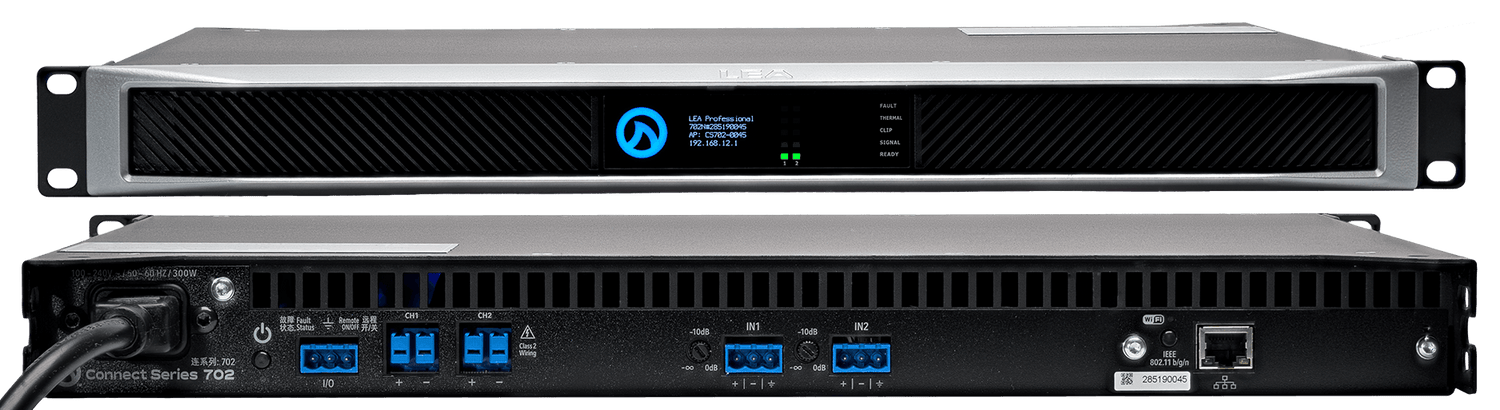

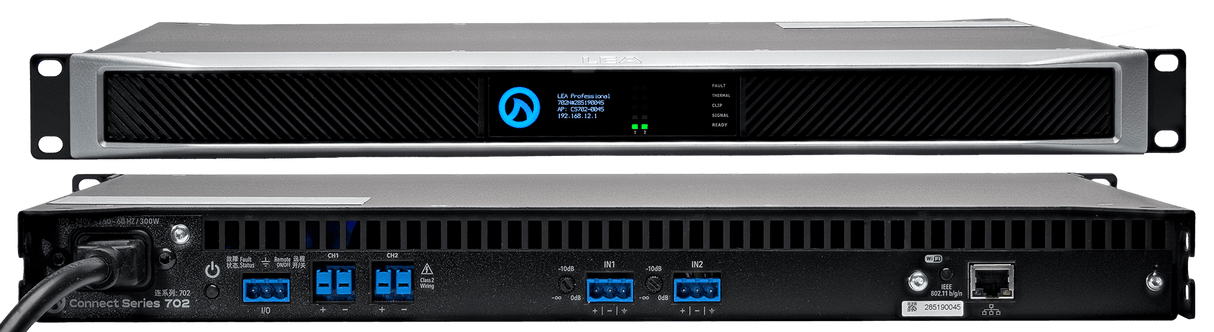

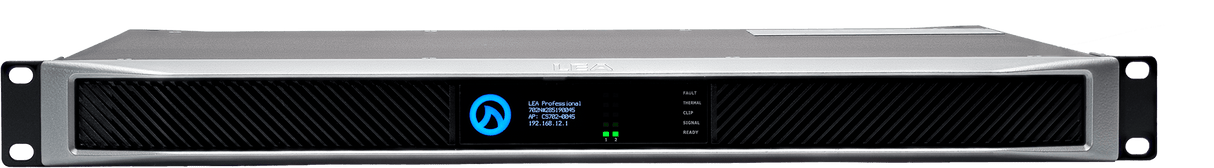

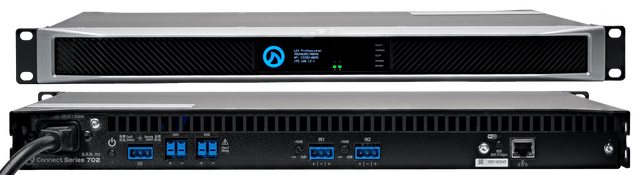

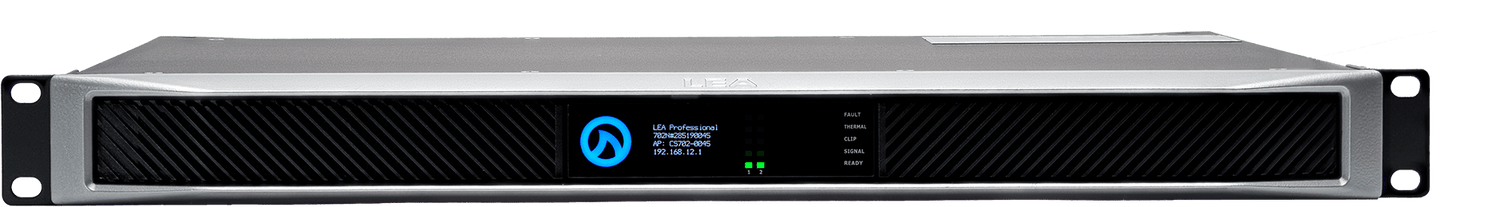

The CONNECT SERIES 702-G is a 2-channel amplifier with 700 watts per channel. As part of the CONNECT SERIES G-Model family, it is perfectly suited for small to medium-scale installations. The 702-G features direct HiZ (70V or 100V) or LoZ selectable by channel. it’s important to note that the CONNECT SERIES G-Models are designed exclusively for wired LAN connections and do not support Wi-Fi connectivity.
Then there’s the Cloud…The CONNECT SERIES G-Model is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional.cloud

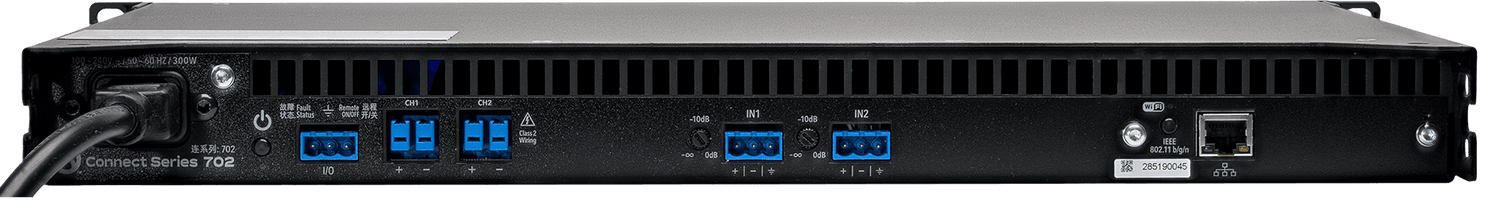

The CONNECT SERIES 702-G also features analog inputs and external I/O control for remote on/off and fault monitoring.
Specifications
|
AUDIO
|
|
|---|---|
|
INPUTS
|
Analog: 2 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
|
|
THD+N
|
0.1% (20Hz to 20kHz)
|
|
FREQUENCY RESPONSE
|
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
|
|
SIGNAL TO NOISE LEVEL
|
105dB (20Hz to 20kHz referenced to 8Ω)
|
|
CROSSTALK
|
70dB (20Hz to 20kHz)
|
|
AMPLIFIER OUTPUT CLASSIFICATION
|
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
|
|
DSP
|
|
|---|---|
|
DSP ARCHITECTURE
|
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
|
|
INPUT MATRIX
|
Routable matrix; any input to any output with primary and secondary input priority
|
|
CROSSOVERS
|
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
|
|
PARAMETRIC EQ
|
8 Band Parametric EQ per channel
|
|
OUTPUT DELAY
|
100ms per channel
|
|
OUTPUT PROTECTION
|
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
|
|
USER ADJUSTABLE LIMITING
|
Peak Voltage and RMS Voltage
|
|
LOAD MONITORING
|
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
|
|
CONTROL, MONITORING, NETWORKING
|
|
|---|---|
|
USER INTERFACE
|
Web Browser User Interface, 3rd Party API control, or CLOUD control
|
|
EXTERNAL I/O
|
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health |
|
OPERATION
|
|
|---|---|
|
AC MAINS
|
100VAC - 240VAC +/- 15% 50Hz or 60Hz
|
|
POWER SUPPLY
|
Universal Switch Mode Power Supply with Power Factor Correction
|
|
PHYSICAL SPEC
|
|
|---|---|
|
DIMENSIONS (L X W X H)
|
Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm) |
|
WEIGHT
|
10lbs / 3.4kg | Shipping: 17.4lbs / 7.9kg
|
|
COOLING
|
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m |
