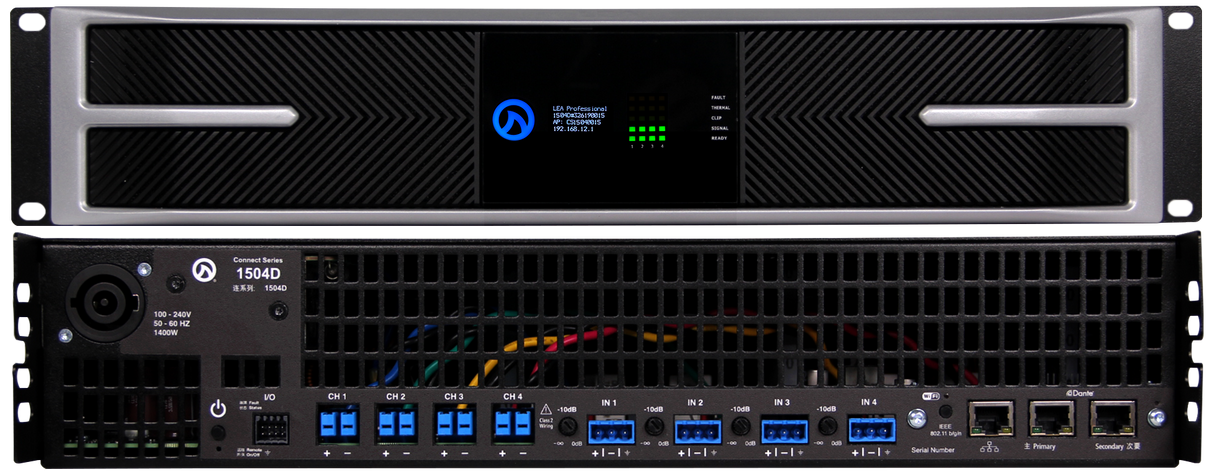

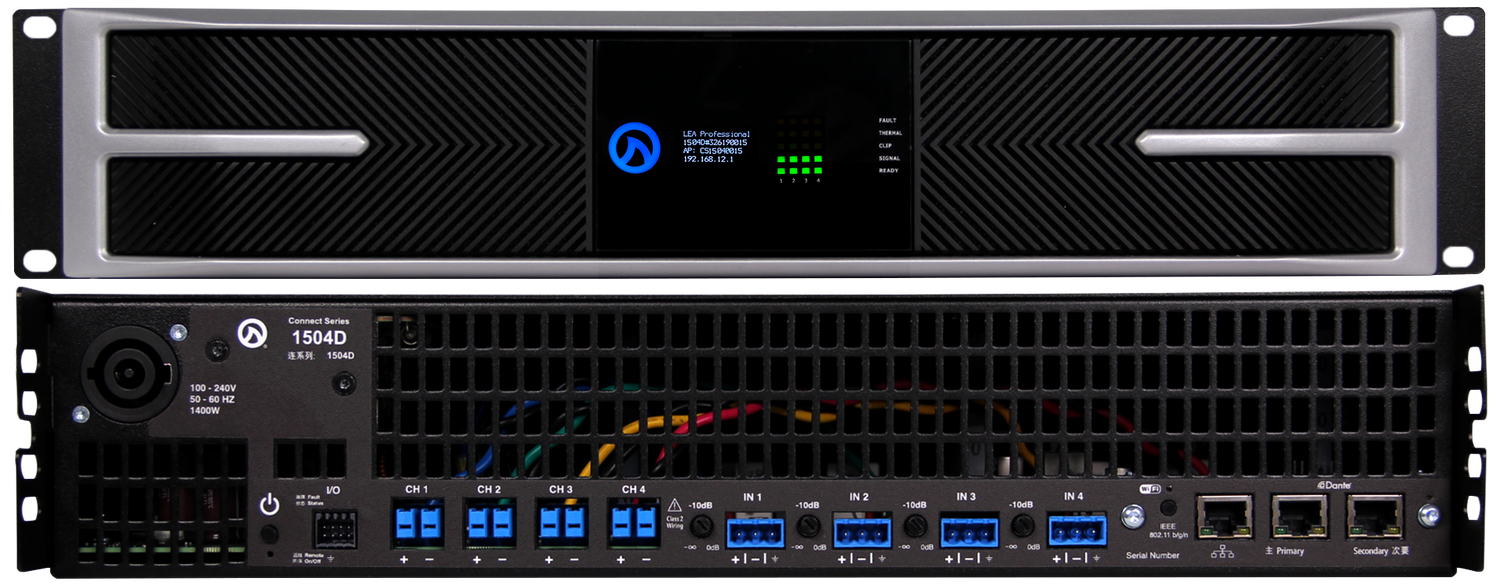

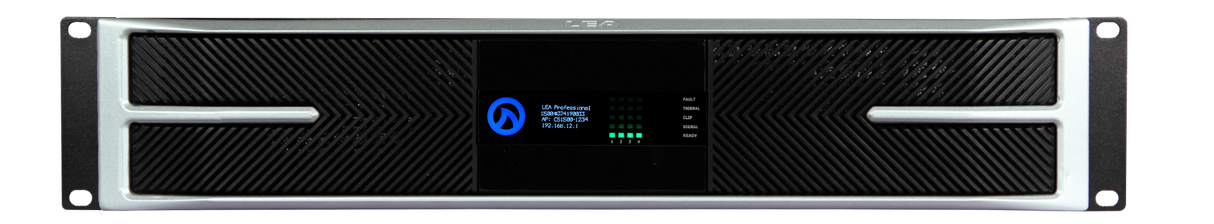

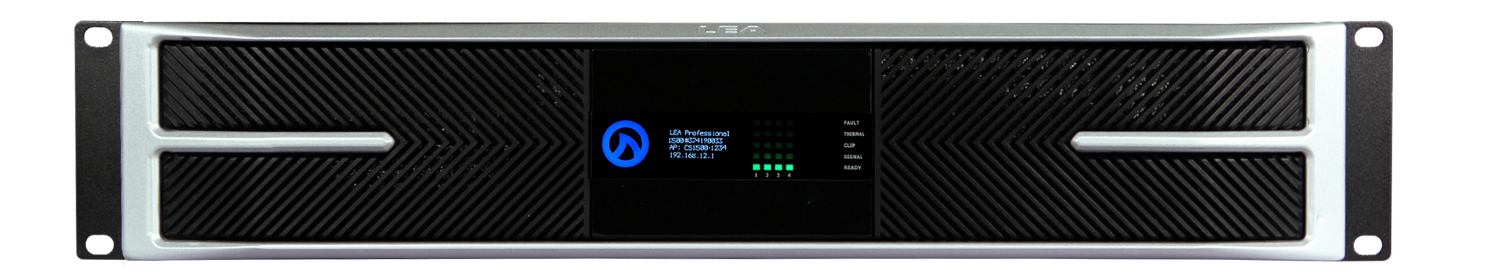

LEA CS1504-G High Power Smart AMP | 4 Channels | 1500 Watts Per Channel
Product Details
Introducing the CONNECTSERIES 1504-G high-power IoT-enabled smart amp. This four-channel model drives 1,500 watts per channel (into 2, 4, and 8 ohms as well as 70Vrms and 100Vrms). Available in Network and Dante, it’s important to note that the CONNECTSERIES 1504-G is designed exclusively for wired LAN connections and do not support Wi-Fi connectivity.
Then there’s the Cloud…The CONNECTSERIES G-Model is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.
Specifications
|
AUDIO SPECIFICATIONS
|
|
|---|---|
|
INPUTS
|
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
|
|
THD+N
|
0.1% (20Hz to 20kHz)
|
|
FREQUENCY RESPONSE
|
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
|
|
SIGNAL TO NOISE LEVEL
|
105dB (20Hz to 20kHz referenced to 8Ω)
|
|
CROSSTALK
|
70dB (20Hz to 20kHz)
|
|
AMPLIFIER OUTPUT CLASSIFICATION
|
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
|
|
DSP
|
|
|---|---|
|
DSP ARCHITECTURE
|
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
|
|
INPUT MATRIX
|
Routable matrix; any input to any output with primary and secondary input priority
|
|
CROSSOVERS
|
Advanced DSP with Linear Phase Brickwall FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
|
|
PARAMETRIC EQ
|
8 Band Parametric EQ per channel
|
|
OUTPUT DELAY
|
4 seconds per channel
|
|
OUTPUT PROTECTION
|
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
|
|
USER ADJUSTABLE LIMITING
|
Peak Voltage and RMS Voltage
|
|
LOAD MONITORING
|
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
|
|
CONTROL, MONITORING, NETWORKING
|
|
|---|---|
|
USER INTERFACE
|
Web Browser User Interface, 3rd Party API control, or CLOUD control
|
|
EXTERNAL I/O
|
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health |
|
OPERATION
|
|
|---|---|
|
AC MAINS
|
100VAC - 240VAC +/- 15% 50Hz or 60Hz
|
|
POWER SUPPLY
|
Universal Switch Mode Power Supply with Power Factor Correction
|
|
PHYSICAL SPEC
|
|
|---|---|
|
DIMENSIONS (L X W X H)
|
Product: 17.88” x 19” x 2U (362mm x 482mm x 2U) (362mm x 482mm x 2U)
Shipping: TBD |
|
WEIGHT
|
26lbs / 11.8kg | Shipping: 30 lbs / 13.6 kg
|
|
COOLING
|
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m |
