Kanto CM600B4B Back-to-Back Quad Screen TV Ceiling Mount for Four 40” to 45” TVs

Kanto CM600B4B Back-to-Back Quad Screen TV Ceiling Mount for Four 40” to 45” TVs

Product Details

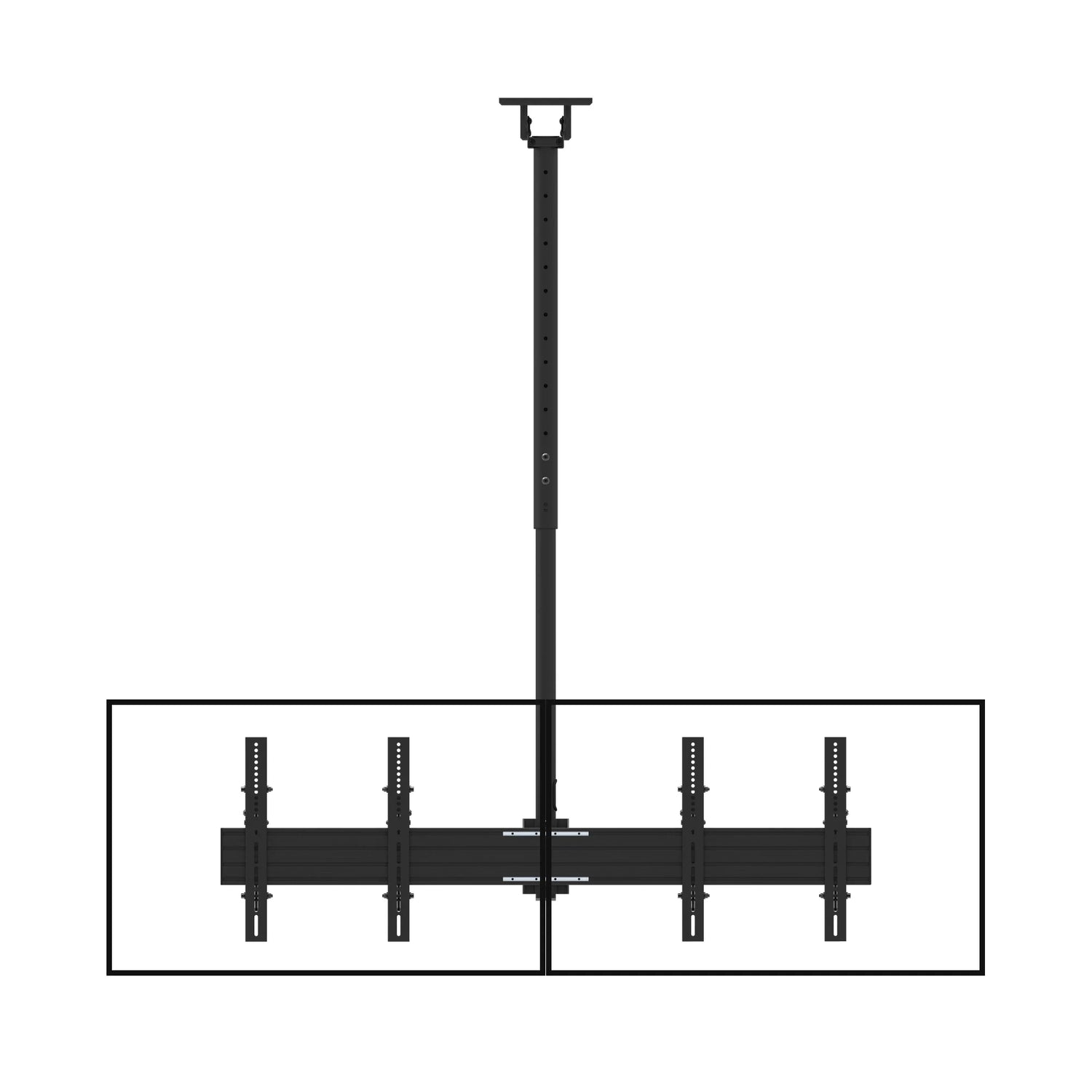

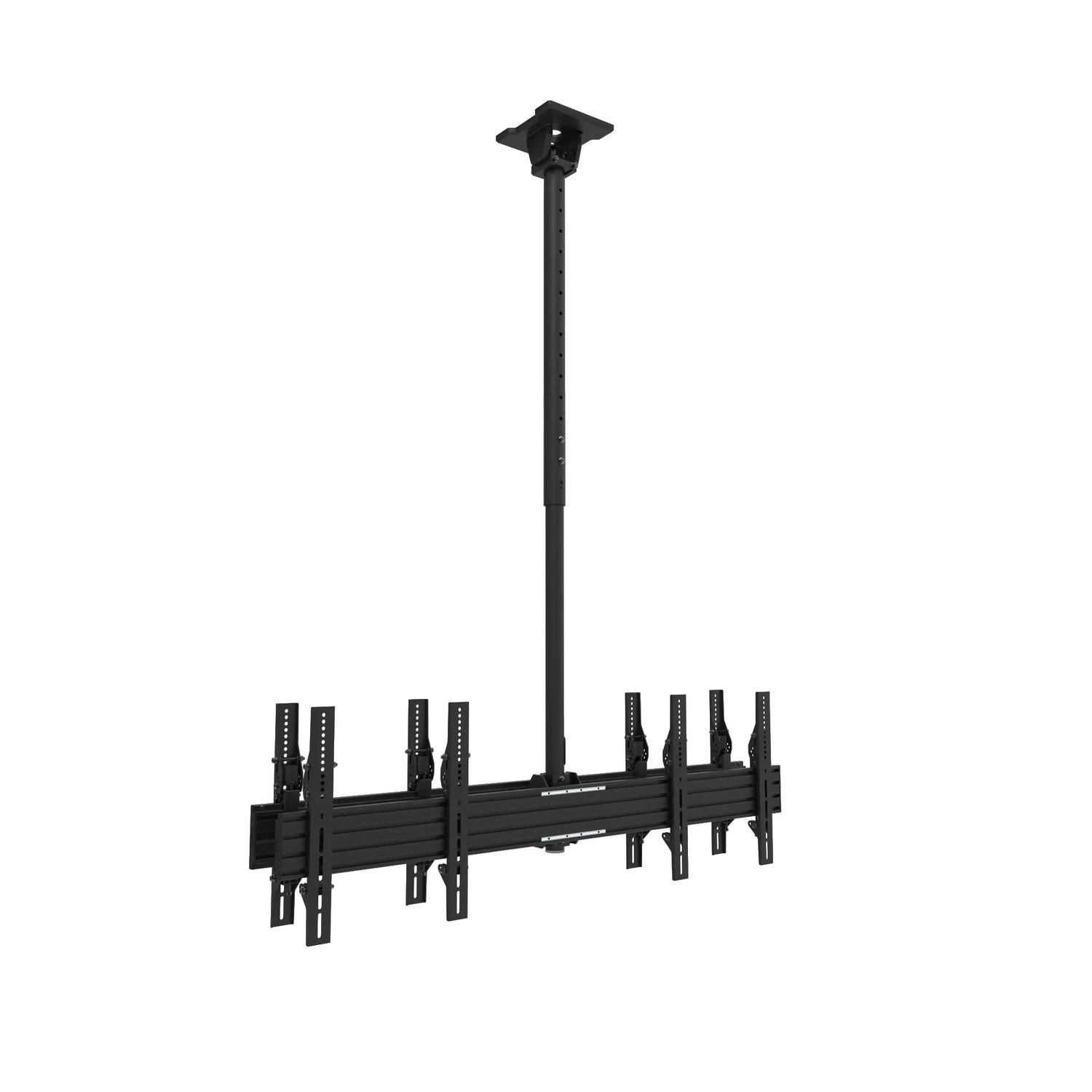

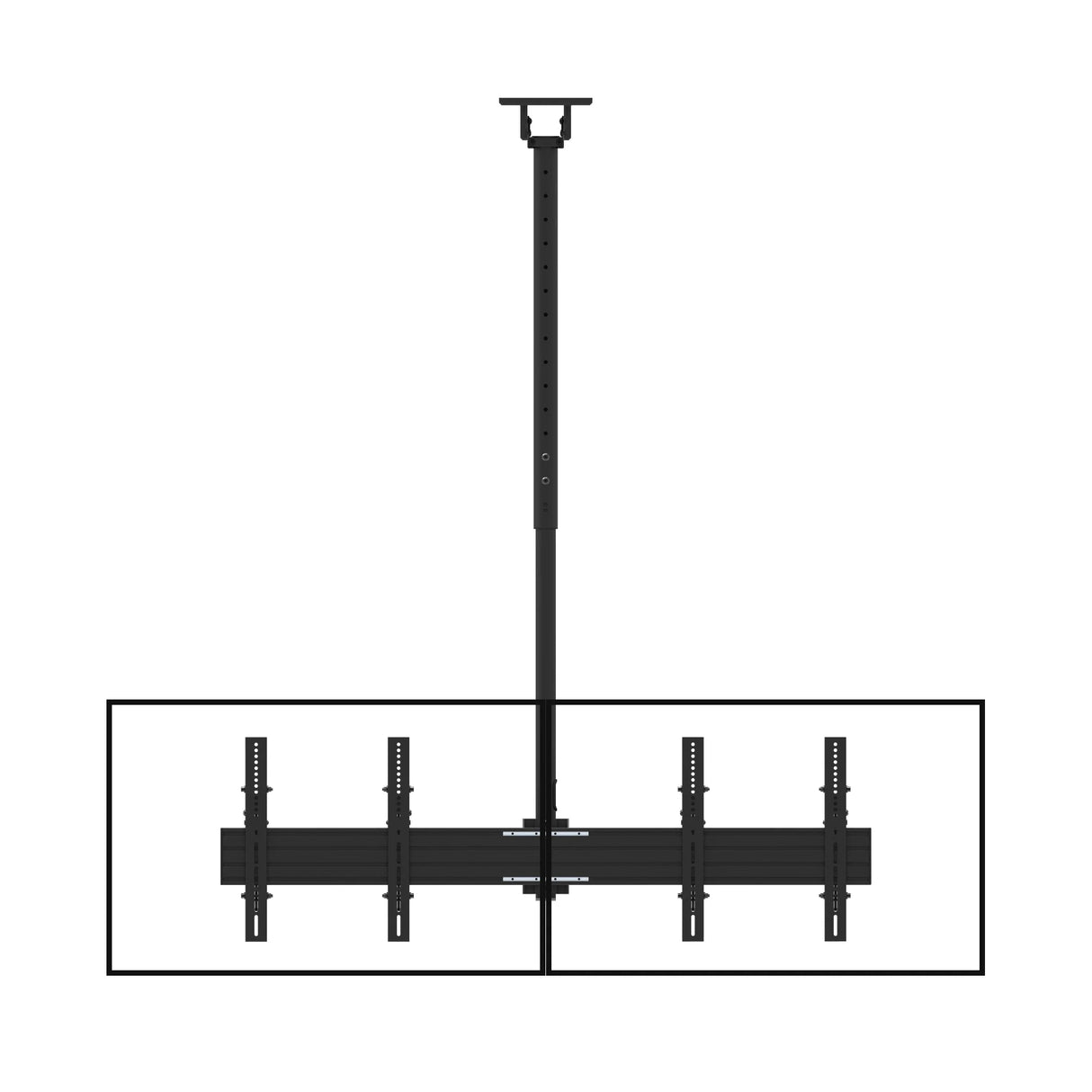

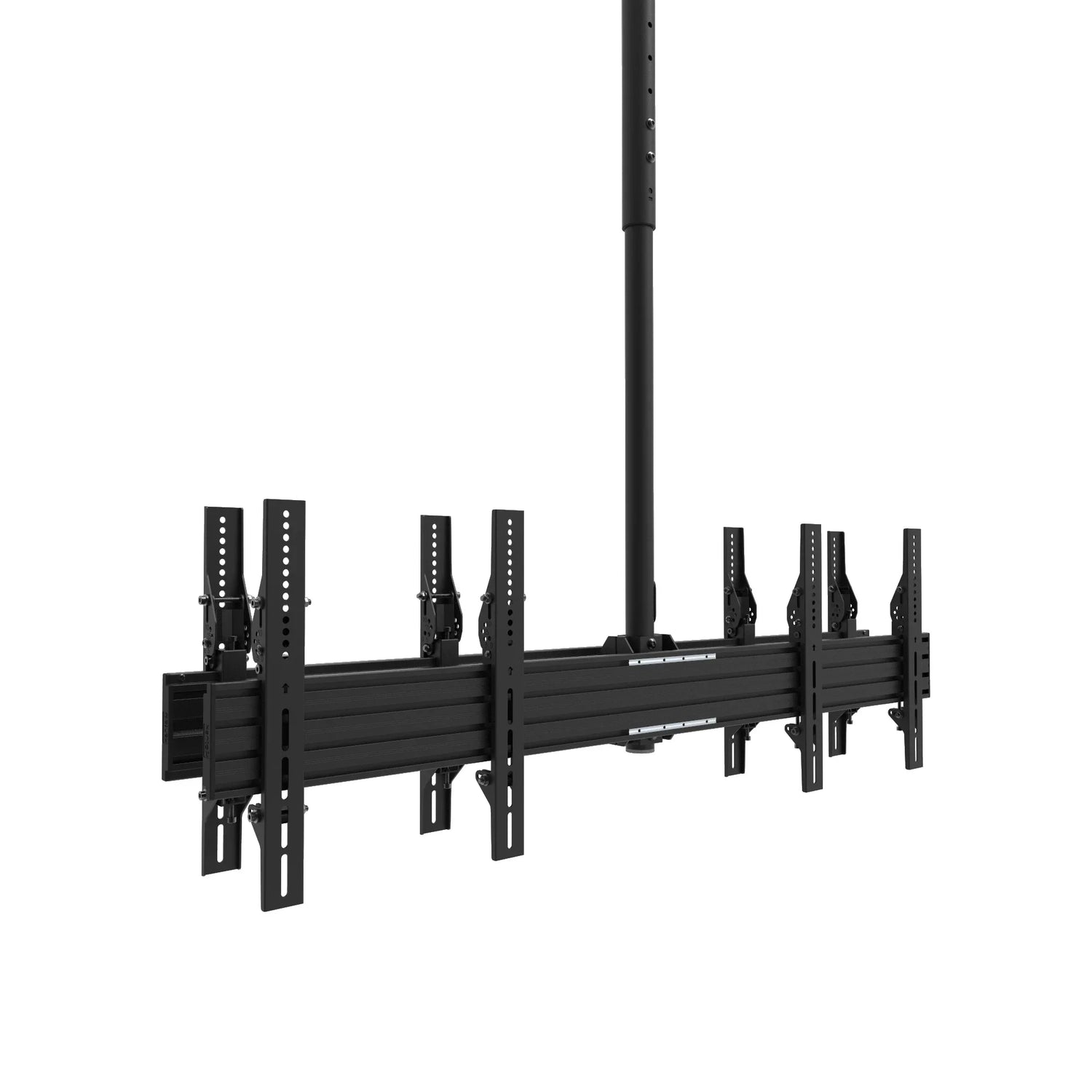

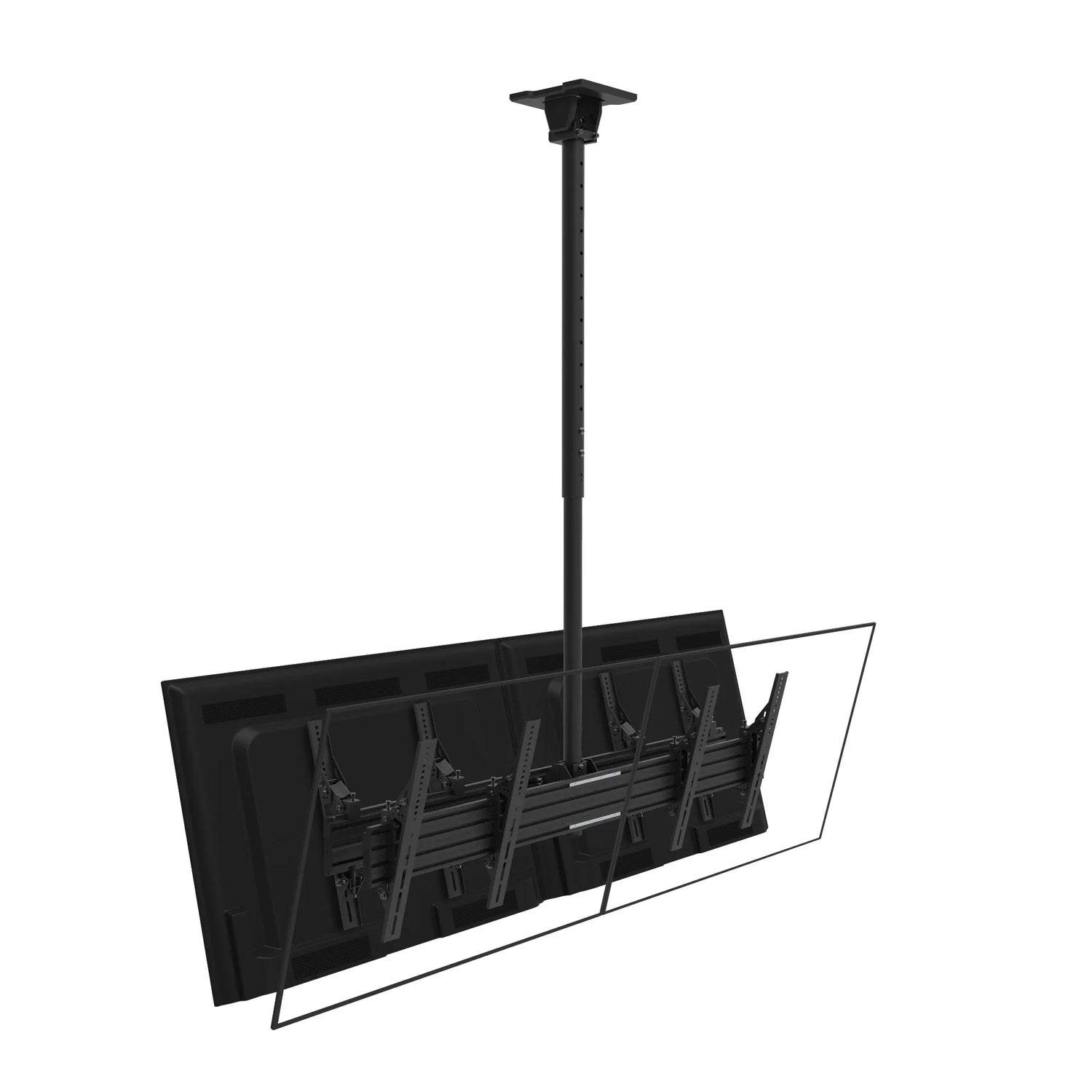

The CM600B4B Quad TV Ceiling Mount is the perfect solution for AV installations requiring multiple screens. Supporting panels up to 45”, CM600B4B allows you to mount four displays in a back-to-back configuration with two facing each direction. The pivoting ceiling plate offers flexibility to attach to flat, angled, or vertical surfaces. With a telescoping extension pole providing 23.6” of height adjustment and 360° rotation, you can position your screens exactly where you need them. The adjustable leveling screws and four discrete tilt options, with up to 15° forward or 6° backward tilt, ensure perfect screen alignment. Additionally, the mount includes unobstructed cable management along the entire length of the pole, keeping your installation clean and organized.

Features

• Back-to-Back Quad Mounting: Secure four panels in opposite directions to increase visibility and ensure content reaches a wider audience.

• Flexible Mounting Options: A pivoting mounting plate allows for installation on flat ceilings, angled ceilings, beams, or even vertical walls.

• Height Adjustable: The telescoping extension pole provides height adjustment between 42.7” and 61.5” from the ceiling to the center of the TV.

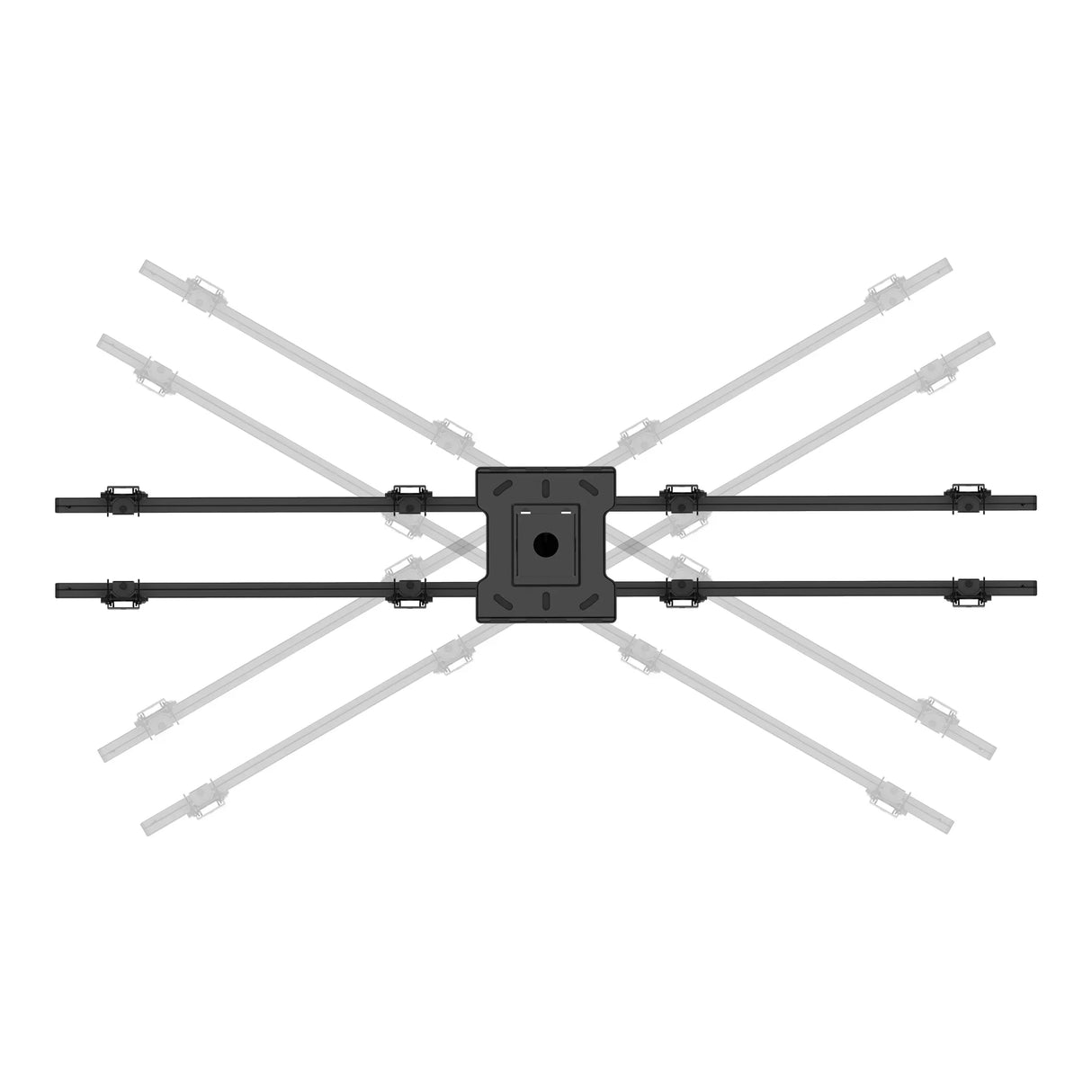

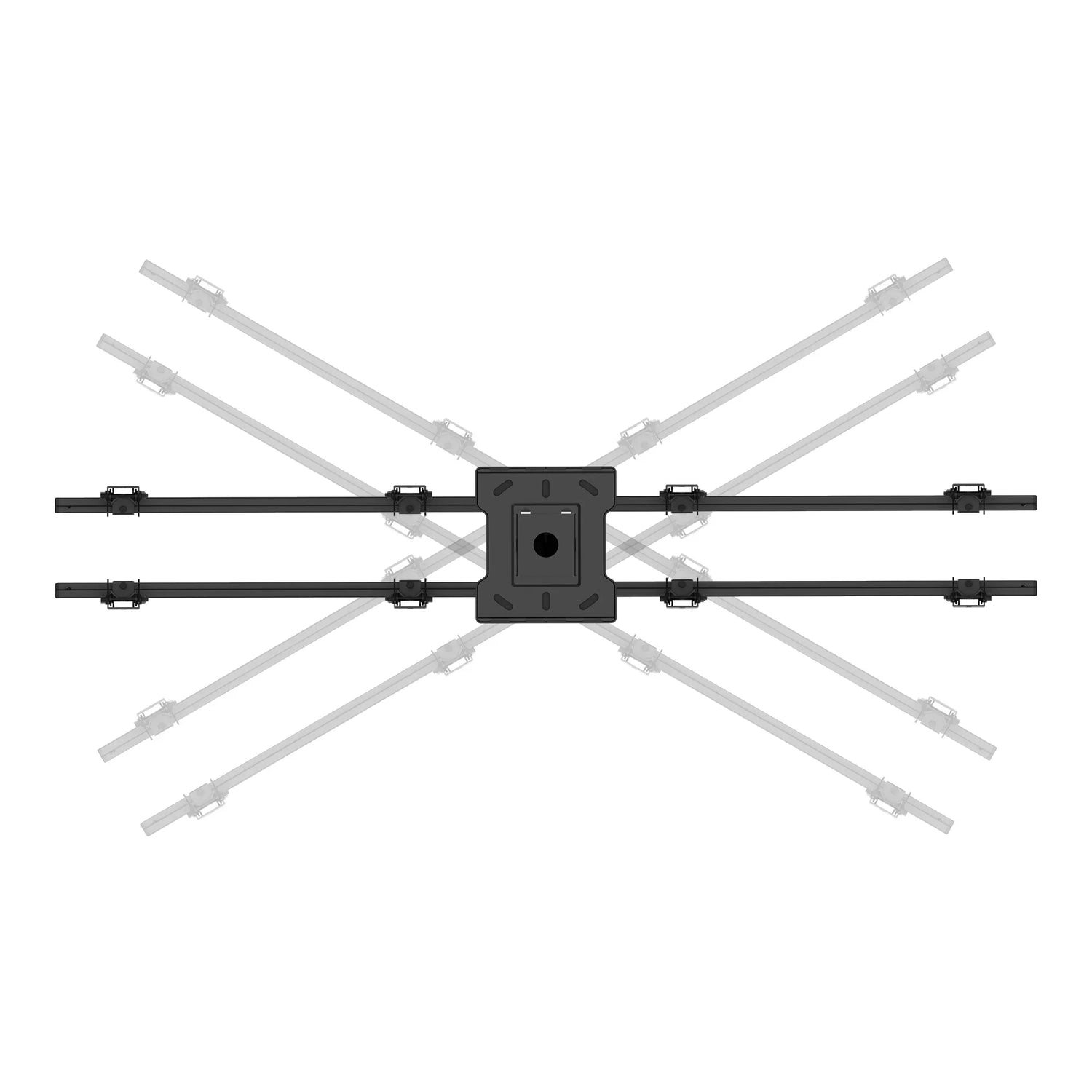

• Swivel & Tilt: Offers 360° of rotation and four discrete tilt options (up to 15° forward or 6° backward) to improve line-of-sight or compensate for lean.

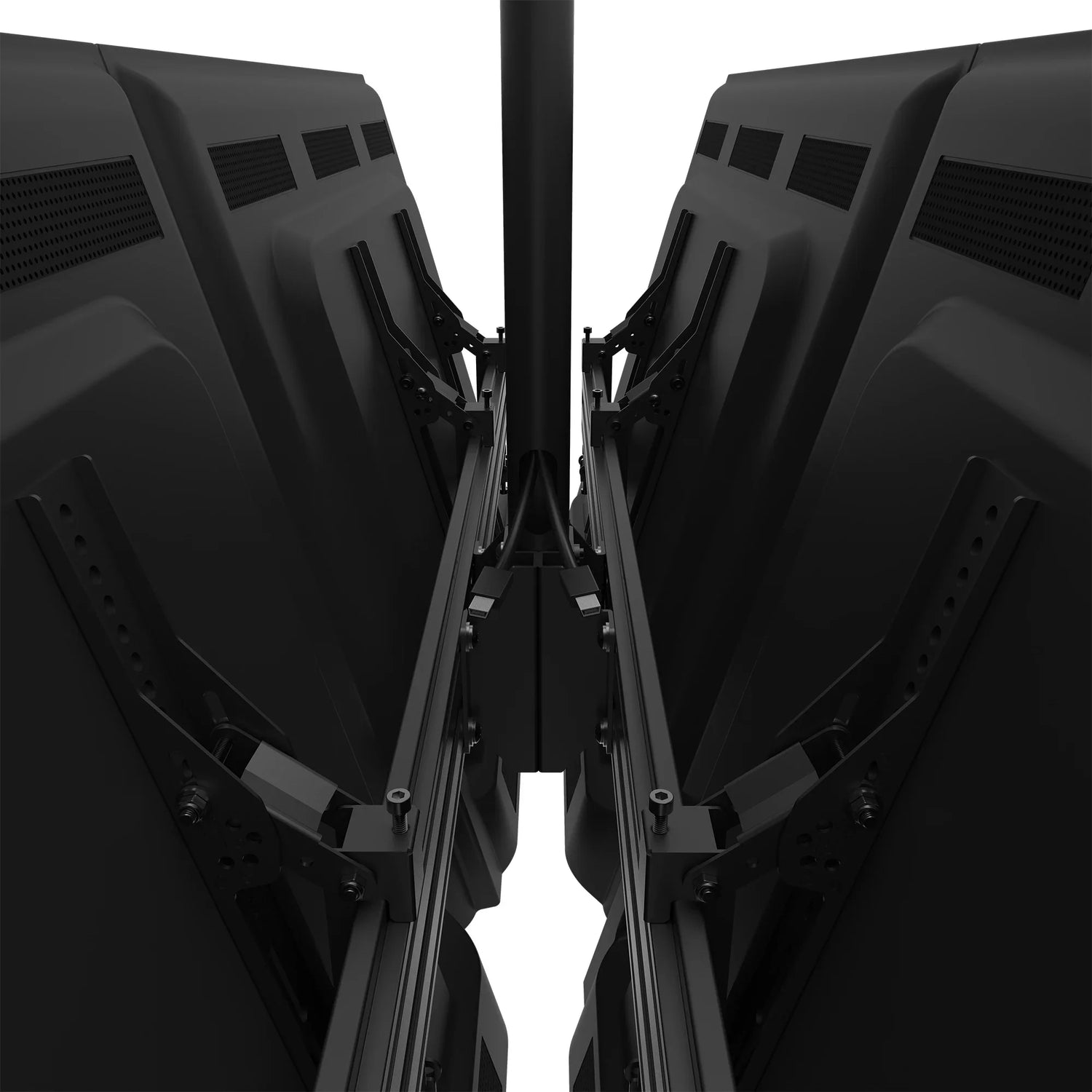

• Integrated Cable Management: The hollow core of the extension pole and an opening in the mounting plate provide an unobstructed path for hidden, organized cable routing.

• Adjustable Leveling: Includes leveling screws to ensure screens are perfectly aligned after installation.

Specifications

• TV Sizes Supported: 40” to 45”

• Weight Allowance: 50 lb (22.7 kg) per screen

• VESA Sizes: 75x75 to 600x400

• Tilt Range: +15° to -6°

• Swivel/Rotation: 360°

• Ceiling Plate Swing: 90° (for sloped ceilings or wall mounting)

• Extension Range: 42.7” to 61.5” (108.5 to 156.1 cm) from ceiling to center of TV

• Material: Solid aluminum and steel construction with a durable powder-coated finish

• Warranty: 5-year manufacturer's warranty

Shipping & Dimensions

• Product Weight: 37.3 lb (16.9 kg)

• Shipping Box Weight: 41.5 lb (18.8 kg)

• Shipping Box Dimensions: 34.3″ x 9.2″ x 8.7″ (87.2 x 23.3 x 22 cm)

• UPC: 800152722641

What’s Included

• CM600B4B Back-to-Back Quad TV Ceiling Mount

• Installation Manual

• All mounting hardware for wood stud and concrete installation
