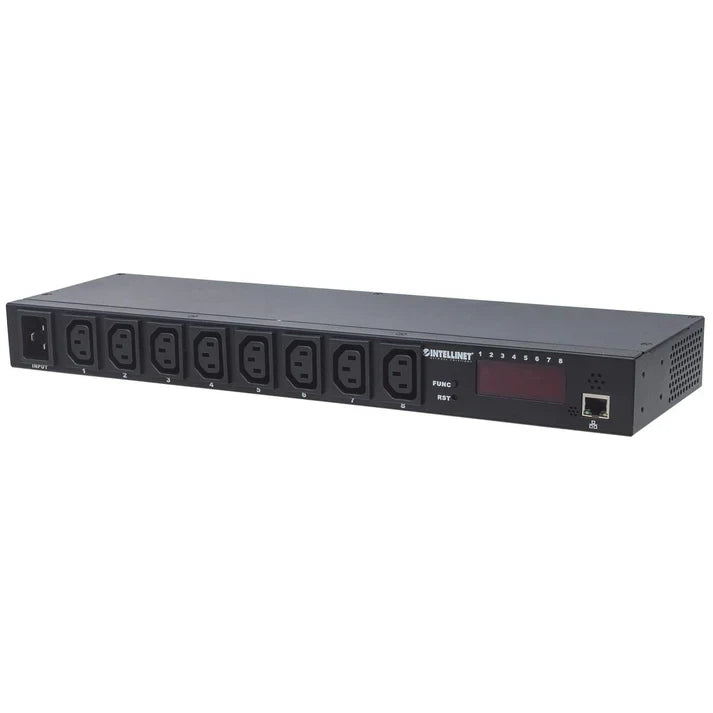

Intellinet 163682 19" Rackmount Smart Switched Metered 8-Outlet PDU

Intellinet 163682 19" Rackmount Smart Switched Metered 8-Outlet PDU

Product Details

Smart PDU for your network

The Intellinet Network Solutions 19" Intelligent 8 Port PDU provides your system-critical devices with steady power, monitors current-voltage levels and keeps track of environmental temperature and humidity levels. A simple web interface enables the systems administrator to set thresholds for the safety of your valuable I.T. equipment.

Features

• Eight-port, IEC320 C13 power output with total current of 16 A
• Displays total delivered power in voltage and watts
• Built-in temperature and humidity sensor monitors the operating environment
• Embedded technology, supports Java and web browsing
• Customizable Warning and Overload alarms
• Power-outlet delay-time configurable to prevent the possibility of a power surge to the integral power supply
• Power cycle of each port via web interface
• LED indicates power-supply condition of each power outlet
• Digital display shows real-time value of voltage and current, IP address, or temperature and humidity
• Built-in lightning-protection circuit and voltage-surge circuit
• Fanless design for silent operation
• Three-Year Warranty


Specifications

• Certifications
• FCC

• CE

  General

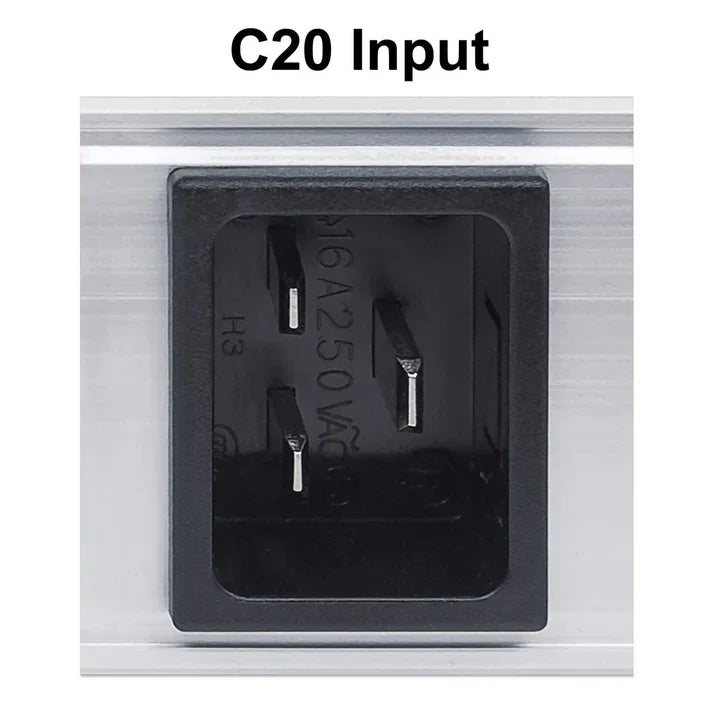

• Power input: one IEC320 C20

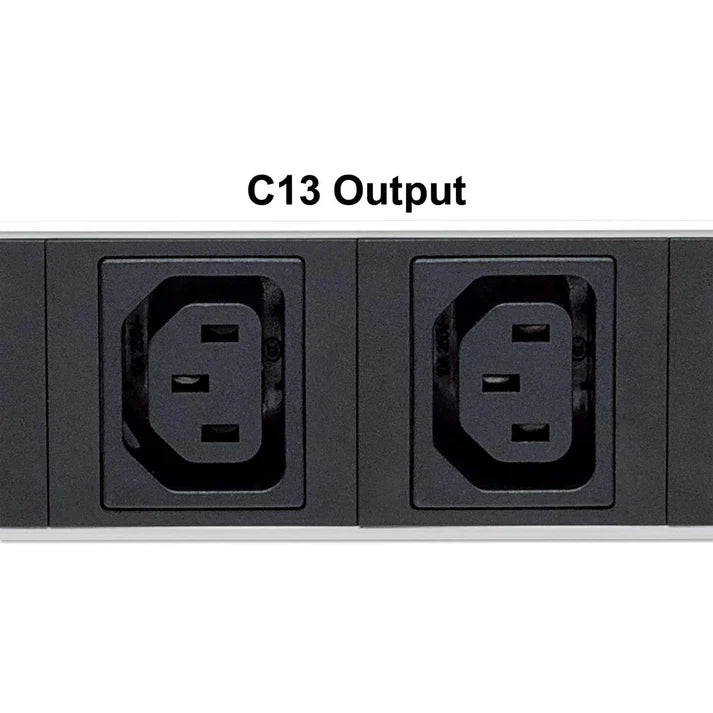

• Power outputs: eight IEC320 C13

• LAN connection: one RJ45 port

  Technical

• Voltage input: 90-240 V 50/60 Hz

• Voltage output: 90-240 V 50/60 Hz

• Voltage measurement range: 90-264 VAC increment of 1 V

• Current measurement range: 0-20 A increment of 0.1 A

• No-load power consumption: 5.0 W

• Temperature measurement range: 0° – 50°C (32° – 122°F) increment of 1°C (1°F)

• Humidity measurement range: 20% – 90% increment of 1%

  Physical

• Dimensions (D x W x H): 119.5 x 442 x 44.5 mm (4.69 x 17.4 x 1.75 in.)

• Net weight: 1.6 kg (4.54 lbs.)

• Gross weight: 2.38 kg (5.25 lbs.)

• Metal housing

• Flammability: Tested and rated in accordance with UL 94 V-0

  Package Contents

• Intelligent 8-Port PDU

• 19" rackmount brackets

• Power cable C19 to C20, 2 m (7 ft.)
