Evolution HDBaseT Slim Extender 4K/60Hz 130ft/40m, 1080p 230ft/70m HDCP 2.2 Bi-directional IR PoC

Product Details

• Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of standard HDMI cables without degradation
• HDBaseT Extender can connect uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
• Features Power over Cable (PoC) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
• Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m)
• Bi-directional IR control
• High Bandwidth: 10.2Gp
• HDCP 2.2 compliant
• CEC Support
• Slim and compact design
• Power Supply: DC 12V
• Dimensions: 2.9” W x .7” H x 4.7” D

Tech Support Tips:

• • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
  • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues

Package Contents:

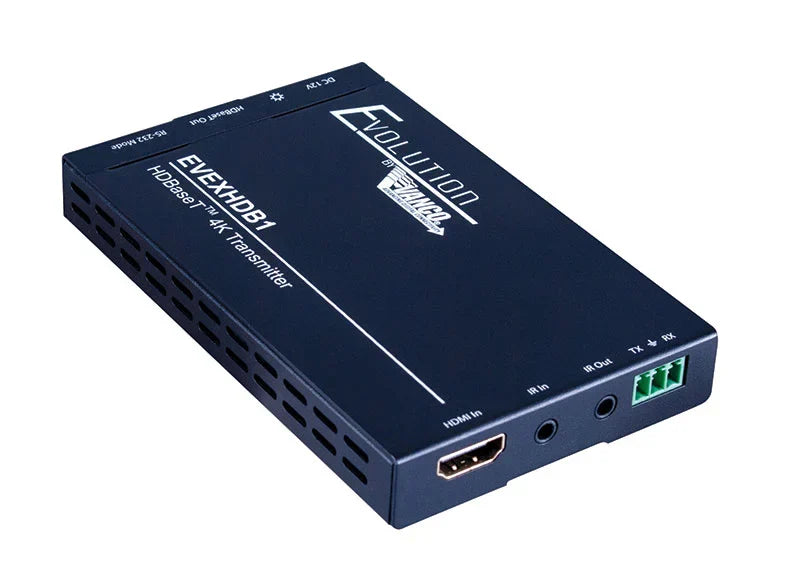

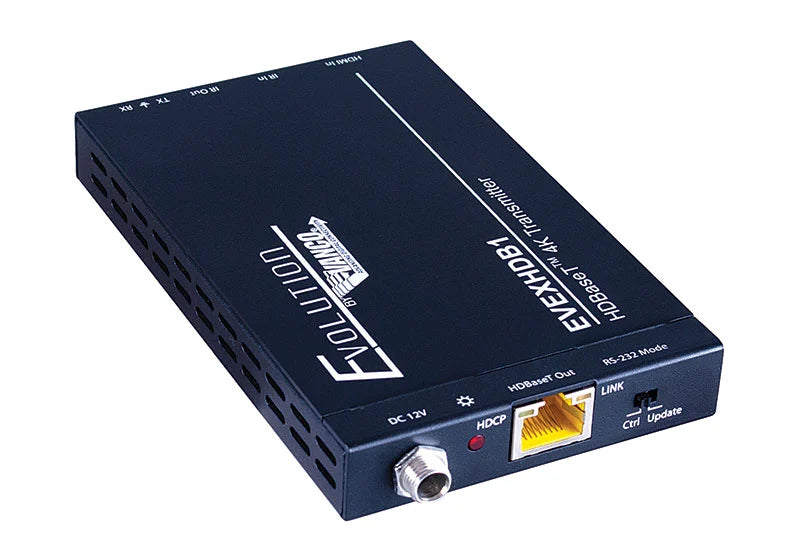

EVEXHDB1 (TX & RX)
(1) IR Blaster (TX)

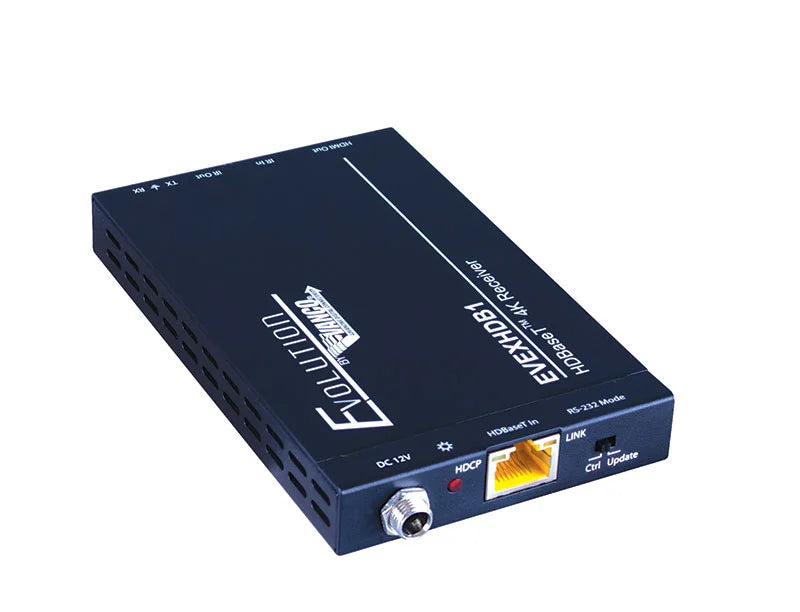

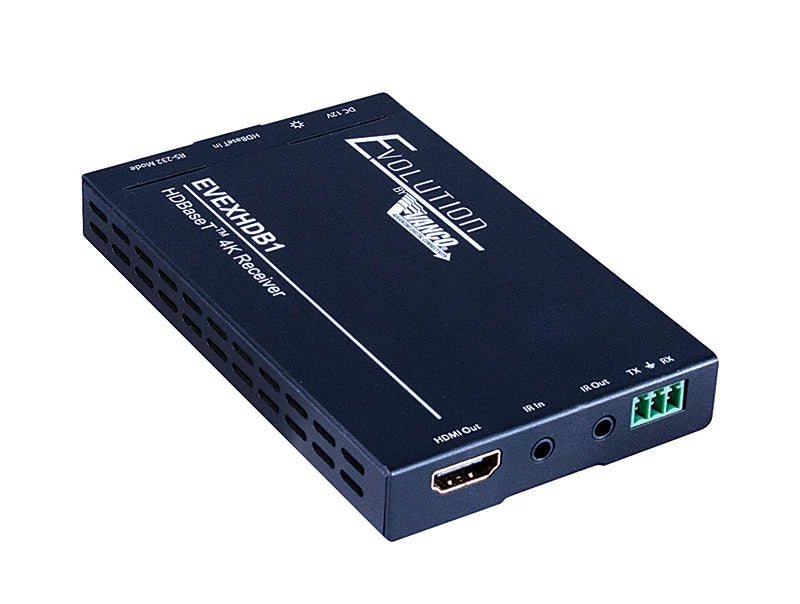

(1) IR Receiver (RX)
(1) DC 12V in line power supply
Mounting Hardware
Product Manual
