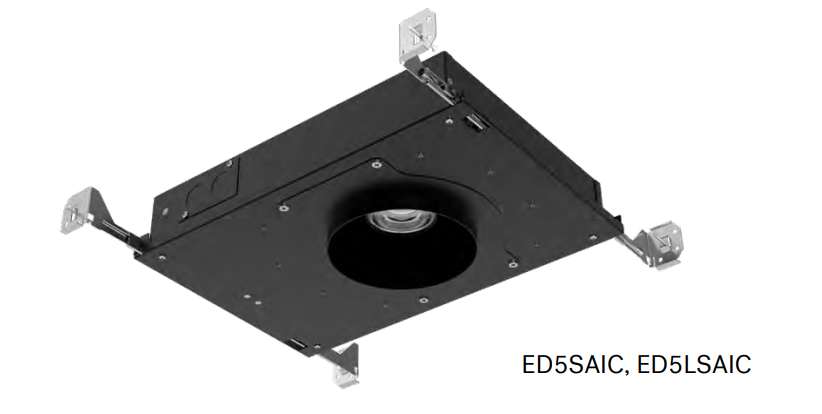

CSL ECO 5" Shallow Plenum Housing

CSL 5" Shallow Plenum Housing

Features

• Shallow plenum design
• IC Airtight rated
• CCEA compliant
• Steel junction box with up to (4) ½" knockouts
• ASTM E283 Certified Airtight
• CA Title 24 JA-8 Compliant

Specifications

• Aperture: 5"
• Installation Type: Shallow Plenum New Construction, IC Rated, CCEA Compliant
• Wattage: 24W
• Color Temperature: 2700K, 3000K
• CRI: 90+, 2-Step SDCM
• Optic: 50° Flood (installed); 10°, 30°, 80° available separately
• Delivered Lumens @ 2700K/50° optic: 1,836 lm (ED5S), up to 2,657 lm max across the family
• Efficacy: Up to 104 LPW
• LED Lifetime: 55,000 hours @ L90
• Voltage: 120/277V, 50/60Hz
• Dimming: Universal — 0-10V, TRIAC, ELV; dims to 1%
• Driver Access: Below ceiling (serviceable without attic access)
• Min Plenum Height: 2½" (Shallow)
• Ceiling Thickness: 5/8" – 2"
• Ceiling Material: Drywall or T-bar grid

Certifications / Listing

• cULus Listed
• UL Listed for Damp Location
• UL Listed for Wet Location (with wet location trim)
• CCEA Approved
• CA Title 24 JA-8 Compliant
• ASTM E283 Certified Airtight

Warranty

• 5 years limited

Trim (Sold Separately — Housing Only)

Compatible with round or square, fixed, standard or trimless, wet location, and wall wash trims in White, Black, Champagne, Silver w/White Flange, Black w/White Flange, Champagne w/White Flange.

Compatible Dimmers (Driver S — Universal)

• Lutron: LGCL-153PL, DVRP-253P, RRD-6CL, NTELV-600P, DVELV-303P, MAELV-600, PD-6WCL, SELV-300P, DVCL-153-P
• Leviton: VPE06, DW1KD-1BZ, IPE04, IPL06
• Cooper: SAL06P
• 0-10V Dimmers: Lutron NFTV/DVTV/DVSTV, Leviton IP710-LFZ, Lightolier SR1200ZTUNV, Cooper SF10P-W
