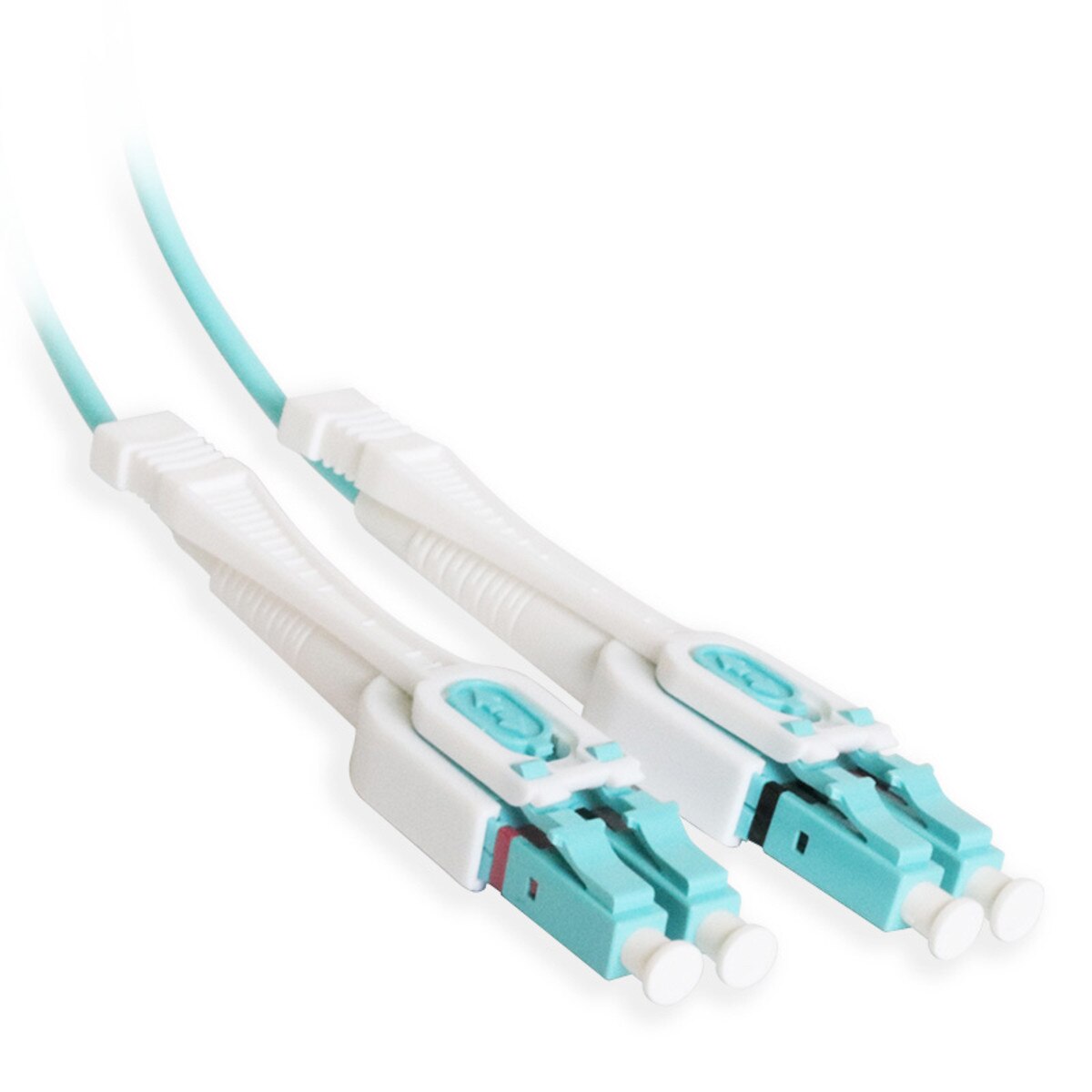

Cleerline UOM3LCLC05m-UPC SSF™ Uniboot Patch Cable, OM3, LC/UPC to LC/UPC, 2.0 mm PVC, 5 m / 16.4 ft Per Each

Cleerline UOM3LCLC05m-UPC SSF™ Uniboot Patch Cable, OM3, LC/UPC to LC/UPC, 2.0 mm PVC, 5 m / 16.4 ft Per Each

Product Details

Cleerline Uniboot Patch Cords provide reliable, high-density duplex LC connectivity for data centers, crowded enclosures and other applications with limited space and access. They feature two fiber optic strands in a single flexible 2.0mm round riser-rated jacket and a single connector housing both LC connectors.

Available in off-the-shelf multimode OM3 and single-mode constructions, Cleerline Uniboot Patch Cords feature a removable cover allowing easy polarity adjustments without tools or adapters. Simply rotate the connector 180 degrees to select either A-to-A or A-to-B polarity.

Additionally, the connectors also include a built-in pull bar allowing quick connector changes in tight spaces and robust strain-relief for long-term performance.

Cleerline Uniboot Patch Cords are ideal for cramped rack-mount and wall-mount enclosures, significantly reducing cable clutter. Their single jacket design increases space, improving cooling for high-density applications.

Don't see your required patch cord configuration above? Use our Custom Patch Cord Builder to check inventory or quote a custom configuration.

Features

• Engineered for reliable, high-density duplex LC connectivity
• Ideal for data centers, crowded enclosures and other applications with limited space and access
• Two fiber optic strands in a single flexible 2.0mm round jacket
• Duplex LC connectivity
• In-wall riser-rated
• Available in multimode OM3 and single-mode fiber
• Polarity coded connectors for identification
• Removable cover allowing easy polarity adjustments without tools or adapters
• Built-in pull bar allowing quick connector changes
• Robust built-in strain-relief
• Available in factory-terminated lengths from 0.5 to 20m (1.6ft to 65ft)
• TIA color-coded
• Custom lengths and configurations available upon demand

Downloads

Spec Sheet
