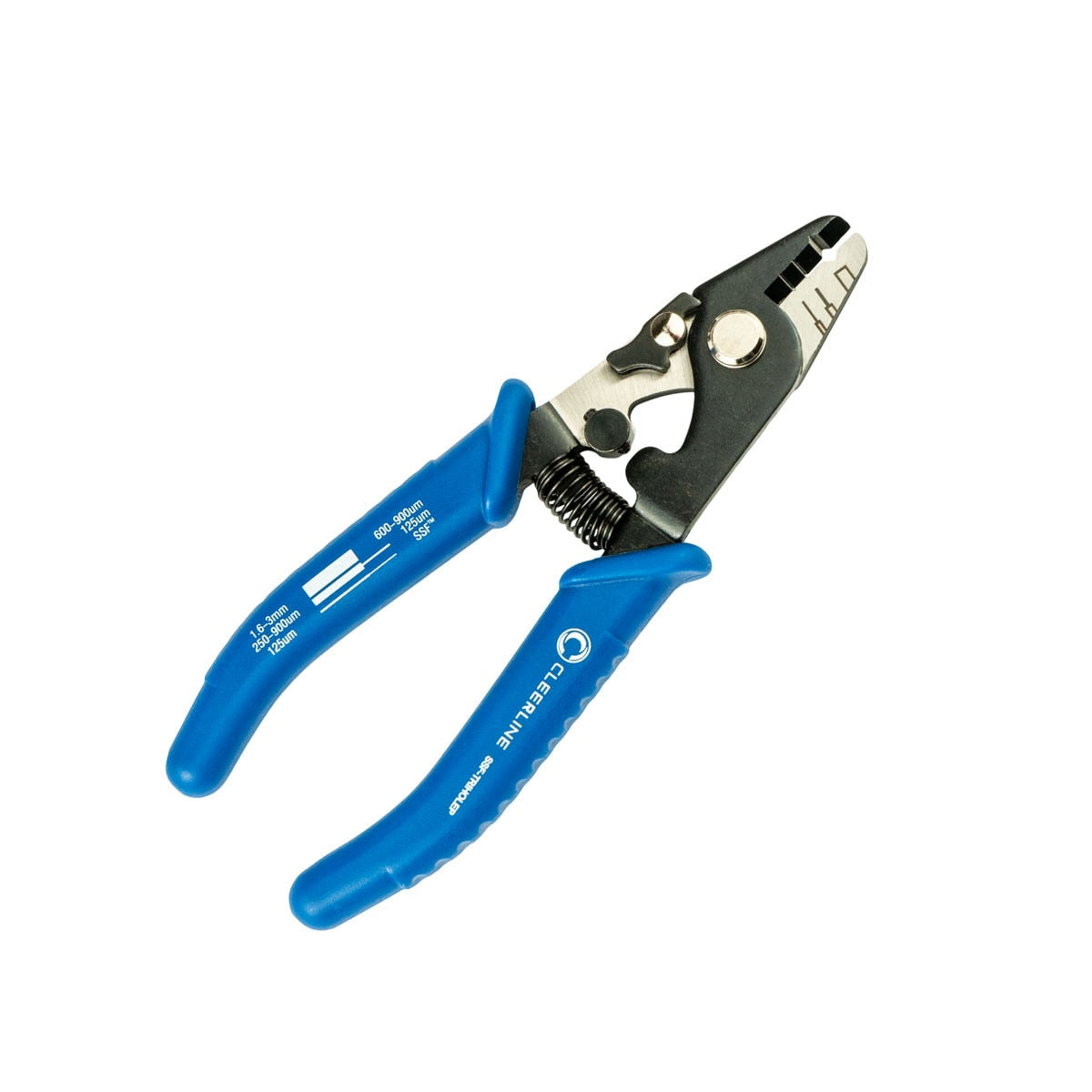

Cleerline SSF-TRIHOLEP SSF fiber optic strippers with polymer stripping opening Per Each

Cleerline SSF-TRIHOLEP SSF fiber optic strippers with polymer stripping opening Per Each

Product Details

The Cleerline Tri-Hole Fiber Strippers is an essential tool for the preparation of Cleerline SSF™ fiber for fusion splicing.

Unlike the basic Cleerline SSF-TRIHOLE Strippers that are used for cable jacket removal and general mechanical connector termination, these advanced Tri-Hole Strippers specifically remove the patented SSF polymer coating that's integral to SSF fiber. Successful fusion splicing requires the removal of the SSF polymer, and failure to do so will compromise the splice.

Enter the Cleerline SSF-TRIHOLEP.... Three built-in grooves quickly and easily remove outer cable jackets up to 3.0mm, inner strand buffers from 250µm to 900µm, and the inner SSF polymer at the 125µm level.

The Cleerline Tri-Hole Fiber Strippers are compatible with all Cleerline SSF cables, including multimode and single-mode constructions.

Features

• Convenient three-hole design
• Required cable preparation tool for preparing Cleerline SSF fiber for fusion splicing
• Large hole removes cable jackets from 1.6mm to 3.0mm
• Middle hole removes strand buffers from 250µm to 900µm
• Small hole removes SSF polymer at the 125µm level
• Precision construction won't nick or scratch fiber strands
• Ergonomic handle
• Includes cleaning brush for maintenance

Downloads

Spec Sheet
