Cleerline SSF-TKITE-200 Cleerline Basic Fiber Testing Kit Per Each

Cleerline SSF-TKITE-200 Cleerline Basic Fiber Testing Kit Per Each

Product Details

The Cleerline Fiber Optic Testing and Troubleshooting Kit provides basic optical link testing and signal qualification for single-mode and multimode cables.

The easy-to-use kit includes an optical power meter and two optical light sources -- one for single mode fiber and one for multimode fiber -- allowing technicians and installers to verify a wide range of signal wavelengths while calculating optical power loss in decibels (dB).

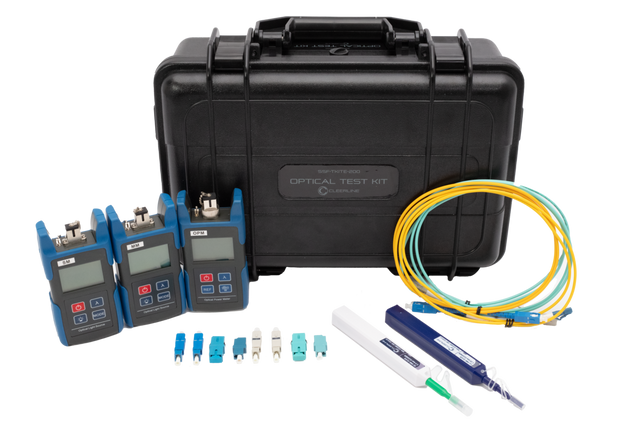

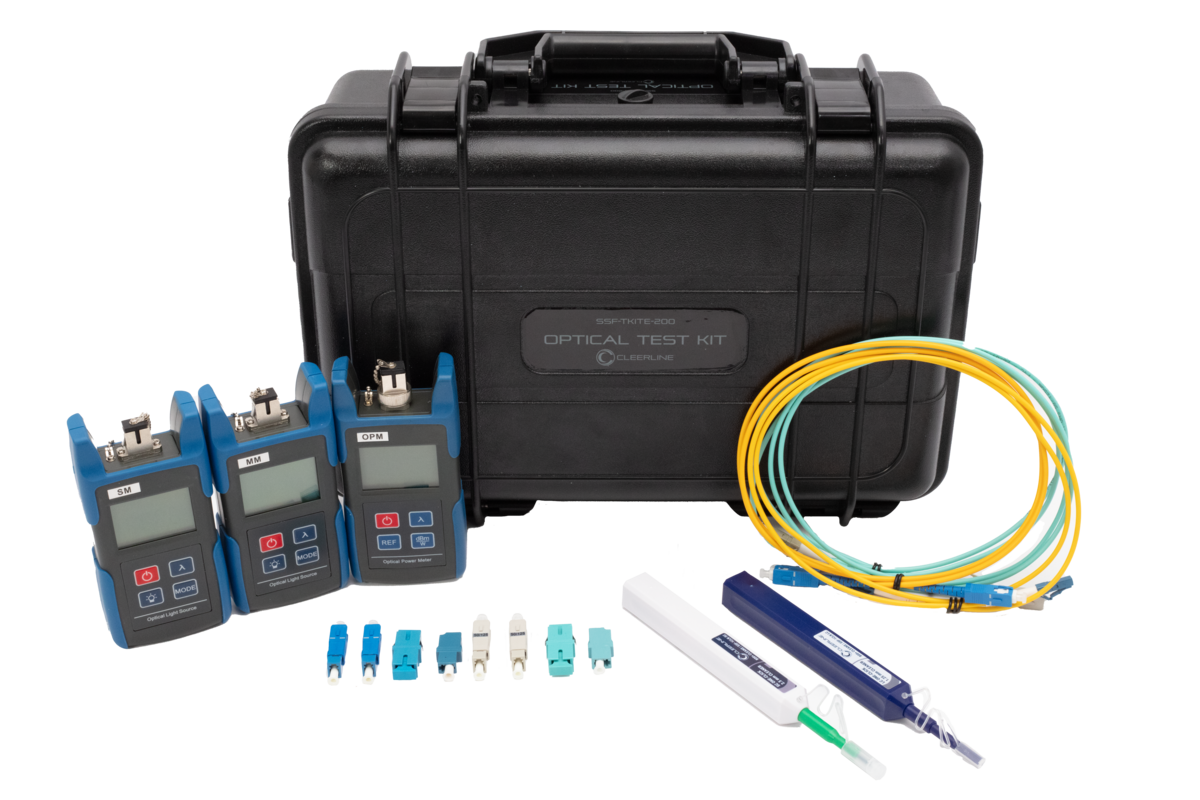

In addition to the power meter and optical light sources, the kit also includes reference cables, couplers, adapters and cleaning pens packed in a durable plastic case.

Used properly, the Fiber Optic Testing and Troubleshooting Kit is an essential tool for ensuring fiber cable and connector integrity, optical connection cleanliness and overall connection loss.

Features

• All-in-one testing and troubleshooting kit for single-mode and multimode fiber
• Easy operation and signal power referencing
• Includes optical power meter, single mode light source (signal generator) and multimode light source (signal generator)
• Includes reference cables, couplers, adapters, pen-style fiber cleaners and carrying case
• Supports wavelengths of 850, 1300, 1310 and 1550nm
• 70 dB testing range
• Meter and light sources feature convenient backlit LCD display and native SC connections -- kit includes LC style adapters
• Meter and light source require 3x AAA batteries (not included) and feature auto-shut function for extended battery life

Downloads

• SSF-TKITE-200 Technical Specifications
• SSF-TKITE-200 Manual
• SSF-TKITE-200 Quick Start Instructions
