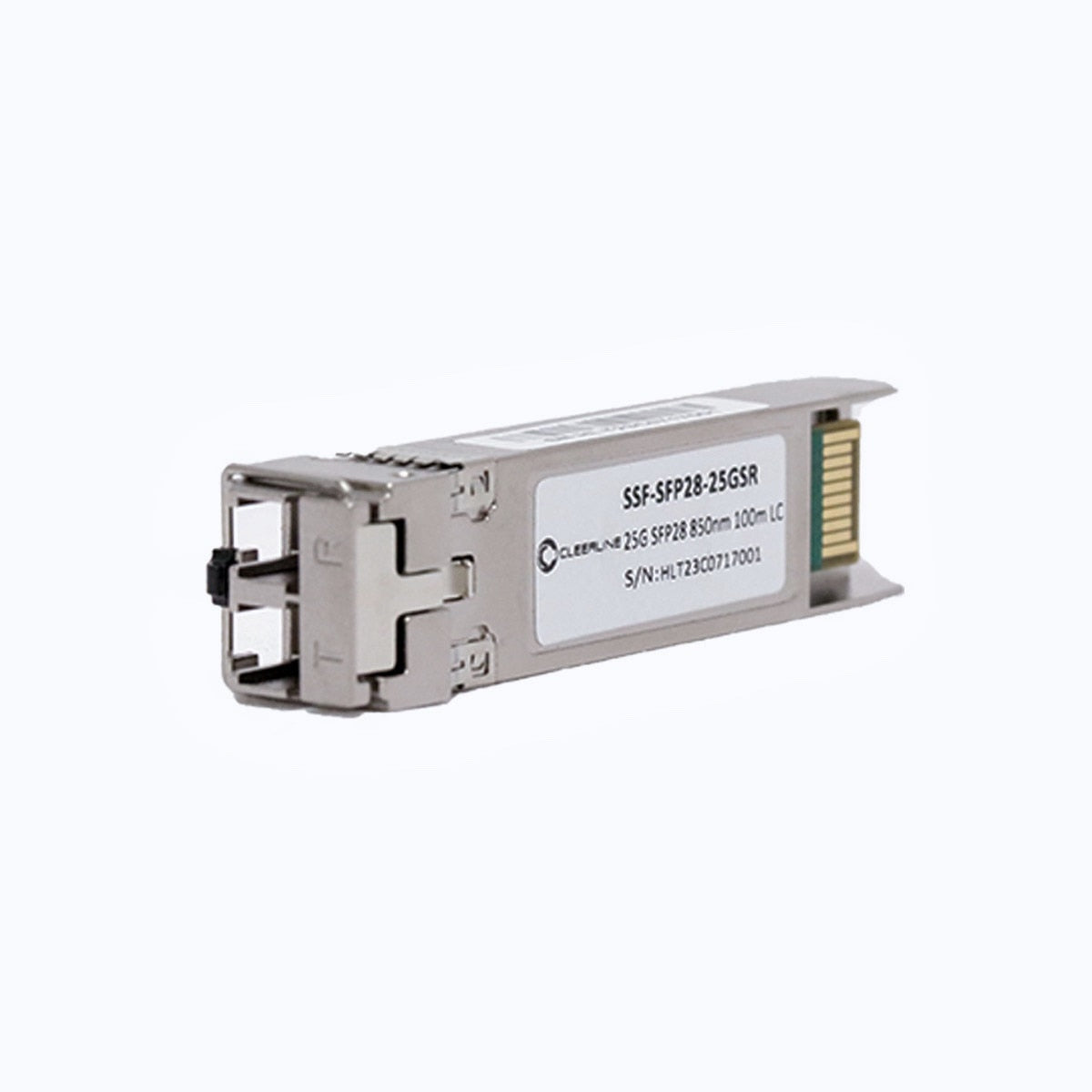

Cleerline SSF-SFP28-25GSR 25G SFP28 SR transceiver MM 850nm, 100m reach, Dual LC Per Each

Cleerline SSF-SFP28-25GSR 25G SFP28 SR transceiver MM 850nm, 100m reach, Dual LC Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 25G SFP28 Transceivers transmit signals up to 100m (328ft) over multimode OM4 fiber and 70m (230ft) over multimode OM3 fiber at 850nm wavelengths. They require a duplex LC connection and support data rates up to 25G.

Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.

Features

• SFP28 MSA compliant
• 25GBase-SR compliant
• Backwards compatible with 10G SFP+
• 850nm wavelength
• Transmit up to 100m (328ft) over two multimode OM4 fibers
• Transmit up to 70m (230ft) over two multimode OM3 fibers
• Duplex LC connection
• 0 to 70°C (32 to 158°F) operating temperature
• 1.0W maximum power consumption
• Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
