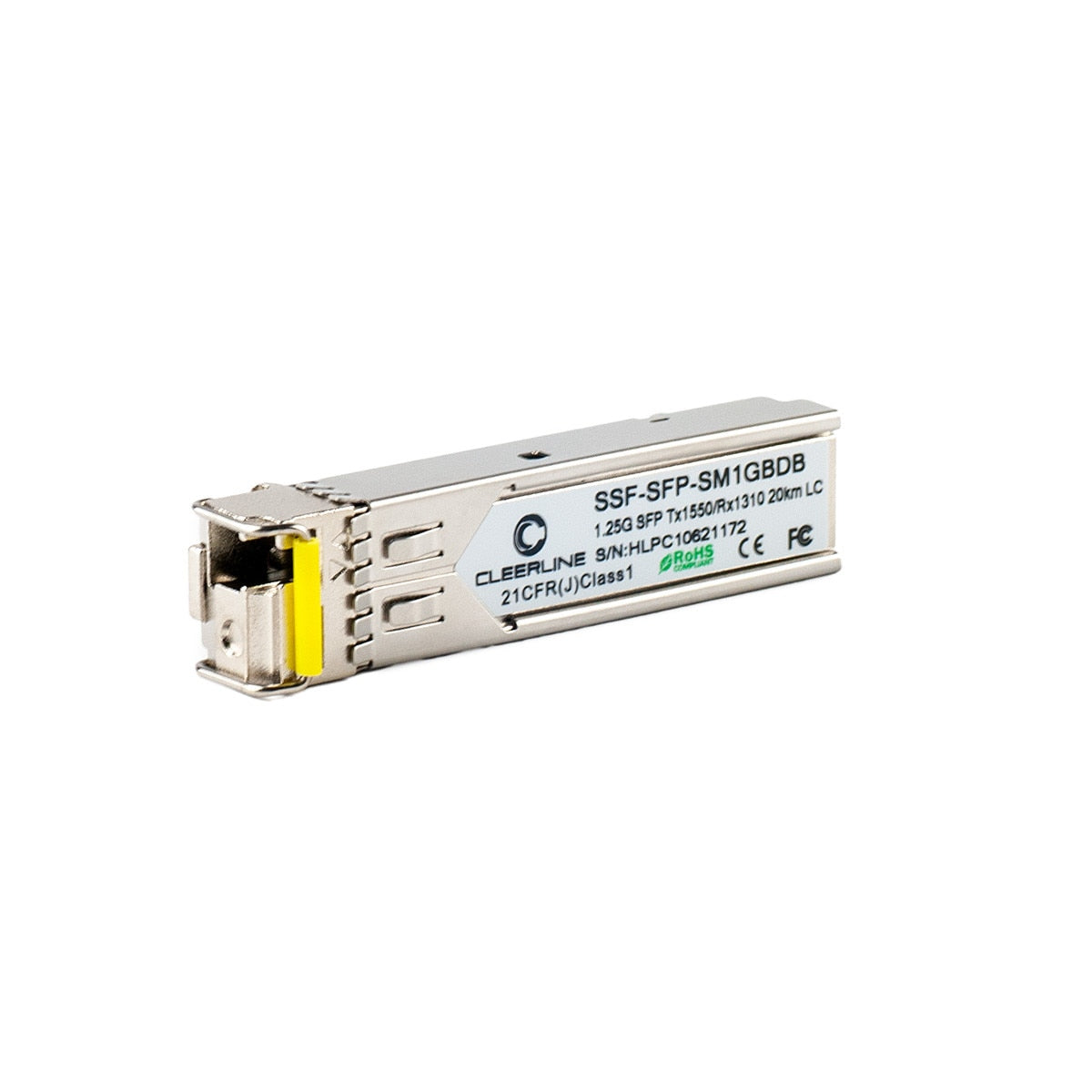

Cleerline SSF-SFP-SM1GBDB 1.25G SFP transceiver SM BiDi T:1550/R:1310nm, 20Km max reach, w/DDM Per Each

Cleerline SSF-SFP-SM1GBDB 1.25G SFP transceiver SM BiDi T:1550/R:1310nm, 20Km max reach, w/DDM Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 1G BiDi SFP Transceivers transmit signals up to 20km (12.4 miles) over single-mode fiber at 1310nm and 1550nm wavelengths. By leveraging two wavelengths (known as WDM technology), BiDi Transceivers will simultaneously send and receive signals over a single fiber optic strand.

They require a simplex LC connection and support data rates up to 1.25G.

Please note: two matching transceivers are required for reliable operation -- one on the source end (A) and one on the destination end (B).

Features

• SFP MSA compliant
• 1000Base-BX compliant
• MSA SFF-8472 compliant
• 1310nm and 1550nm wavelengths
• Transmit up to 20km (12.4 miles) over a single single-mode fiber
• Simplex LC connection
• Compatible with SONET OC-24-LR-1
• Digital Diagnostic Monitoring (DDM)
• 0 to 70°C (32 to 158°F) operating temperature
• Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
