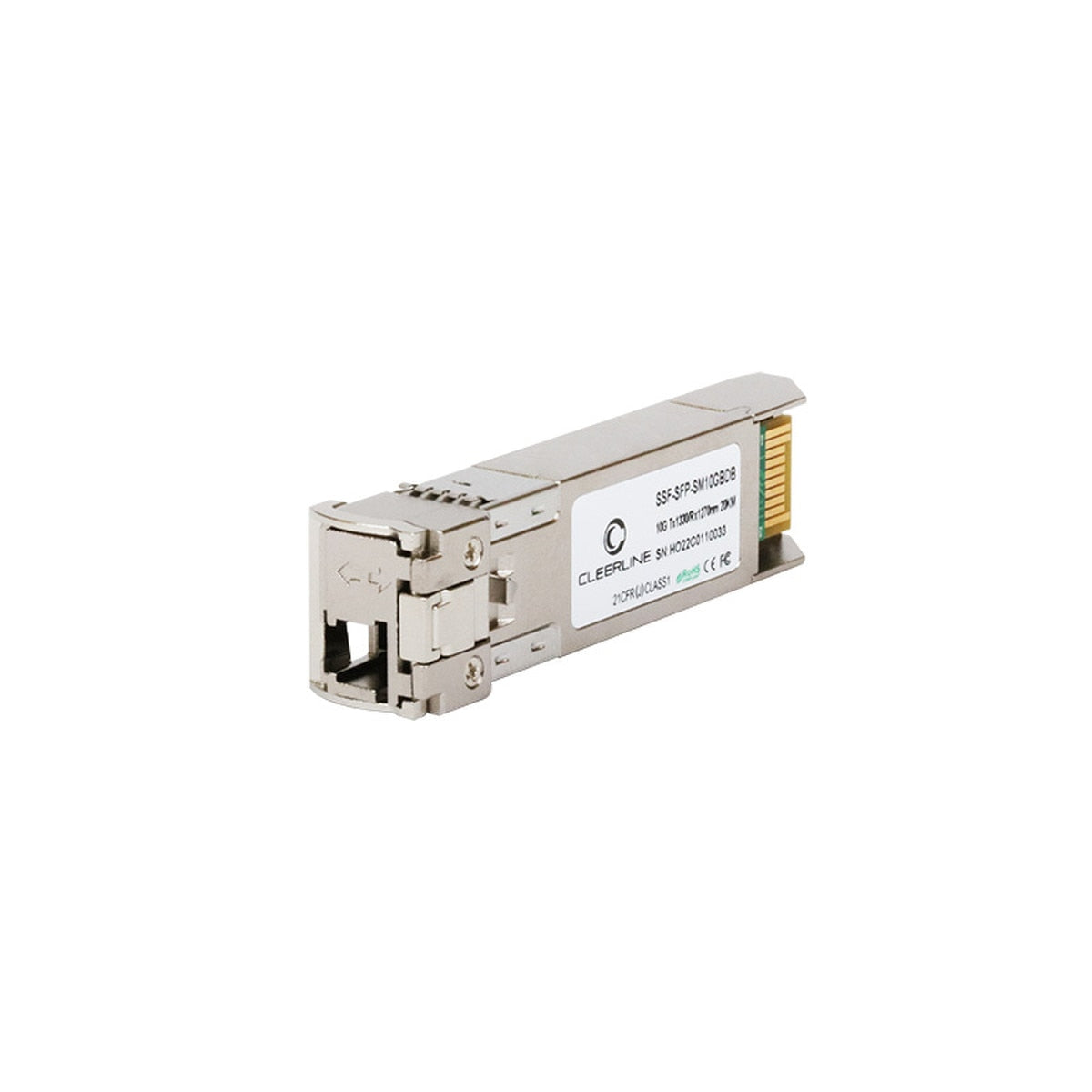

Cleerline SSF-SFP-SM10GBDB 10G SFP+ transceiver SM BiDi T:1330/R:1270nm, 20Km max reach Per Each

Cleerline SSF-SFP-SM10GBDB 10G SFP+ transceiver SM BiDi T:1330/R:1270nm, 20Km max reach Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 10G BiDi SFP+ Transceivers transmit signals up to 20km (12.4 miles) over single-mode fiber at 1270nm and 1330nm wavelengths. By leveraging two wavelengths (known as WDM technology), BiDi Transceivers will simultaneously send and receive signals over a single fiber optic strand.

They require a simplex LC connection and support data rates up to 10G.

Please note: two matching transceivers are required for reliable operation -- one on the source end (A) and one on the destination end (B).

Features

• SFP+ MSA compliant
• 10GBase-LR and 10GBase-LW compliant
• MSA SFF-8431 compliant
• 1270nm and 1330nm wavelengths
• Transmit up to 20km (12.4 miles) over a single single-mode fiber
• Simplex LC connection
• 0 to 70°C (32 to 158°F) operating temperature
• Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
