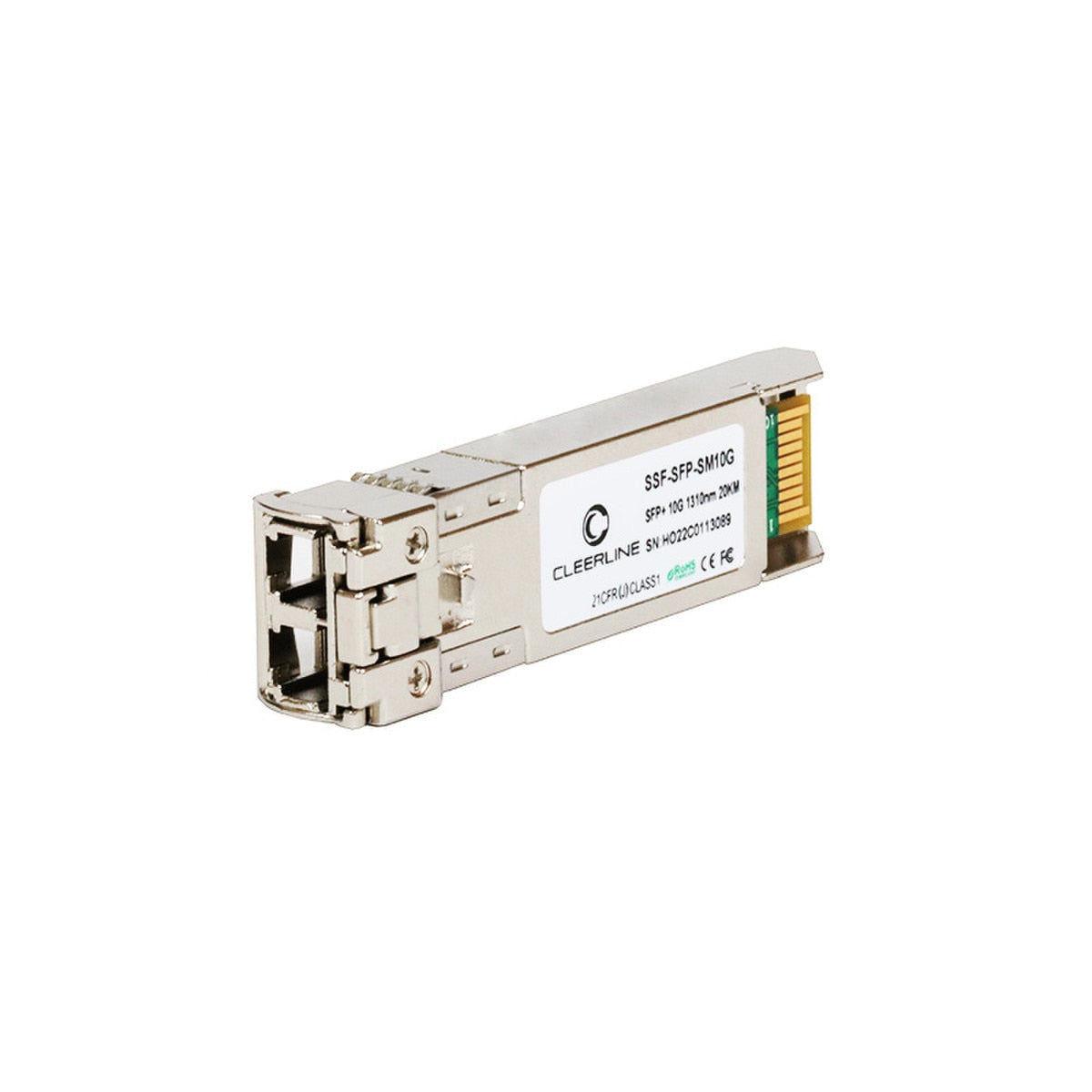

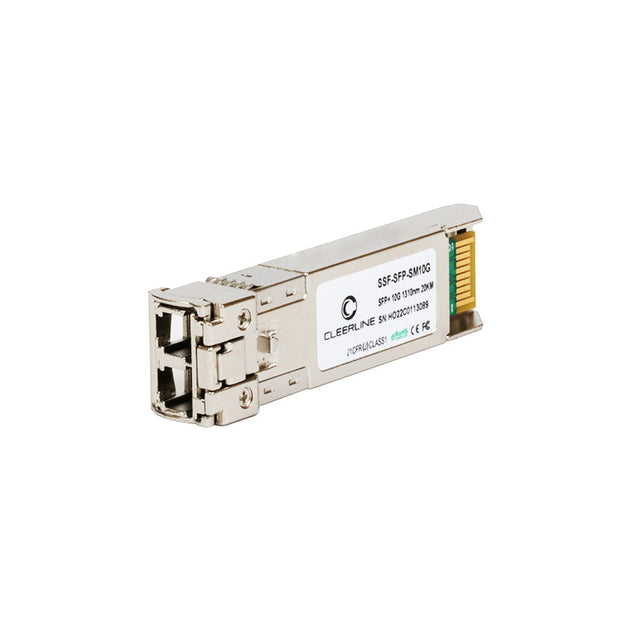

Cleerline SSF-SFP-SM10G 10G SFP+ transceiver SM 10GBase-LR, 1310nm, 20Km max reach Per Each

Cleerline SSF-SFP-SM10G 10G SFP+ transceiver SM 10GBase-LR, 1310nm, 20Km max reach Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 10G SFP+ Transceivers transmit signals up to 20km (12.4 miles) over single-mode fiber at 1310nm wavelengths. They require a duplex LC connection and support data rates up to 10G.

Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.

Features

• SFP+ MSA compliant
• 10GBase-LR compliant
• MSA SFF-8431 compliant
• 1310nm wavelength
• Transmit up to 20km (12.4 miles) over two single-mode fibers
• Duplex LC connection
• 0 to 70°C (32 to 158°F) operating temperature
• 1500mW maximum power consumption
• Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
