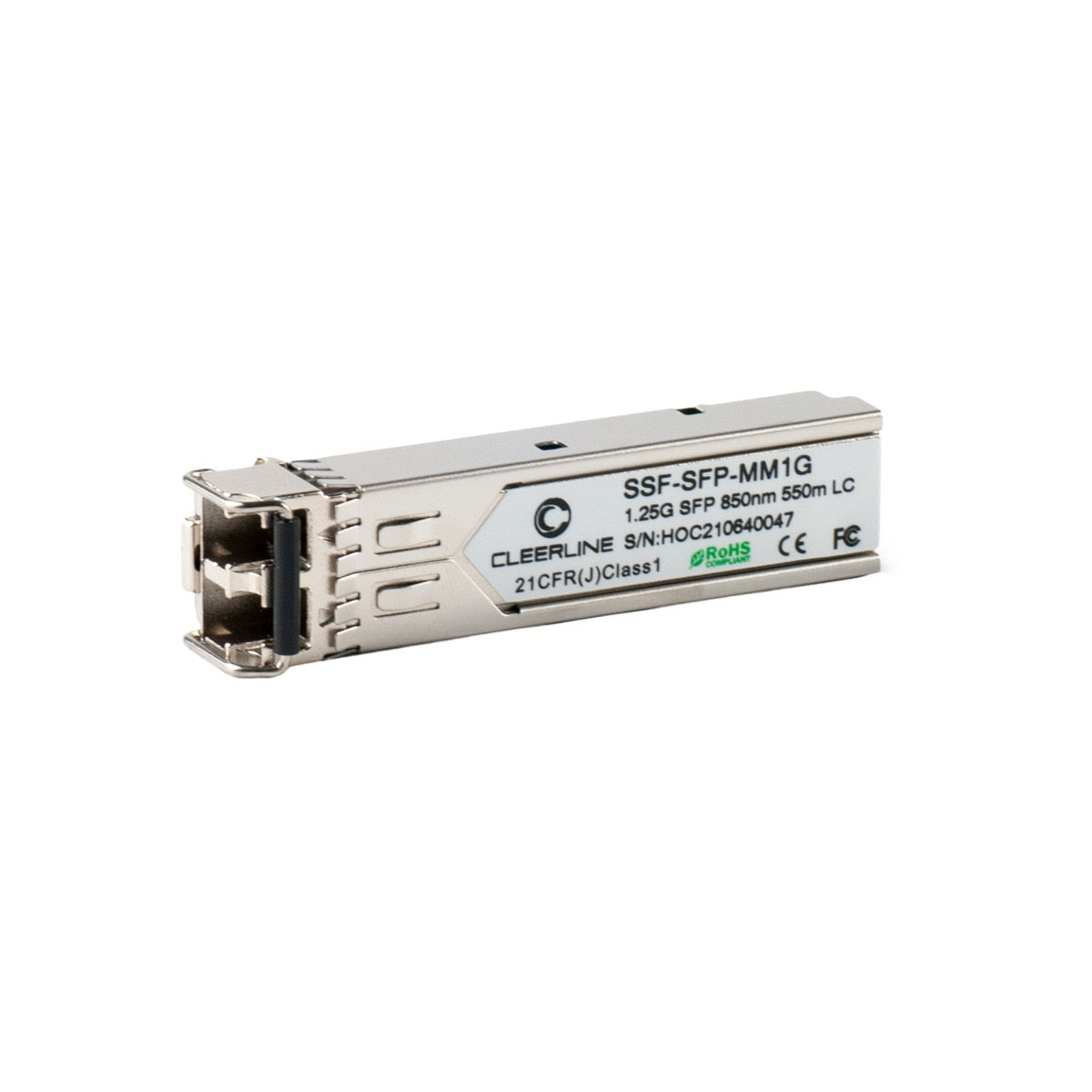

Cleerline SSF-SFP-MM1G 1.25G SFP transceiver MM 1000Base-SX, 850nm, 550m max reach, w/DDM Per Each

Cleerline SSF-SFP-MM1G 1.25G SFP transceiver MM 1000Base-SX, 850nm, 550m max reach, w/DDM Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 1G SFP Transceivers transmit signals up to 550m (1,804ft) over multimode fiber at 850nm wavelengths. They require a duplex LC connection and support data rates up to 1.25G.

Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.

Features

• SFP MSA compliant
• 1000Base-SX compliant
• MSA SFF-8472 compliant
• 850nm wavelength
• Transmit up to 550m (1,804ft) over two multimode OM3 or OM4 fibers
• Transmit up to 275m (902ft) over two multimode OM1 fibers
• Duplex LC connection
• Digital Diagnostic Monitoring (DDM)
• -20 to 85°C (-4 to 185°F) operating temperature
• Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
