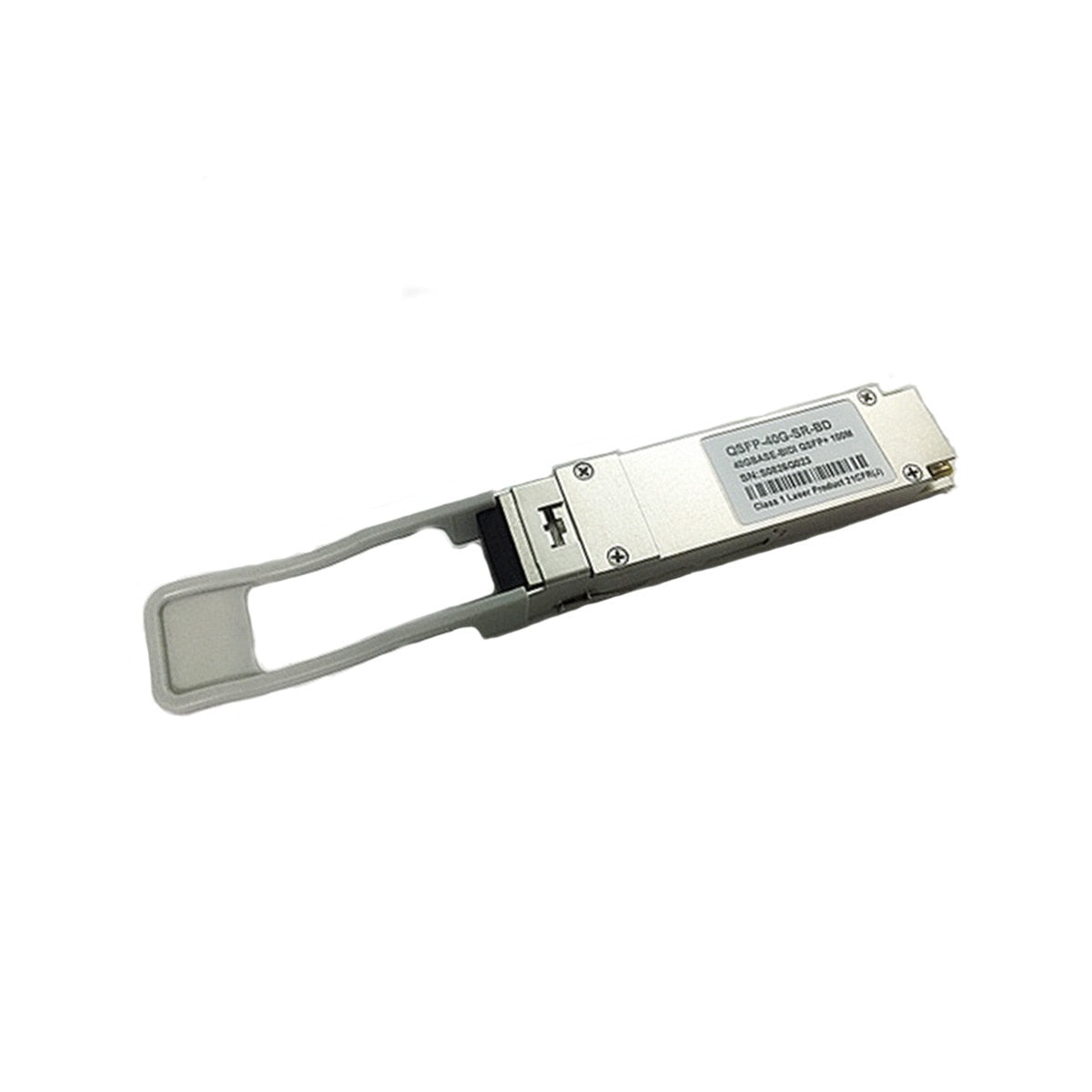

Cleerline SSF-QSFP-40GSR2 40G QSFP+ SR2 BiDi 100m/OM3 or 150m/OM4, Dual LC Per Each

Cleerline SSF-QSFP-40GSR2 40G QSFP+ SR2 BiDi 100m/OM3 or 150m/OM4, Dual LC Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 40G QSFP+ Transceivers transmit signals up to 150m (492ft) over multimode OM4 fiber and 100m (328ft) over multimode OM3 fiber. They require a duplex LC connection and support data rates up to 40G using bi-directional (BiDi) optics.

Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.

Features

• QSFP+ GSR2 MSA compliant
• SFF-8436 compliant
• BiDi operation with a nominal wavelength of 850nm and 900nm
• Transmit up to 150m (492ft) over two multimode OM4 fibers
• Transmit up to 100m (328ft) over two multimode OM3 fibers
• Duplex LC connection
• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
• 0 to 70°C (32 to 158°F) operating temperature
• 3.5W maximum power consumption
• Tested for compatibility with Cisco products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
