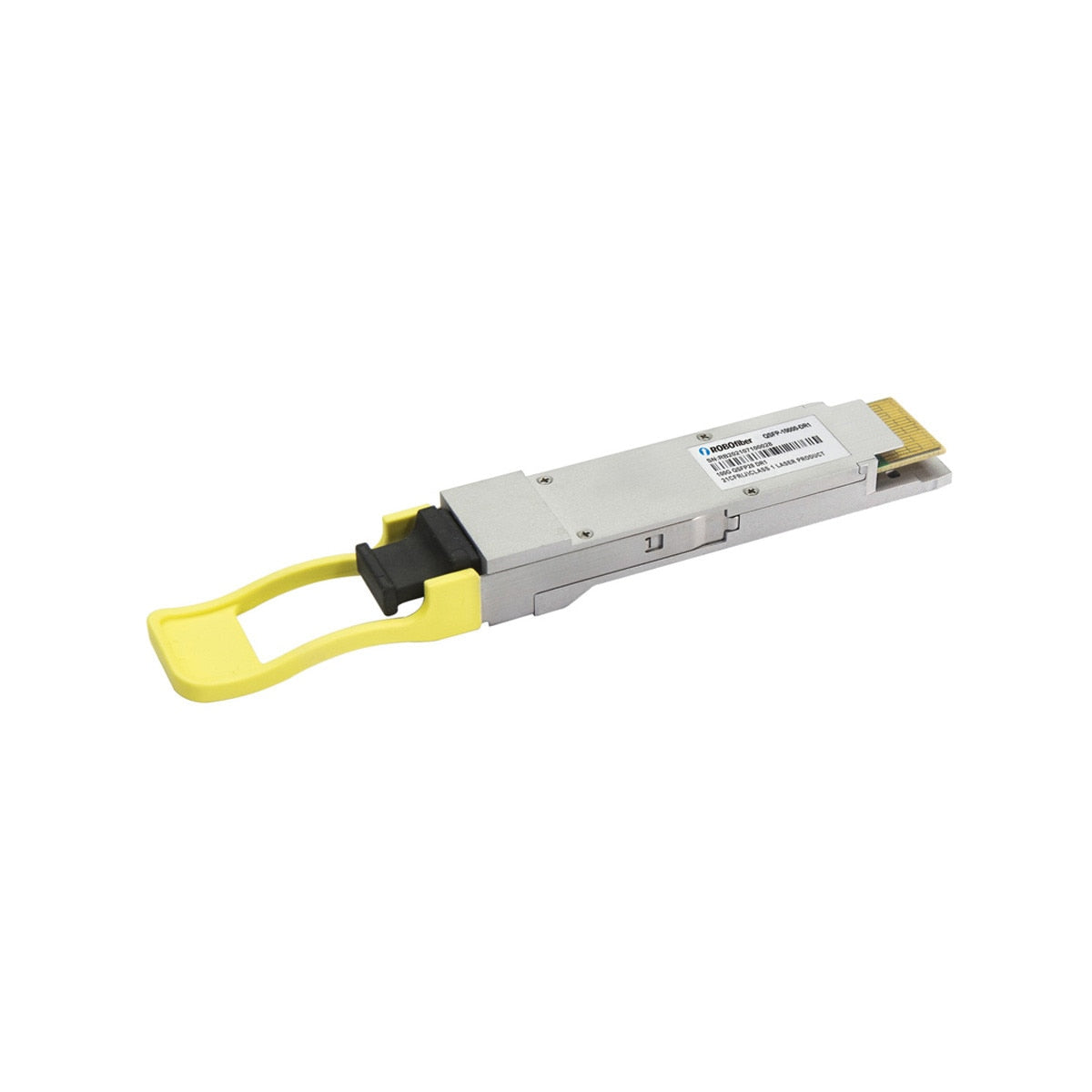

Cleerline SSF-QSFP-100GDR1 100G QSFP28 DR1 optical transceiver, SM, single lambda 1310nm, 500m reach, Dual LC Per Each

Cleerline SSF-QSFP-100GDR1 100G QSFP28 DR1 optical transceiver, SM, single lambda 1310nm, 500m reach, Dual LC Per Each

Product Details

Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.

Cleerline 100G QSFP28 Transceivers transmit signals up to 500m (1640ft) over single-mode fiber at 1310nm wavelengths. They require a duplex LC connection and support data rates up to 100G.

Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.

Features

• QSFP28 MSA compliant
• 100G Lamda MSA 100GBase-DR1 compliant
• 1310nm wavelength
• Transmit up to 500m (1640ft) with FEC over two single-mode fibers
• Duplex LC connection
• 103.125Gb/s aggregate bit rate
• 4x25G electrical interface (OIF CEI-28G-VSR)
• EML laser with 50Gbps PAM
• 0 to 70°C (32 to 158°F) operating temperature
• 4W maximum power consumption
• Tested for compatibility with Cisco, Arista, Juniper and Edge-Core products
• Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard

Downloads

Spec Sheet
