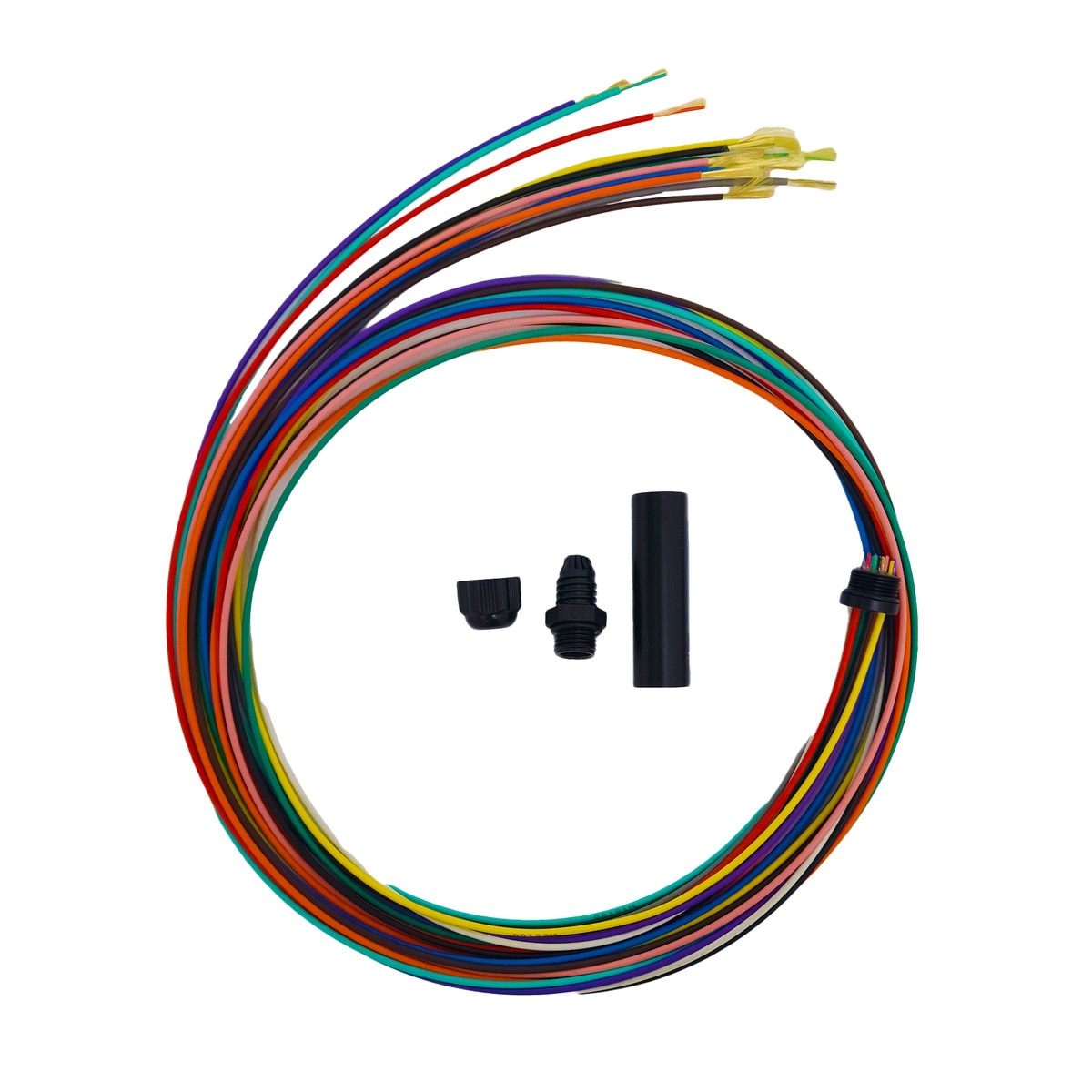

Cleerline SBOK1240M250 Cleerline™ 12 Fiber Spider Breakout Kit, 2 mm, 40” Legs, Accepts 250 µm Per Each

Cleerline SBOK1240M250 Cleerline™ 12 Fiber Spider Breakout Kit, 2 mm, 40” Legs, Accepts 250 µm Per Each

Product Details

Cleerline Fiber Optic Breakout Kits enable the fast and easy build-up of 250μm fibers. Breakout kits convert thin and fragile 250μm loose-tube fibers into protected 2.0mm buffered fibers, making them robust enough for direct termination with standard connectors, handling and patching. Ultimately, they protect delicate fibers from damage, improve cable management and lessen the need for patch panels, splice trays or splice cassettes.

Cleerline Breakout Kits include individually color-coded buffer tubes, a specially designed strain-relief grommet and an assembly housing that simply screws together without the need for epoxy or specialized crimp tools. They are compatible with any 250μm loose-tube multimode or single-mode cable, including SSF, BendSafe and traditional fiber constructions.

Features

• Build-up 250μm loose-tube fiber to a 2.0mm buffered jacket
• Available in 6 and 12 strand counts
• 40 inch (101.6cm) length
• Color-coded buffer tubes conform to TIA/EIA-568-B standards
• Assembly screws together without the need for epoxy or specialized crimp tools
• Specially designed strain-relief grommet
• Compatible with multimode and single-mode SSF, BendSafe and traditional fiber
