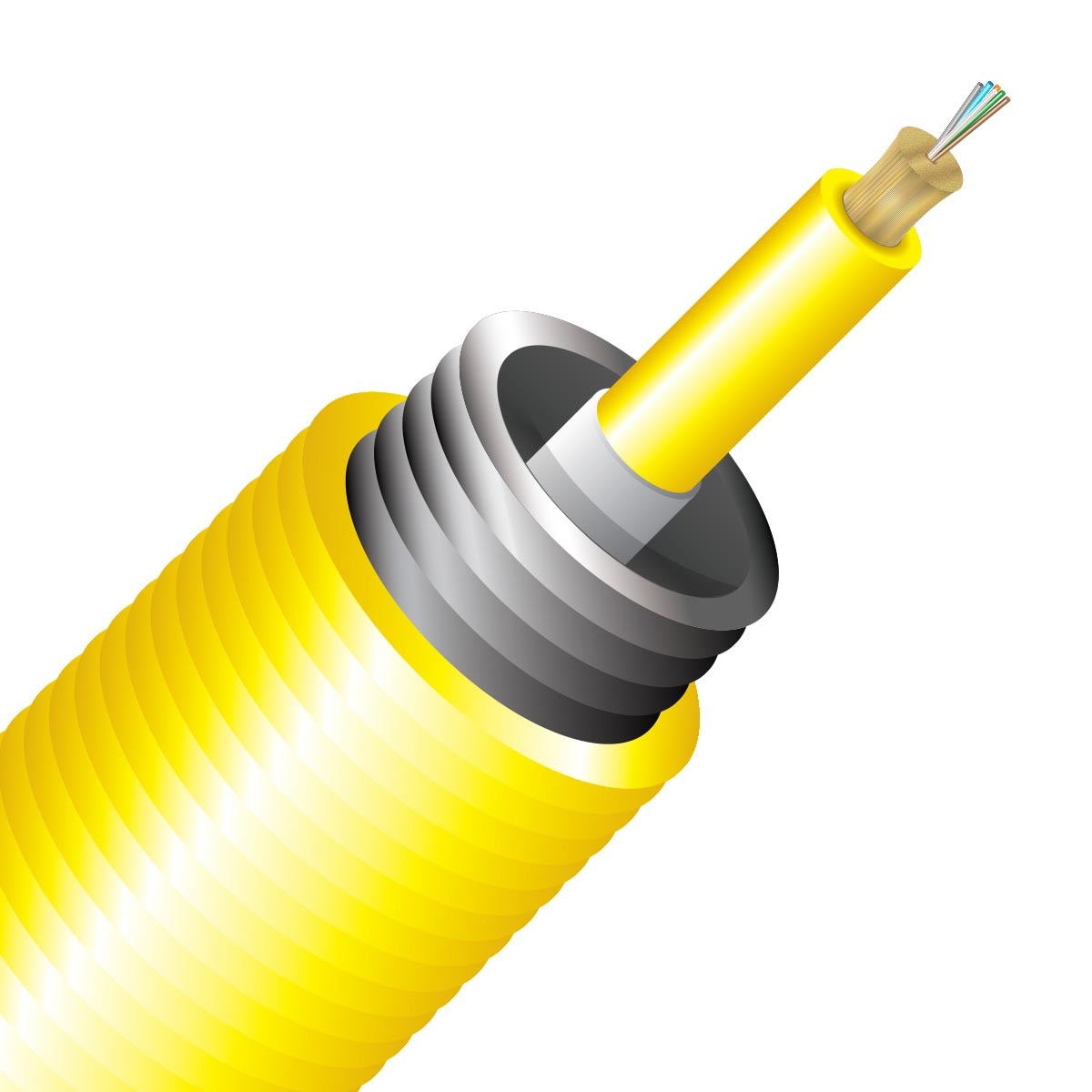

Cleerline 6IAD9125SMOS2P-B 6 Strand SSF™ Interlocking Armored Micro-Distribution LT, Plenum, 9/125, G657 A2/B2 OS2 Per FT

Cleerline 6IAD9125SMOS2P-B 6 Strand SSF™ Interlocking Armored Micro-Distribution LT, Plenum, 9/125, G657 A2/B2 OS2 Per FT

Product Details

Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

SSF Aluminum Interlocking Armored (AIA) Micro-Distribution Cable features spirally wrapped internal aluminum armoring which provides crush resistance and protection from rodents, abrasion and impact. A plenum indoor/outdoor rated jacket provides further protection from water, UV and temperature fluctuations.

Available multimode OM3, multimode OM4 and single-mode constructions, Cleerline AIA is ideal for harsh environments and mission-critical applications.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• Aluminum interlocking armor (AIA) construction
• Plenum indoor/outdoor rated jacket
• Available in multimode OM3, multimode OM4 and single-mode fiber
• Integrated armor provides protection from abrasion, impact and rodents
• Patented SSF coating provides optical strand protection
• 250µm loose tube micro-distribution subunits
• Compatible with all common connector systems
• Supports fusion splicing when used with SSF Tri-Hole Strippers ( SSF-TRIHOLEP)
• Sequential foot markings on jacket
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Custom configurations and constructions available upon request

Downloads

Spec Sheet
