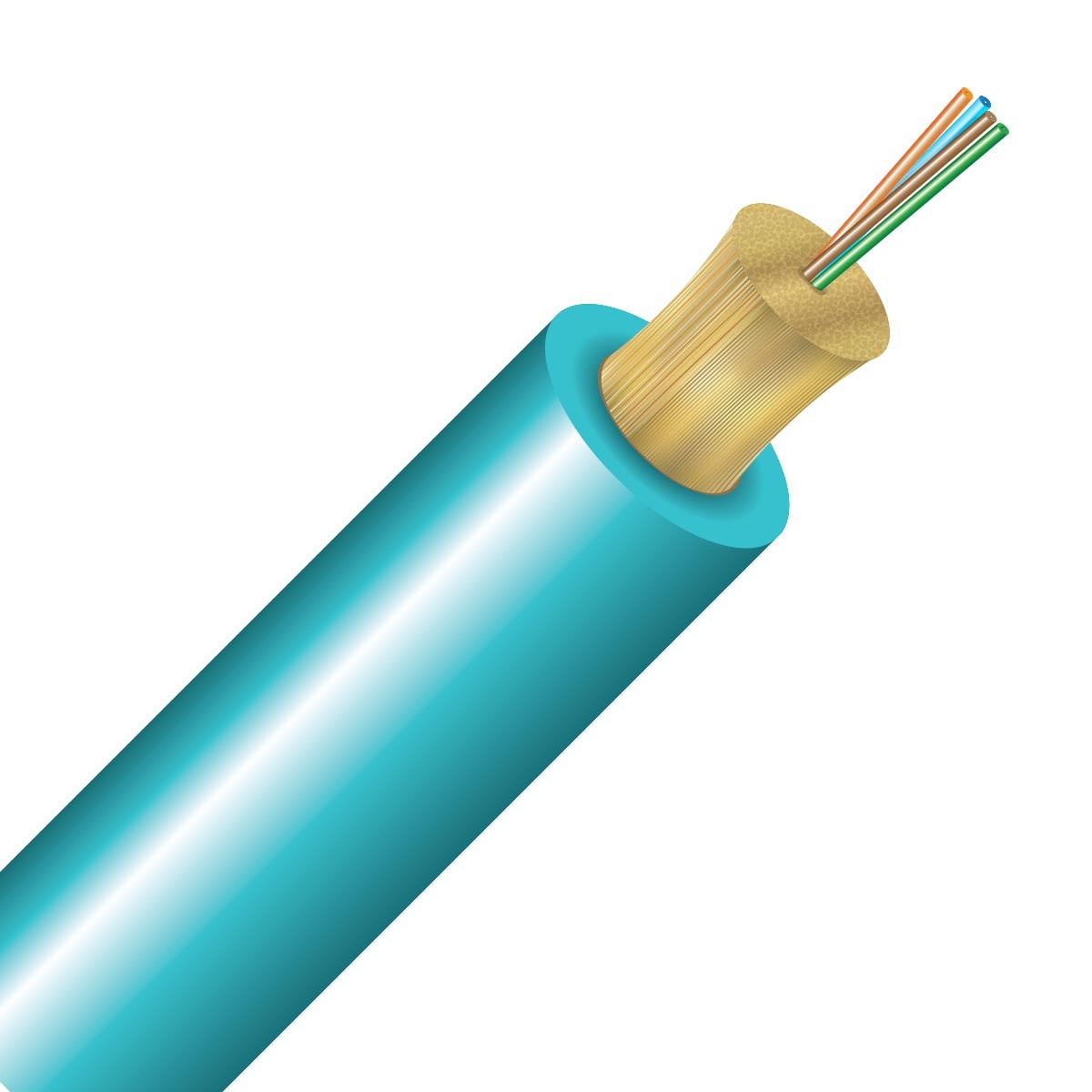

Cleerline 4D50125MOM3L 4 Strand SSF™ Micro-Distribution LT, LSZH-CPR B2ca I/O, 50/125, OM3 Per 1000ft Spool

Cleerline 4D50125MOM3L 4 Strand SSF™ Micro-Distribution LT, LSZH-CPR B2ca I/O, 50/125, OM3 Per 1000ft Spool

Product Details

Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

Cleerline Multimode OM3 Micro-Distribution Cables provide multi-strand fiber distribution for network, audio-visual and control applications. Available in a variety of strand counts and jacket constructions, Cleerline Micro-Distribution cables feature a loose tube construction with 250µm sub-units.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• Multi-strand multimode OM3 fiber
• Loose tube construction with 250µm sub-units
• Available in riser indoor, plenum indoor/outdoor and LSZH/CPR jacket ratings
• Constructed of premium SSF fiber
• Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
• Aqua and black jacket colors
• Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
• Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
• Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
• Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Sequential foot markings on jacket
• Custom configurations and constructions available upon request
